FRAME COVER (MODEL Z)

DR500 1982 (Z) USA (E03)

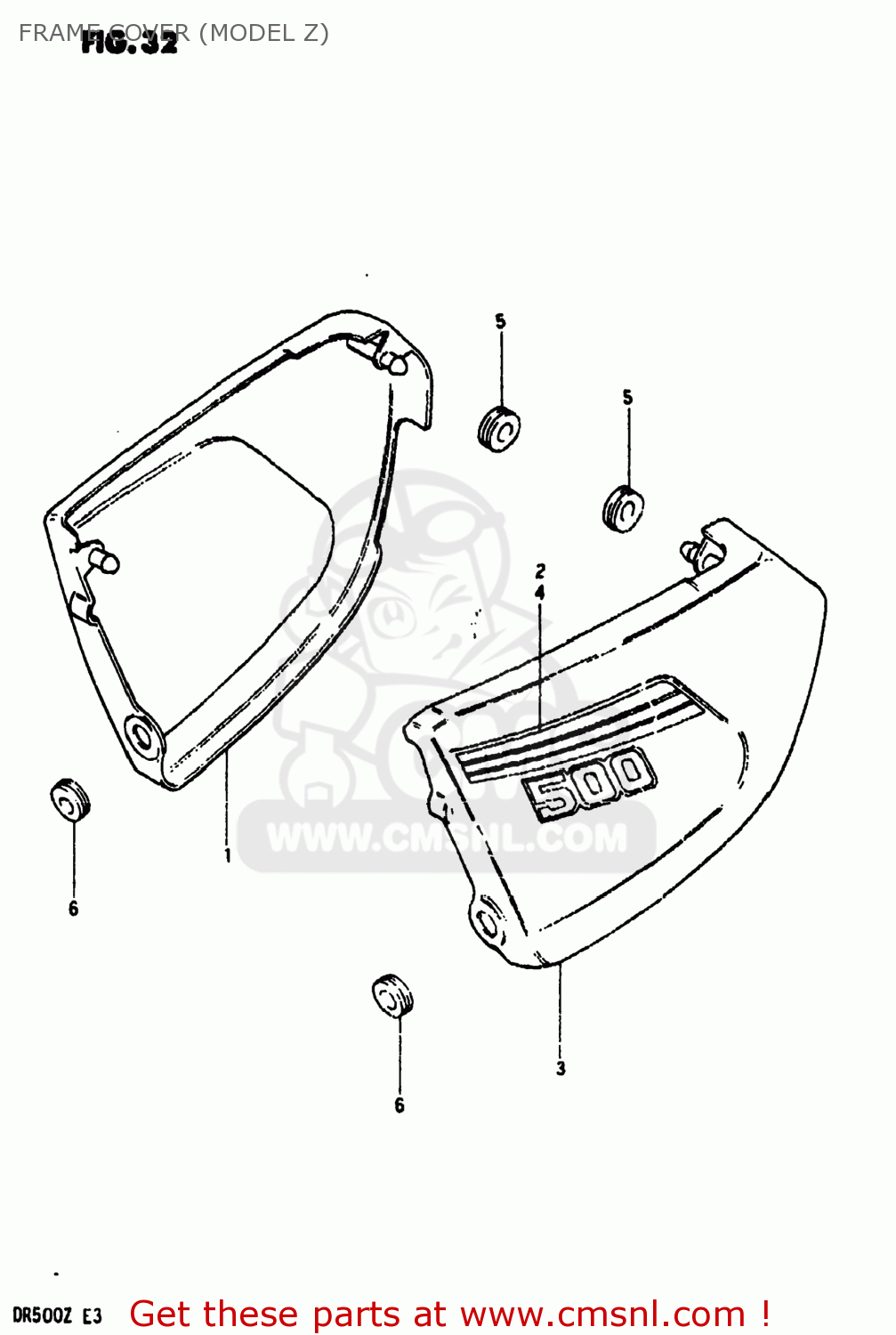

Frame cover (model z) diagram DR500 1982 (Z) USA (E03)

FRAME COVER (MODEL Z) DR500 1982 (Z) USA (E03)
FRAME COVER (MODEL Z) DR500 1982 (Z) USA (E03)
FRAME COVER (MODEL Z) DR500 1982 (Z) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
471113740110V
ref: 1
47111-37401
COVER,FRAME,RIGHT
€ 40.50
2
681363744083A
ref: 2
TAPE,FRAME COVER
€ 10.00
3
472113740210V
ref: 3
47211-37402
COVER,FRAME,LEFT
€ 83.50
4
681463744083A
ref: 4
TAPE,FRAME COVER
€ 13.00
5
0932008018
ref: 5
CUSHION
0932008018
€ 4.00
6
0932005006
ref: 6
09320-06504
CUSHION
0932005006
€ 4.00
