HANDLEBAR
DR500 1982 (Z) USA (E03)

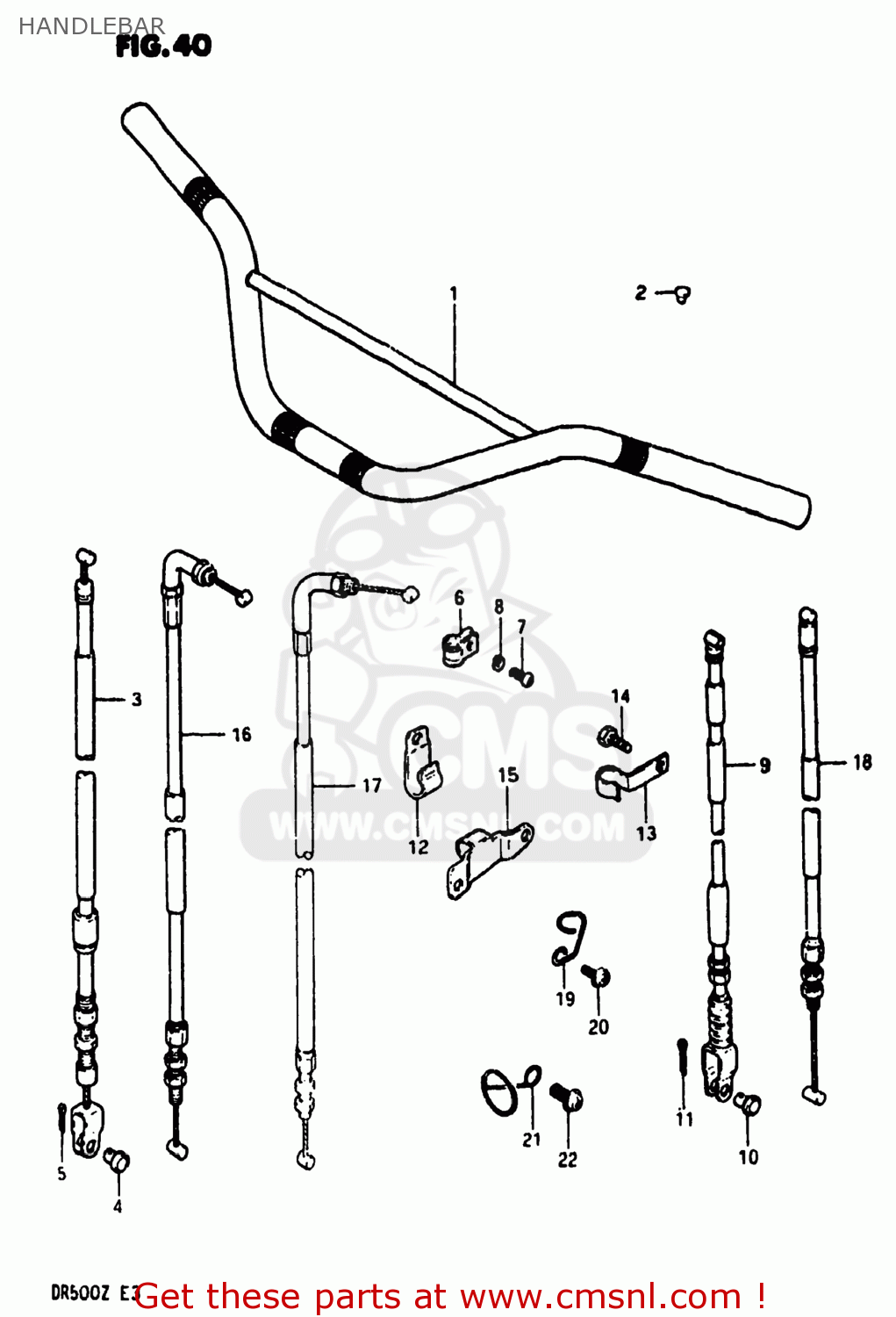

Handlebar diagram DR500 1982 (Z) USA (E03)
HANDLEBAR DR500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
561103740008C
ref: 1-1
HANDLEBAR
€ 29.50
1-2
5611037400291
ref: 1-2
56110-37440-291
HANDLEBAR
€ 37.50
2
0925009001
ref: 2
CAP(OD:14)
€ 1.00
3
5810037400
ref: 3
CABLE ASSY,FR BRAKE
€ 27.00
5
0411120158
ref: 5
04111-2015A
PIN
€ 1.50
6
0920005001
ref: 6
PIN(L:17.5)
€ 1.50
6
5862140401
ref: 6
GUIDE,CABLE
€ 3.50
7
0211206108
ref: 7
02112-06107
SCREW
€ 1.50
8
0832121068
ref: 8
08321-01067
LOCK WASHER
€ 2.50
9
5820037400
ref: 9
58200-37401
CABLE ASSEMBLY,CLUTCH
€ 32.50
10
0920006011
ref: 10
PIN(L:15)
€ 2.50
11
0411120158
ref: 11
04111-2015A
PIN
€ 1.50
12
0940300059
ref: 12
09404-08420
CLAMP
€ 3.50
13
5862637400
ref: 13
CLAMP,CLUTCH CABLE NO.1
€ 8.50
14
0110706108
ref: 14
01500-06107
BOLT
€ 2.00
15
5863437400
ref: 15
STOPPER,CLUTCH CABLE
€ 0.00
16
5830037400
ref: 16
CABLE ASSY,THROTTLE NO.1
€ 26.50
17
5830037410
ref: 17
CABLE ASSEMBLY,THROTTLE NO
€ 23.00
18
5890037400
ref: 18
CABLE ASSY,DECOMP
€ 18.50
19
5862117200
ref: 19
GUIDE
€ 5.50
20
0215206108
ref: 20
02142-0610A
SCREW
€ 2.00
21
5862137400
ref: 21
GUIDE,CABLE
€ 0.00
22
0215206128
ref: 22
02112-06127
SCREW, FRONT
€ 2.00
