CRANKCASE (MODEL Z)
DR500 1982 (Z) USA (E03)

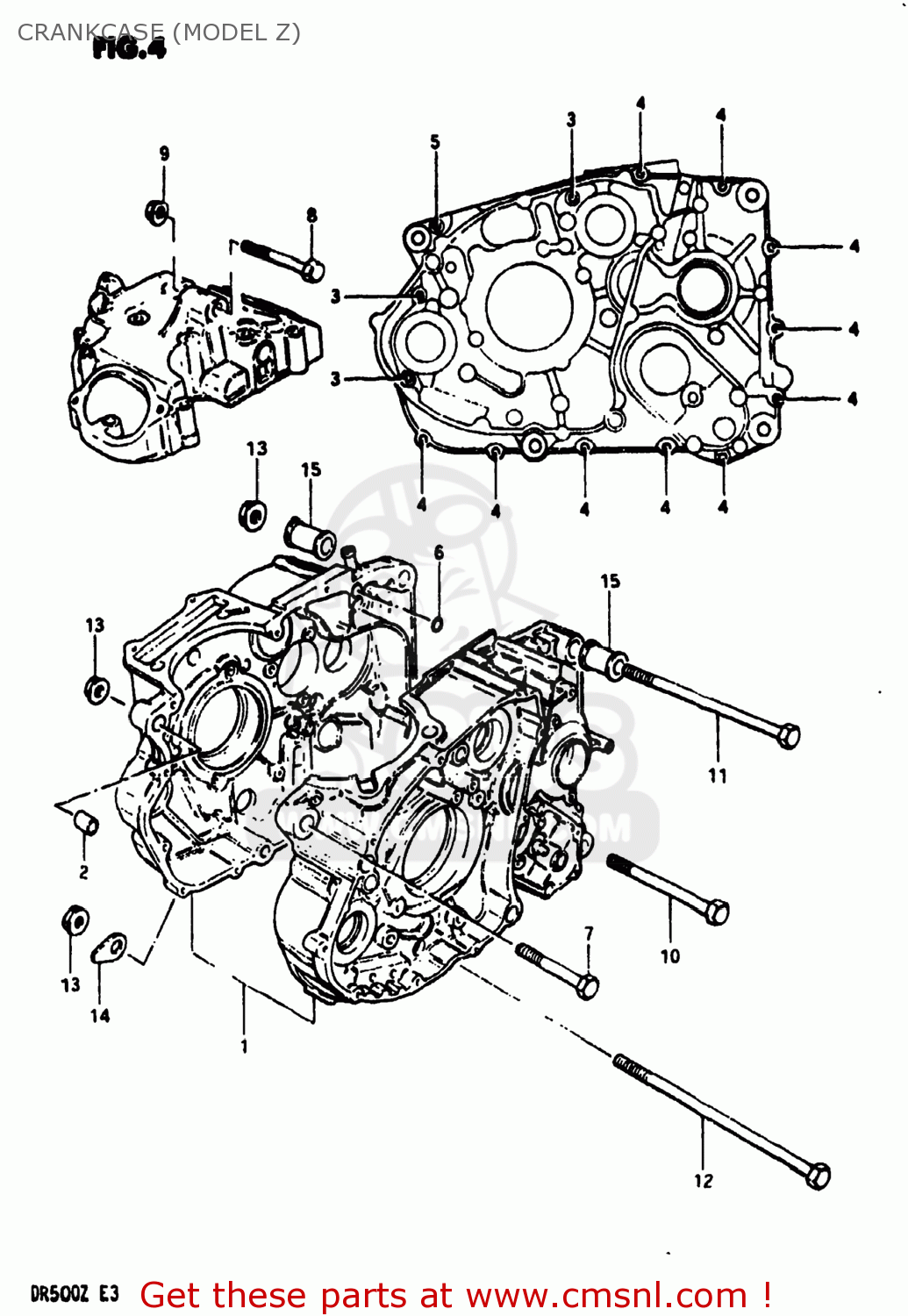

Crankcase (model z) diagram DR500 1982 (Z) USA (E03)
CRANKCASE (MODEL Z) DR500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130037410
ref: 1
CRANKCASE ASSEMBLY
€ 969.00
2
0920613001
ref: 2
04211-13189
PIN
€ 2.50
3
0154706608
ref: 3
01547-06607
BOLT
€ 2.50
4
0154706408
ref: 4
01547-06407
BOLT (6X40)
€ 2.50
5
0154706308
ref: 5
01547-06307
BOLT (6X30)
€ 2.50
6
0928009004
ref: 6
09280-09005
O-RING
€ 4.00
7
0910310033
ref: 7
BOLT(10X70)
€ 5.00
8
0151708508
ref: 8
01550-08507
BOLT
€ 3.50
9
0831931088
ref: 9
08319-3108A
NUT
€ 2.50
10
0910310034
ref: 10
BOLT
€ 3.50
11
0910310035
ref: 11
BOLT
€ 0.00
12
0910310036
ref: 12
BOLT
€ 4.00
13
0831931108
ref: 13
NUT
€ 3.00
14-1
0916910011
ref: 14-1
WASHER
€ 1.00
14-2
0916910012
ref: 14-2
WASHER
€ 1.00
15
1161032400
ref: 15
SPACER
€ 12.00
