REAR SWINGING ARM
DR500 1982 (Z) USA (E03)

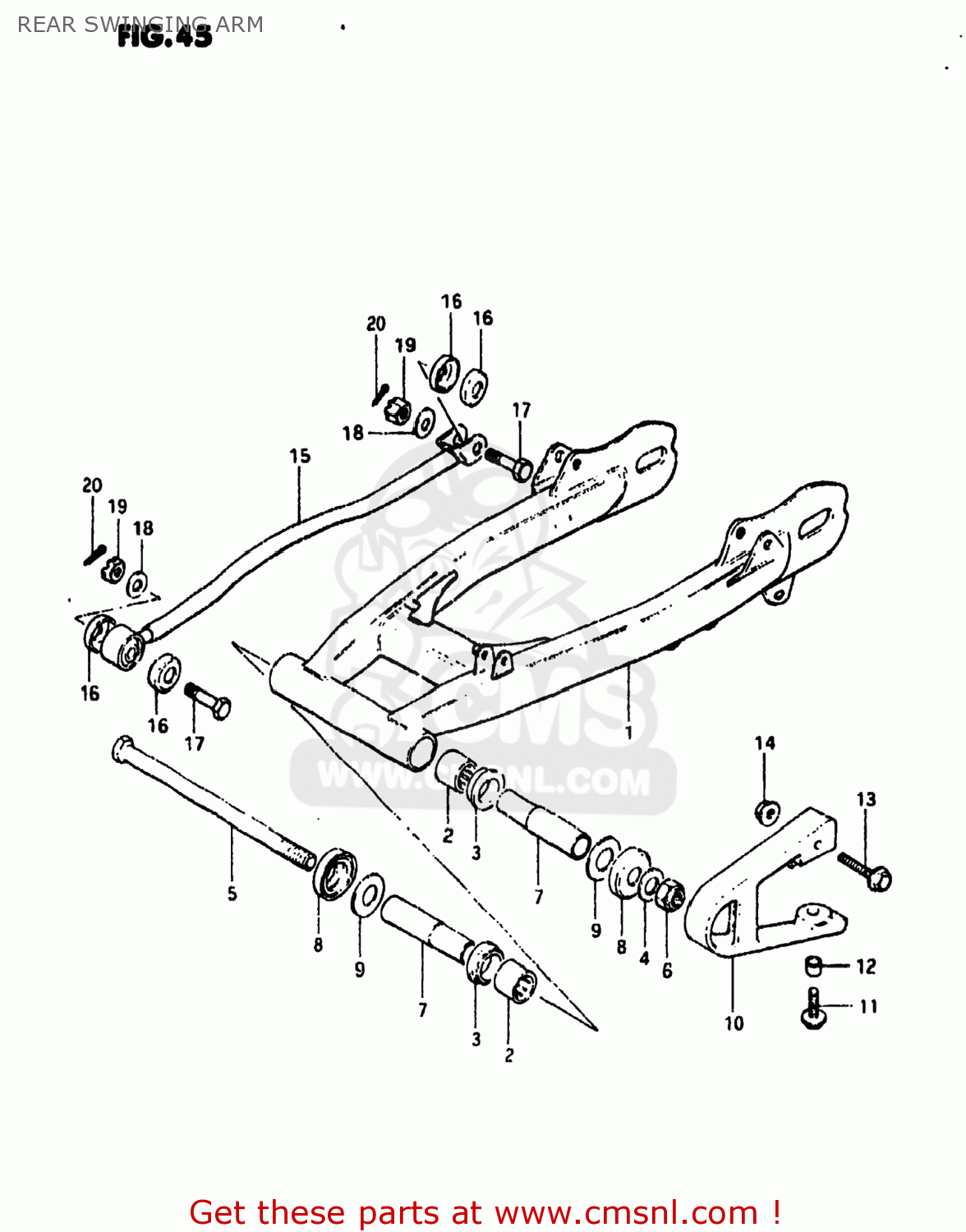

Rear swinging arm diagram DR500 1982 (Z) USA (E03)
REAR SWINGING ARM DR500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6110037870
ref: 1
SWING ARM ASSEMBLY,REAR
€ 156.50
2
0926320031
ref: 2
09263-20053
BEARING
€ 15.50
3
6126140402
ref: 3
61261-27C00
BUSHING,REAR SWING ARM PIVOT
€ 26.00
4
0832211168
ref: 4
08322-01167
WASHER
€ 2.00
5
6121137201
ref: 5
SHAFT,REAR SWING ARM
€ 33.00
6
0831921168
ref: 6
08319-2116A
NUT 16MM
€ 5.00
7-1
6125137400
ref: 7-1
61251-37401
SPACER,REAR SWING ARM
€ 17.50
7-2
6125137401
ref: 7-2
SPACER,REAR SWING ARM
€ 17.50
8
6126237400
ref: 8
COVER,REAR SWING ARM DUST
€ 9.00
9
0821116322
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.50
10
6127337400
ref: 10
BUFFER,CHAIN TOUCH DEFLECTOR
€ 22.50
11
6127537400
ref: 11
SCREW,CHAIN TOUCH DEFEND
€ 1.50
12
0918005015
ref: 12
09180-05046
SPACER (5.5X8X4)
€ 3.00
13
0151706458
ref: 13
01550-06457
BOLT,UNDER
€ 2.50
14
0831931068
ref: 14
08319-31067
NUT
€ 2.50
15-1
643103740008C
ref: 15-1
TORQUE LINK,REAR
€ 21.00
15-2
6431037400019
ref: 15-2
TORQUE LINK,REAR
€ 0.00
16
6433940410
ref: 16
6433940410
17
0910108003
ref: 17
BOLT 8X28
€ 2.00
18
0832211088
ref: 18
08322-01087
WASHER
€ 2.00
19
0831441088
ref: 19
08314-4008B
NUT 8MM
€ 2.50
20
0411120208
ref: 20
04111-2020A
PIN 20X20
€ 1.50
