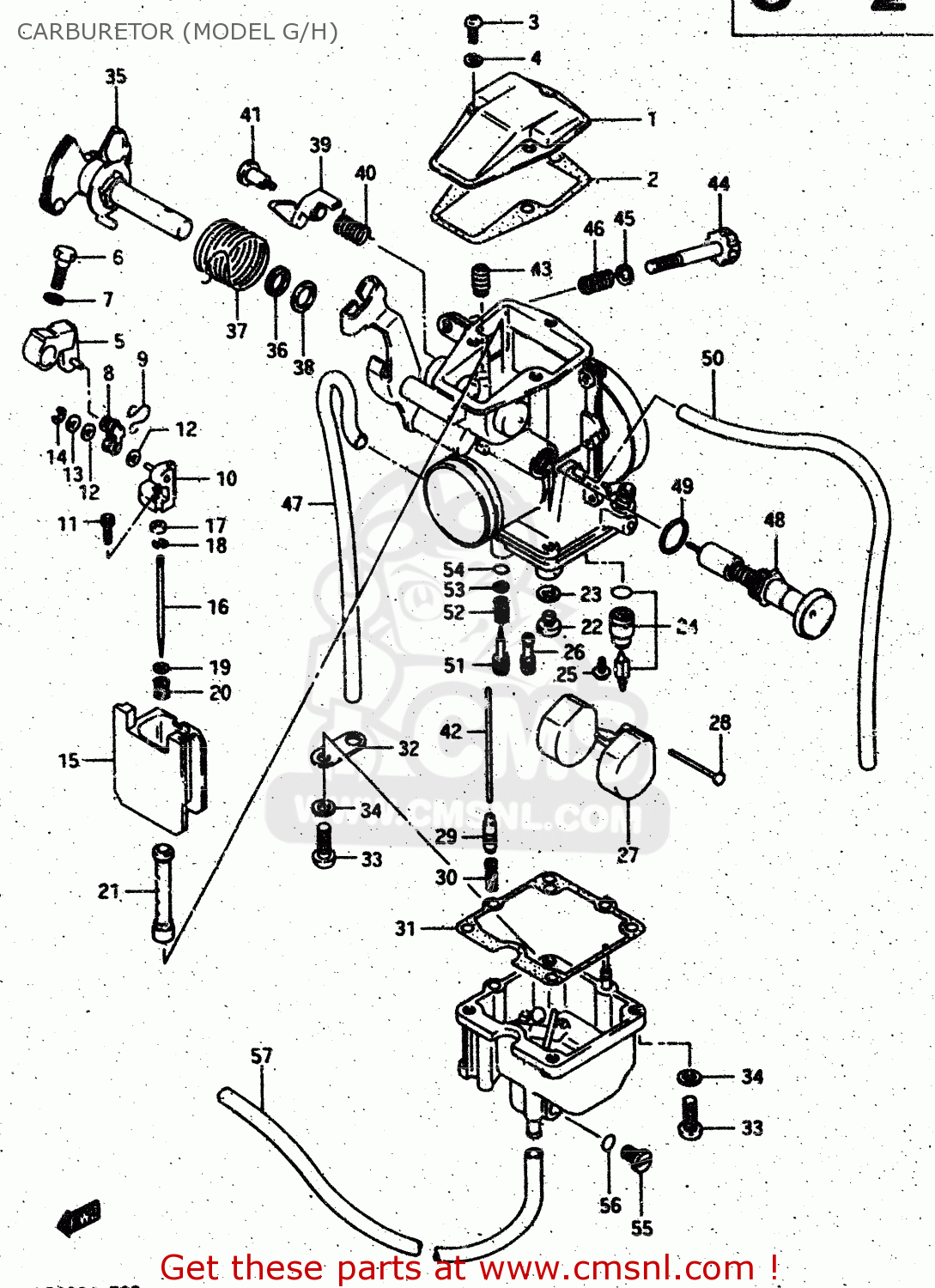

CARBURETOR (MODEL G/H)

ref

part #

description

quantity

0

1320015A01
ref: 0

CARBURETOR ASSY

€ 0.00

1

1326114A00
ref: 1

CAP, TOP

€ 0.00

2

1326614A00
ref: 2

GASKET,CARBURETOR TOP (NAS)

€ 4.50

3

0211204106
ref: 3

SCREWM4X0.7X10

€ 1.00

4

0832131046
ref: 4

LOCK WASHER

€ 2.00

5

1354114A00
ref: 5

ARM,THROTTLE

€ 34.50

6

1361343010
ref: 6

BOLT

€ 1.50

7

0832131056
ref: 7

LOCK WASHER

€ 3.00

8

1344714A00
ref: 8

PLATE

€ 16.50

9

1344614A00
ref: 9

SPRING

€ 4.00

10

1339814A01
ref: 10

BRACKET

€ 0.00

11

1356614A00
ref: 11

SCREW

€ 2.50

12

1344514A00
ref: 12

GASKET (NAS)

€ 3.00

13

1344914A00
ref: 13

WASHER

€ 2.00

14

1329849000
ref: 14

E-RING

€ 2.00

15

1355114A00
ref: 15

VALVE,THROTTLE

€ 115.50

16

1338314A00
ref: 16

NEEDLE,JET

€ 15.00

17

1338747010
ref: 17

RING

€ 7.50

18

1339410010
ref: 18

CLIP

€ 4.50

19

1338247010
ref: 19

WASHER,JET NEEDLE

€ 3.00

20

1338847010
ref: 20

SPRING

€ 7.00

21

0949400489
ref: 21

JET,NEEDLE(O-0)

€ 19.50

22

0949127009
ref: 22

JET,MAIN(135)

€ 10.50

23

1333244080
ref: 23

WASHER,NEEDLE NOZZLE

€ 2.50

24

1337014A00
ref: 24

VALVE ASSY,NEE

€ 48.50

25

1360243410
ref: 25

SCREW

€ 2.50

26

0949215007
ref: 26
FROM 09492-15003

JET,PILOT(15)

€ 8.50

27

1325214A00
ref: 27

FLOAT

€ 25.00

28

1325492311
ref: 28

PIN,FLOAT

€ 2.00

29

1349314A00
ref: 29

PLUNGER

€ 7.50

30

1327109400
ref: 30

SPRING

€ 4.50

31

1325114A00
ref: 31

GASKET,FLOAT CHAMBER (NAS)

€ 8.50

32

1369316600
ref: 32

PLATE

€ 8.00

33

0211205166
ref: 33

SCREW

€ 2.00

34

0832131056
ref: 34

LOCK WASHER

€ 3.00

35

1355315A00
ref: 35

SHAFT ASSY

€ 0.00

36

1355632410
ref: 36

SEAL

€ 7.50

37

1357314A00
ref: 37

SPRING

€ 8.50

38

1357438200
ref: 38

RING,THROTTLE SHAFT

€ 4.00

39

1349014A00
ref: 39

LEVER

€ 9.50

40

1349414A00
ref: 40

SPRING

€ 4.50

41

1361314A00
ref: 41

BOLT

€ 8.00

42

1348714A00
ref: 42

ROD,PLUNGER

€ 7.00

43

1349944500
ref: 43

BOOT, ACCELE PUMP ROD

€ 11.00

44

1326701400
ref: 44

SCREW,THROTTLE STOP

€ 10.00

45

1342738300
ref: 45

WASHER

€ 1.50

46

1327193011
ref: 46
FROM 13268-49310

SPRING

€ 4.50

47

1368414A00
ref: 47

HOSE (3.5X6.5X200)

€ 5.50

48

1340014A00
ref: 48

PLANGER ASSY

€ 40.50

49

1327847090
ref: 49

O RING

€ 2.00

50

1368422A00
ref: 50
L:550ARROW RIGHT350

HOSE

€ 13.00

51

1327947070
ref: 51
3 3/4

SCREW,PILOT

€ 11.50

52

1326847070
ref: 52

SPRING

€ 5.00

53

1329129900
ref: 53
FROM 13277-44080

WASHER

€ 2.00

54

1329529900
ref: 54
FROM 13278-44080

O RING,PILOT AIR SCREW

€ 4.00

55

1324705010
ref: 55

PLUG

€ 6.00

56

1324905010
ref: 56

GASKET,DRAIN,PLUG (NAS)

€ 1.50

57

1368337420
ref: 57

HOSE

€ 5.50
