HANDLEBAR - CABLE (MODEL G/H)

DR500S 1988 (J)

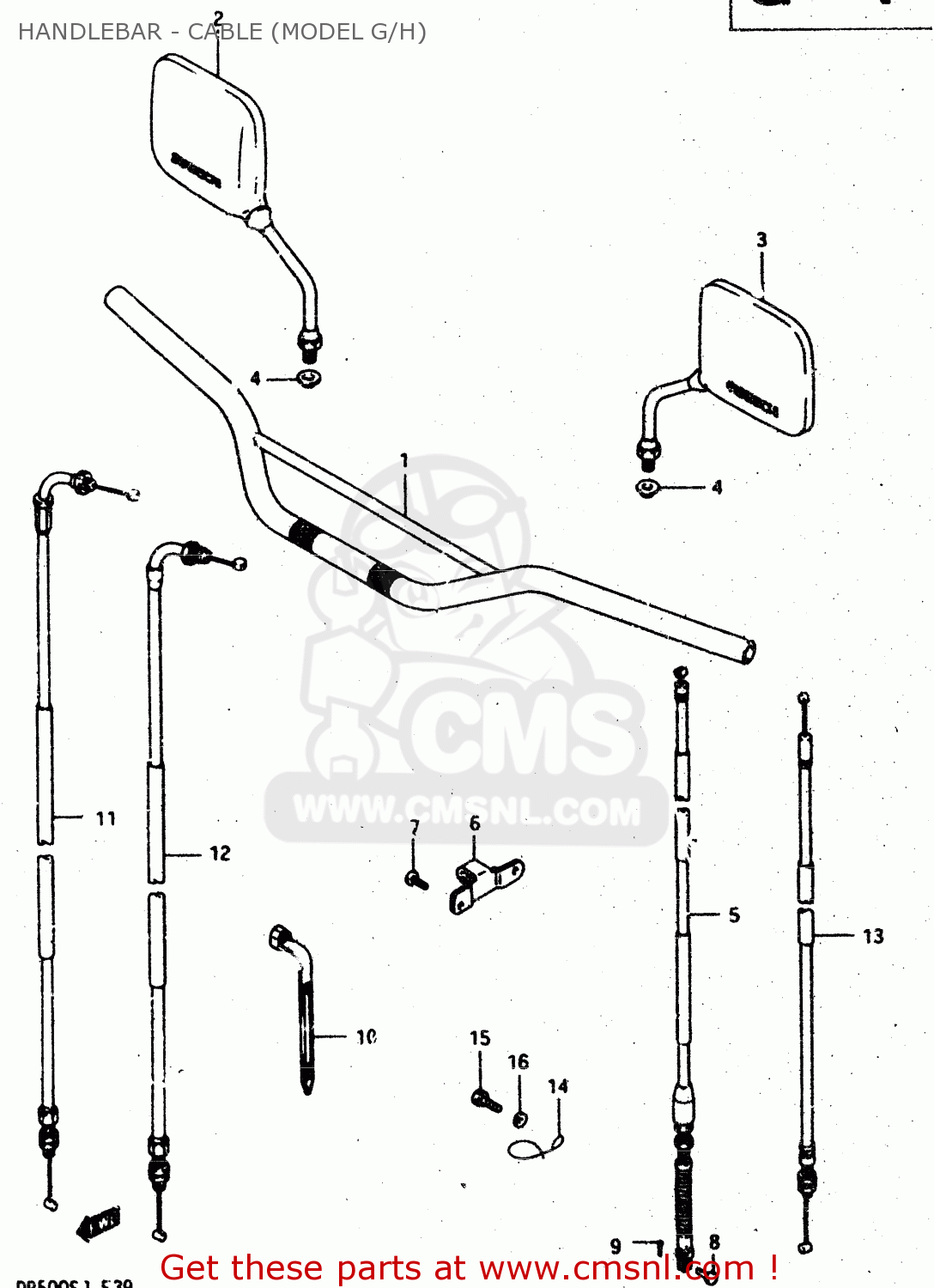

Handlebar - cable (model g/h) diagram DR500S 1988 (J)

HANDLEBAR - CABLE (MODEL G/H) DR500S 1988 (J)

HANDLEBAR - CABLE (MODEL G/H) DR500S 1988 (J)

prices are in EUR

ref

part #

description

quantity

1

5611014A10291
ref: 1

HANDLEBAR

€ 69.00

2

5650001A50
ref: 2

MIRROR ASSEMBLY,REAR VIEW

€ 222.50

3

5660001A50
ref: 3

MIRROR ASSEMBLY,LEFT

€ 196.00

4

0916910010
ref: 4

WASHER

€ 3.00

5

5820014A00
ref: 5

CABLE ASSY,CLUTCH

€ 36.00

6

5863437410
ref: 6

STOPPER,CLUTCH CABLE

€ 4.50

7

0211206125
ref: 7

SCREW

€ 1.50

8

0920006004
ref: 8

PIN(L:13)

€ 1.50

9

0411120158
ref: 9

PIN

€ 1.50

10

0940714403
ref: 10

CLAMP(L:125)

€ 2.50

11

5830014A30
ref: 11

CABLE ASSY,THROTTLE NO.1

€ 26.50

12

5830014A40
ref: 12

CABLE ASSY,THROTTLE NO.2

€ 29.50

13

5890014A00
ref: 13

CABLE ASSY,DECOMP

€ 23.00

14

5862117200
ref: 14

GUIDE

€ 5.50

15

0110706125
ref: 15

BOLT

€ 2.00

16

0832121064
ref: 16

WASHER,LOCK

€ 2.00
