SEAT (MODEL J)
DR500S 1988 (J)

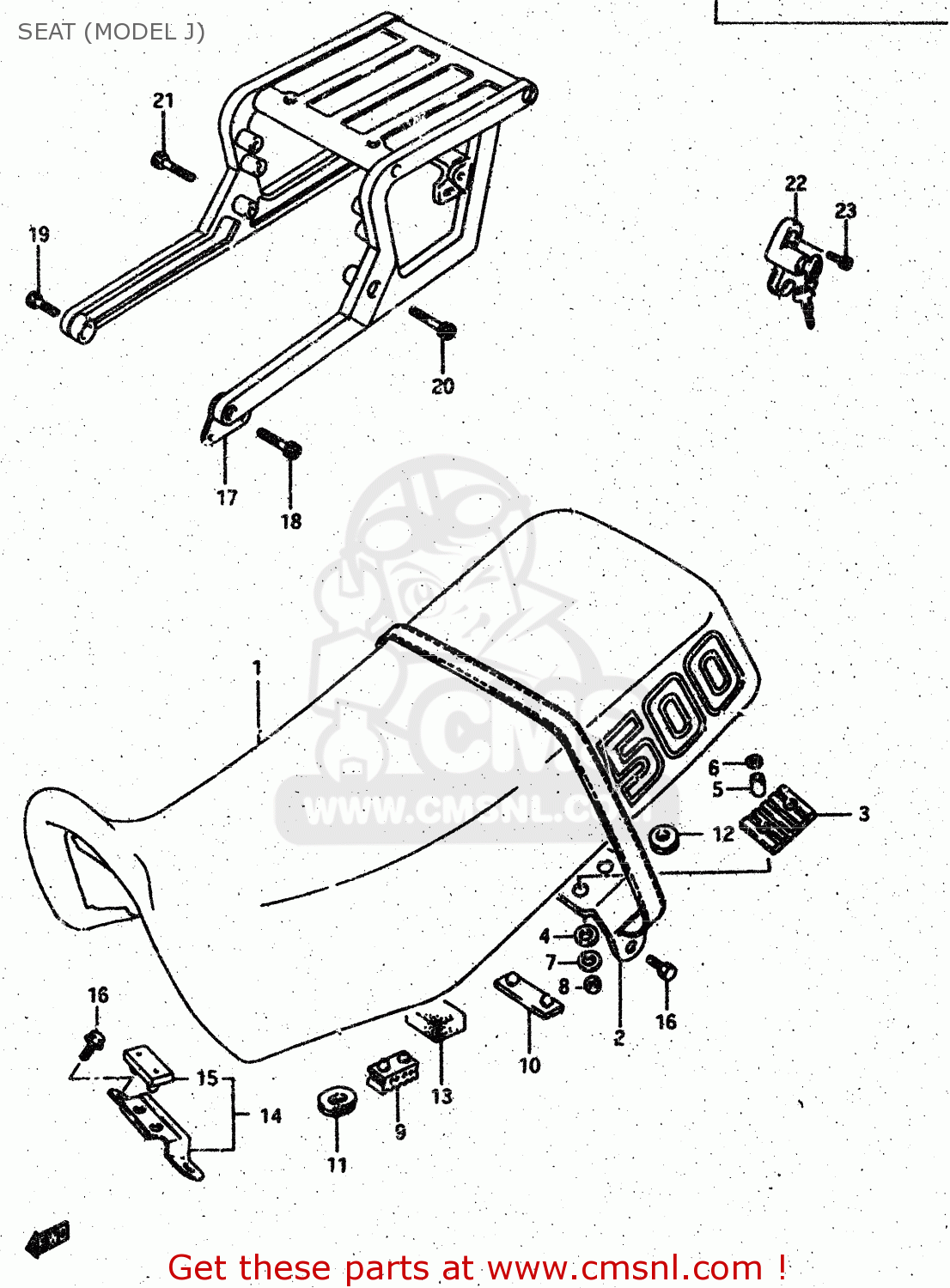

Seat (model j) diagram DR500S 1988 (J)
SEAT (MODEL J) DR500S 1988 (J)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510015C004UZ
ref: 1-1
FOR 14L,21C
SEAT SET (BLUE)
€ 229.50
1-2
4510015C0058P
ref: 1-2
FOR 34S
SEAT SET (BLACK)
€ 0.00
2-1
4518014A504UZ
ref: 2-1
FOR 14L,21C
BAND, SEAT GRIP (BLUE)
€ 25.00
2-2
4518014A5058P
ref: 2-2
FOR 34S
BAND,SEAT
€ 25.00
3
4514723450
ref: 3
CUSHION,SEAT FR
€ 1.50
4
4515023450
ref: 4
CUSHION,FR PLATE
€ 3.00
5
4521923450
ref: 5
SPACER,SEAT SUPPORT
€ 2.50
6
0821206201
ref: 6
WASHER
€ 1.50
7
0832221066
ref: 7
WASHER, LOWER
€ 2.00
8
0831626066
ref: 8
NUT
€ 2.00
9
4514931300
ref: 9
CUSHION,SEAT(40X20X15)
€ 2.00
10
0932108019
ref: 10
CUSHION
€ 4.00
11
0932908003
ref: 11
CUSHION
€ 3.50
12
0932008018
ref: 12
CUSHION
€ 4.00
13
4525515510
ref: 13
CUSHION,TOOL(40X30X15)
€ 4.00
14
4512014A00
ref: 14
PLATE ASSY,SEAT FR HOOK
€ 16.50
15
0932108010
ref: 15
CUSHION
€ 4.00
16
0151708166
ref: 16
BOLT
€ 3.00
17
4630014A40
ref: 17
CARRIER ASSEMBLY,REAR
€ 282.00
18
0711008257
ref: 18
BOLT, FRONT LH
€ 3.50
19
0711008358
ref: 19
BOLT, FRONT RH
€ 4.50
20
0711008508
ref: 20
BOLT ,8X50
€ 3.50
21
0711008608
ref: 21
BOLT, REAR RH
€ 4.50
22
9570031810
ref: 22
LOCK SET,HELMET
€ 49.50
23
0711006165
ref: 23
BOLT
€ 3.00
