FRAME COVER (DR500RG/RH)

DR500S 1988 (J)

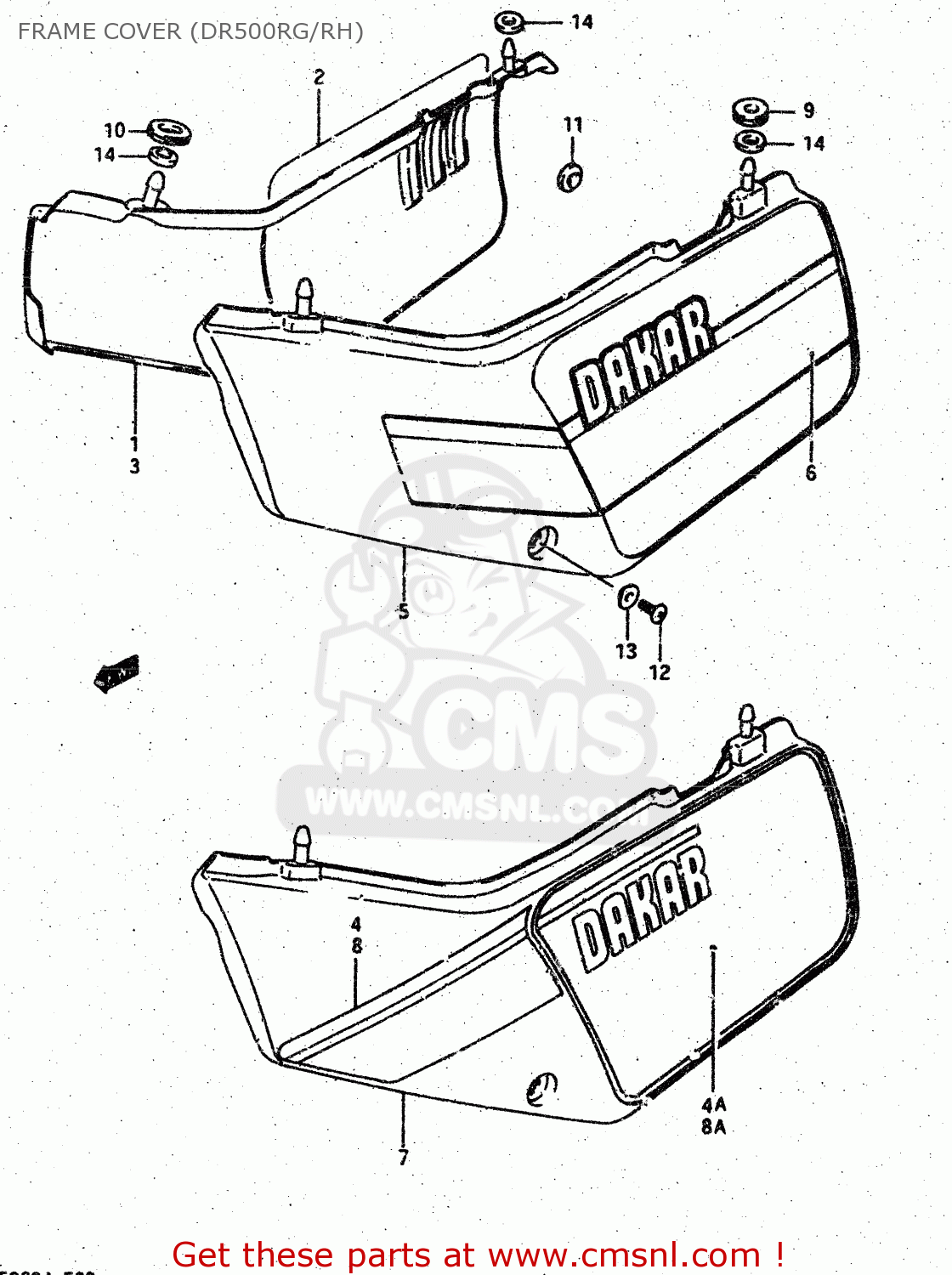

Frame cover (dr500rg/rh) diagram DR500S 1988 (J)

FRAME COVER (DR500RG/RH) DR500S 1988 (J)
FRAME COVER (DR500RG/RH) DR500S 1988 (J)
FRAME COVER (DR500RG/RH) DR500S 1988 (J)
prices are in EUR
ref
part #
description
quantity
1
4711014A0010V
ref: 1
MODEL G
COVER, FRAME RH (WHITE)
€ 69.00
2
6813014A208LC
ref: 2
MODEL G
TAPE SET, FRAME COVER RH
6813014A208LC
€ 21.00
3
4711015A2014L
ref: 3
MODEL H
COVER, FRAME RH (WHITE)
€ 75.00
4
6813514A009NY
ref: 4
MODEL H
TAPE,FRAME COVER FR,R
€ 15.50
4A
6813514A209LR
ref: 4A
MODEL H
TAPE, FRAME COVER REAR RH
€ 36.00
5
4721014A0010V
ref: 5
MODEL G
COVER, FRAME LH (WHITE)
€ 59.00
6
6814014A208LC
ref: 6
MODEL G
TAPE SET, FRAME COVER LH
€ 18.50
7
4721015A2014L
ref: 7
MODEL H
COVER, FRAME LH (WHITE)
€ 74.50
8
6814514A009NY
ref: 8
MODEL H
TAPE,FRAME COVER FR,L
€ 13.50
8A
6814514A209LR
ref: 8A
MODEL H
TAPE, FRAME COVER REAR LH
€ 36.00
9
0932008018
ref: 9
CUSHION
0932008018
€ 4.00
10
0932908003
ref: 10
CUSHION
0932908003
€ 3.50
11
0932110013
ref: 11
CUSHION
0932110013
€ 5.00
12
0214206125
ref: 12
SCREW 6X12
0214206125
€ 2.00
13
0916906041
ref: 13
WASHER
0916906041
€ 2.00
14
4716114A00
ref: 14
CUSHION,SIDE COVER BOSS
4716114A00
€ 2.50
