MAGNETO
DR500S 1988 (J)

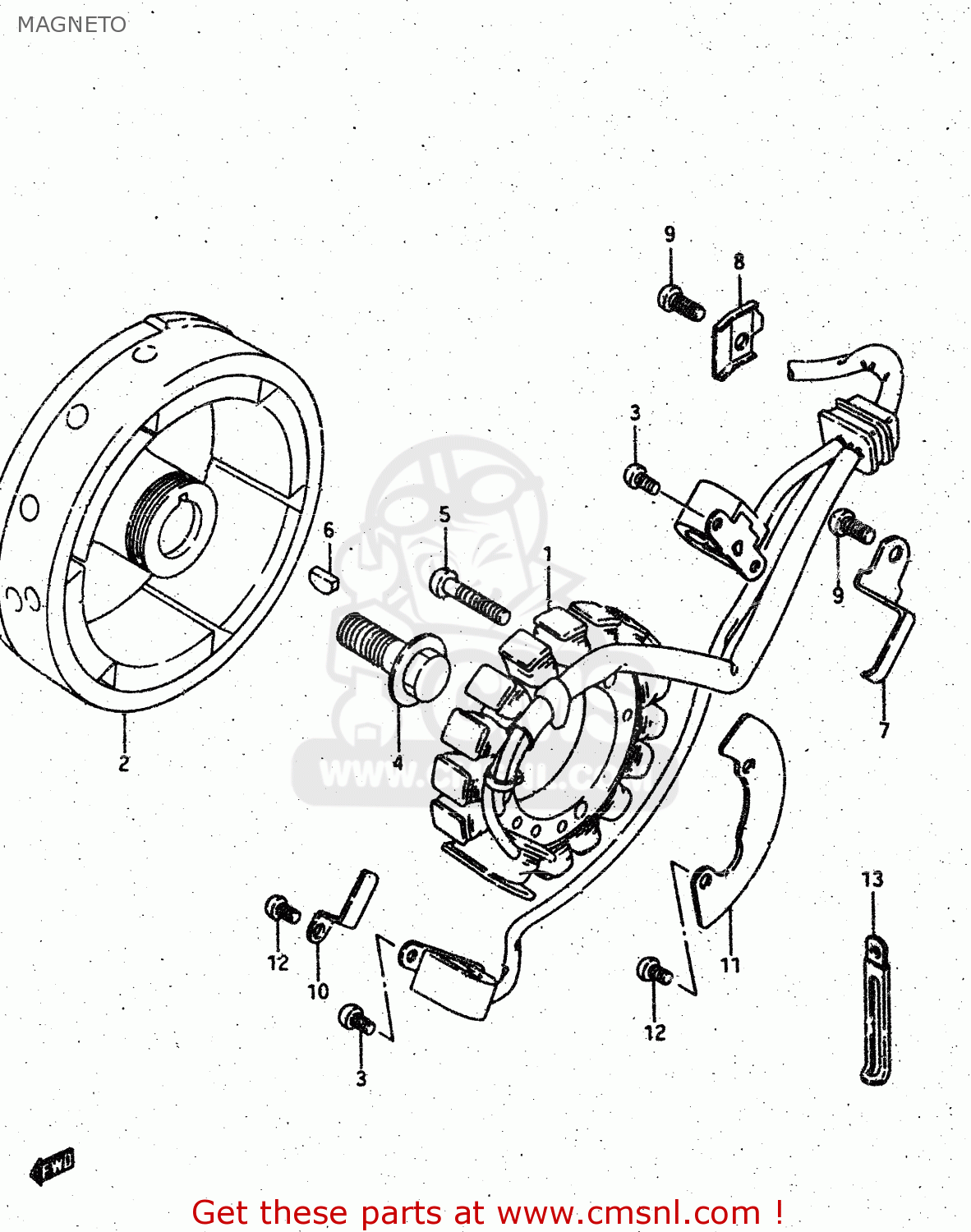

Magneto diagram DR500S 1988 (J)
MAGNETO DR500S 1988 (J)
×
prices are in EUR
ref
part #
description
quantity
1
3210114A10
ref: 1
STATOR ASSY
€ 694.00
2
3210214A10
ref: 2
ROTOR,FLYWHEEL
€ 439.00
3
0211205128
ref: 3
SCREW
€ 2.50
4
0910314001
ref: 4
BOLT(14X43)
€ 7.00
5
0211206308
ref: 5
SCREW 6X30
€ 2.50
6
0834131049
ref: 6
KEY 4MM
€ 3.50
7
3237114A00
ref: 7
CLAMP,MAGNETO LEAD WIRE
€ 3.50
8
3237137410
ref: 8
CLAMP,MAGNETO LEAD WIRE
€ 1.50
9
0211206108
ref: 9
SCREW
€ 1.50
10
3237114A10
ref: 10
CLAMP
€ 0.00
11
3237114A20
ref: 11
CLAMP
€ 0.00
12
0211205107
ref: 12
SCREW
€ 2.00
13
0940406402
ref: 13
CLAMP
€ 2.50
