FRONT CALIPERS

DR500S 1988 (J)

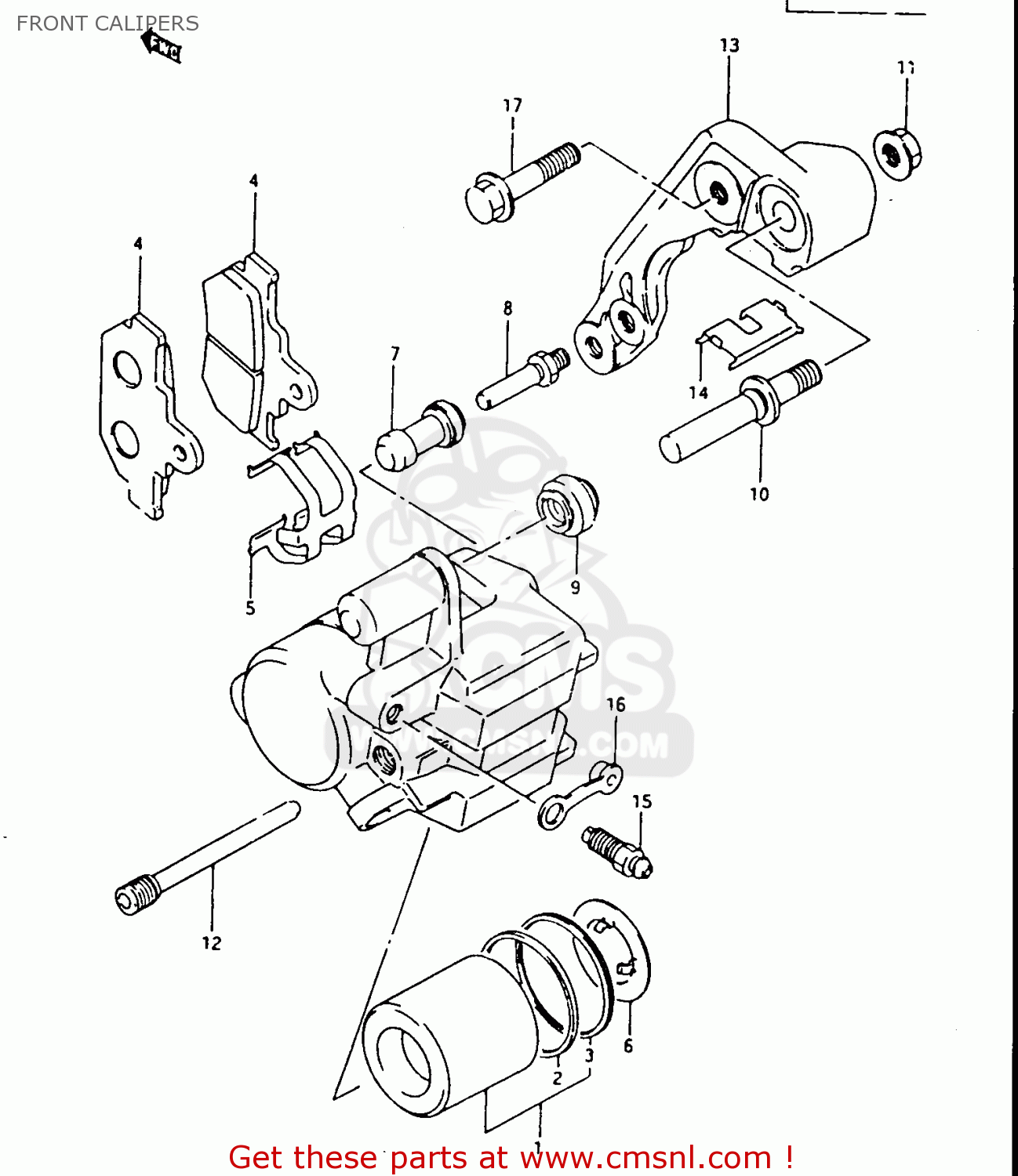

Front calipers diagram DR500S 1988 (J)

FRONT CALIPERS DR500S 1988 (J)
FRONT CALIPERS DR500S 1988 (J)
FRONT CALIPERS DR500S 1988 (J)
prices are in EUR
ref
part #
description
quantity
0
5930014501
ref: 0
MODEL G/H
CALIPER ASSEMBLY,LEFT
€ 413.00
0
5930014510
ref: 0
MODEL J
CALIPER ASSEMBLY,LEFT
€ 413.00
1
5930014810
ref: 1
PISTON SET,CALIPERS
5930014810
€ 50.00
2
5910714500
ref: 2
SEAL,PISTON
5910714500
€ 12.50
3
5910814500
ref: 3
DUST SEAL,PISTON
5910814500
€ 6.00
4-1
5934014501
ref: 4-1
MODEL G/H
PAD (NAS)
5934014501
€ 47.00
4-2
5934014510
ref: 4-2
MODEL J
PAD
€ 47.00
5
5931514500
ref: 5
SPRING,PAD
5931514500
€ 8.00
6
5937114500
ref: 6
SHIM
5937114500
€ 8.00
7
5938613A00
ref: 7
BOOT
5938613A00
€ 6.50
8
5938214500
ref: 8
PIN,BOLT
5938214500
€ 7.50
9
5930314500
ref: 9
BOOT
5930314500
€ 5.50
10
5930514500
ref: 10
PIN,SLIDE
5930514500
€ 12.50
11
5930614500
ref: 11
NUT,SLIDE PIN
5930614500
€ 2.50
12
5934514500
ref: 12
PIN,HANGER
5934514500
€ 9.50
13
5935114500
ref: 13
BRACKET
5935114500
€ 62.50
14
5931614500
ref: 14
RETAINER
€ 4.50
15
5912101A00
ref: 15
BLEEDER
5912101A00
€ 8.50
16
5912201A00
ref: 16
CAP,BLEEDER
5912201A00
€ 4.50
17
0910308157
ref: 17
BOLT(8X35)
0910308157
€ 4.00
