REAR WHEEL
DR500S 1988 (J)

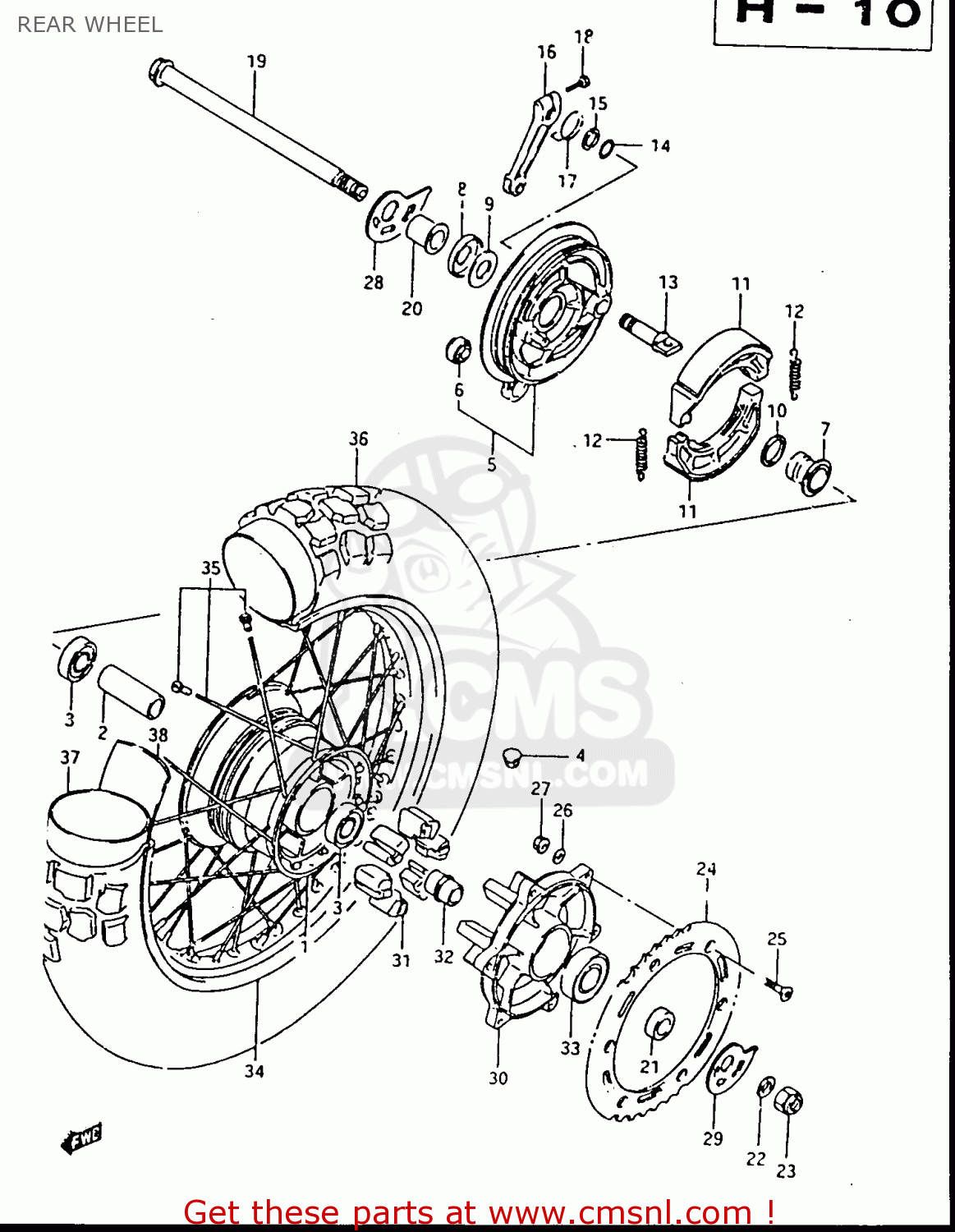

Rear wheel diagram DR500S 1988 (J)
REAR WHEEL DR500S 1988 (J)
×
prices are in EUR
ref
part #
description
quantity
1
6411014A00
ref: 1
DRUM,REAR HUB
€ 307.00
2
0918017078
ref: 2
SPACER (17.5X25X90)
€ 12.00
3
0813362037
ref: 3
BEARING
€ 24.50
4
0925008013
ref: 4
CAP(OD:12)
€ 2.00
5
6420014870
ref: 5
PANEL SET,REAR HUB
€ 62.50
6
6435240401
ref: 6
SPHERICAL BRNG,TORQUE LINK
€ 69.50
7
6421314A00
ref: 7
SPACER,REAR BRAKE ANCHOR
€ 22.00
8
6484537200
ref: 8
CVR,RR BRAKE AHR PNL DUST SEAL
€ 12.00
9
0821117361
ref: 9
WASHER
€ 2.00
10
0928524001
ref: 10
SEAL,OIL(24X31X5)
€ 4.50
11-1
5441007003
ref: 11-1
MODEL G/H
SHOE,BRAKE
€ 35.00
11-2
5441007020
ref: 11-2
MODEL J
SHOE,BRAKE
€ 32.00
12
0944307001
ref: 12
SPRING(L:34)
€ 2.50
13
6444114A00
ref: 13
CAM,REAR BRAKE
€ 12.00
14
0928014003
ref: 14
O-RING (D:2.4 ID:13.8)
€ 3.50
15
0916014001
ref: 15
WASHER (14.5X22X1.6)
€ 2.50
16
6445114A00
ref: 16
LEVER,RR BRAKE CAM
€ 33.00
17
0944830006
ref: 17
SPRING
€ 4.00
18
0110706257
ref: 18
BOLT
€ 2.00
19
6471114A01
ref: 19
AXLE,RR
€ 51.00
20
6474114A01
ref: 20
SPACER,REAR AXLE,RIGHT
€ 10.50
21
0918017079
ref: 21
SPACER (17X33X11)
€ 12.00
22
0832211168
ref: 22
WASHER
€ 2.00
23
0915916002
ref: 23
NUT
€ 5.00
24
6451114A00
ref: 24
SPROCKET,REAR
€ 99.00
25
0912008010
ref: 25
BOLT(8X30.5)
€ 2.50
26
0832211088
ref: 26
WASHER
€ 2.00
27
0831931087
ref: 27
NUT
€ 2.50
28
6141114A00
ref: 28
ADJUSTER,CHAIN RH
€ 13.00
29
6142114A00
ref: 29
ADJUSTER,CHAIN LH
€ 13.00
30
6461114A00
ref: 30
DRUM,RR SPROCKET MOUNTING
€ 468.50
31
6465114A00
ref: 31
CUSHION,REAR DRUM
€ 11.50
32
6473314A00
ref: 32
RETAINER,RR SPROCKET DRUM
€ 19.00
33
0926225061
ref: 33
BEARING(25X52X15)
€ 27.50
34-1
6531114A10
ref: 34-1
DR500SG/MODEL H/J
RIM,REAR WHEEL (2.50-17)(
€ 312.00
34-2
6531114A00
ref: 34-2
DR500RG
RIM,REAR WHEEL
€ 312.00
35
6532014A00
ref: 35
SPOKE SET,REAR WHEEL
€ 51.50
36
6510014A10
ref: 36
IRC
TIRE
€ 133.00
37
6520044300
ref: 37
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
38
6526149010
ref: 38
PROTECTOR,INNER TUBE
€ 2.00
