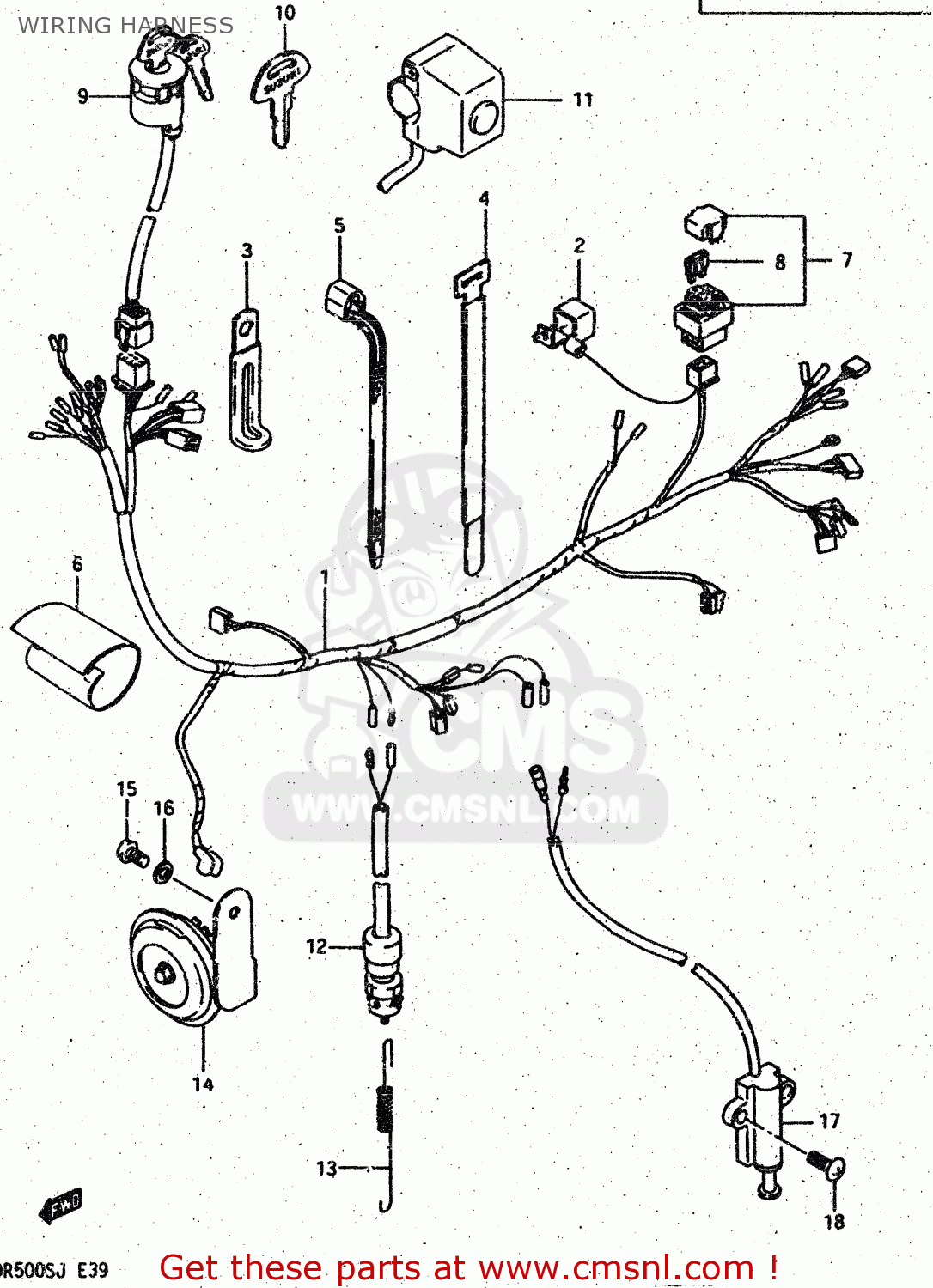

WIRING HARNESS

ref

part #

description

quantity

1-1

3661014A12
ref: 1-1
DR500SG/RG/SH FROM 3

HARNESS, WIRING

€ 180.00

1-2

3661014A31
ref: 1-2
DR500RH, FROM 36610-

HARNESS, WIRING

€ 157.00

1-3

3661014A41
ref: 1-3
DR500SJ

HARNESS, WIRING

€ 192.00

2

3362414A00
ref: 2

CAP,BATTERY PLUS TERMINAL

€ 0.00

3-1

0940426401
ref: 3-1

CLAMP (L:50)

€ 0.00

3-2

0940408413
ref: 3-2

CLAMP

€ 3.50

3-3

0940406422
ref: 3-3
MODEL G/H

CLAMP

€ 2.50

4-1

0940718301
ref: 4-1

CLAMP

€ 6.00

4-2

0940712402
ref: 4-2

CLAMP(L:120)

€ 3.00

5-1

0940714403
ref: 5-1
MODEL G/H

CLAMP(L:125)

€ 2.50

5-2

0940714403
ref: 5-2
MODEL J

CLAMP(L:125)

€ 2.50

5-3

0940718402
ref: 5-3

CLAMP(L:165)

€ 2.50

5-4

0940725401
ref: 5-4

CLAMP(L:235)

€ 4.00

6

3661813600
ref: 6

COVER,WIRING HARNESS

€ 12.00

7

3674004701
ref: 7

BOX ASSY,FUSE

€ 16.00

8

0948115101
ref: 8

FUSE(15A)

€ 1.50

9

3711001A01
ref: 9

SWITCH ASSEMBLY,IGNITION

€ 64.50

10

3714502400
ref: 10
OPT

KEY,BLANK

€ 13.00

11

3783013A00
ref: 11

SWITCH ASSY,ENGINE STOP

€ 43.00

12

3774014A00
ref: 12

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

13

0944306058
ref: 13

SPRING

€ 18.00

14

3850014A20
ref: 14

HORN ASSEMBLY

€ 48.00

15

0211206125
ref: 15

SCREW

€ 1.50

16

0832121064
ref: 16

WASHER,LOCK

€ 2.00

17

3784014A20
ref: 17
MODEL J

SWITCH ASSY, SIDE STAND

€ 80.00

18

0211206205
ref: 18
MODEL J

SCREW

€ 2.00
