FUEL COCK

DR500S 1988 (J)

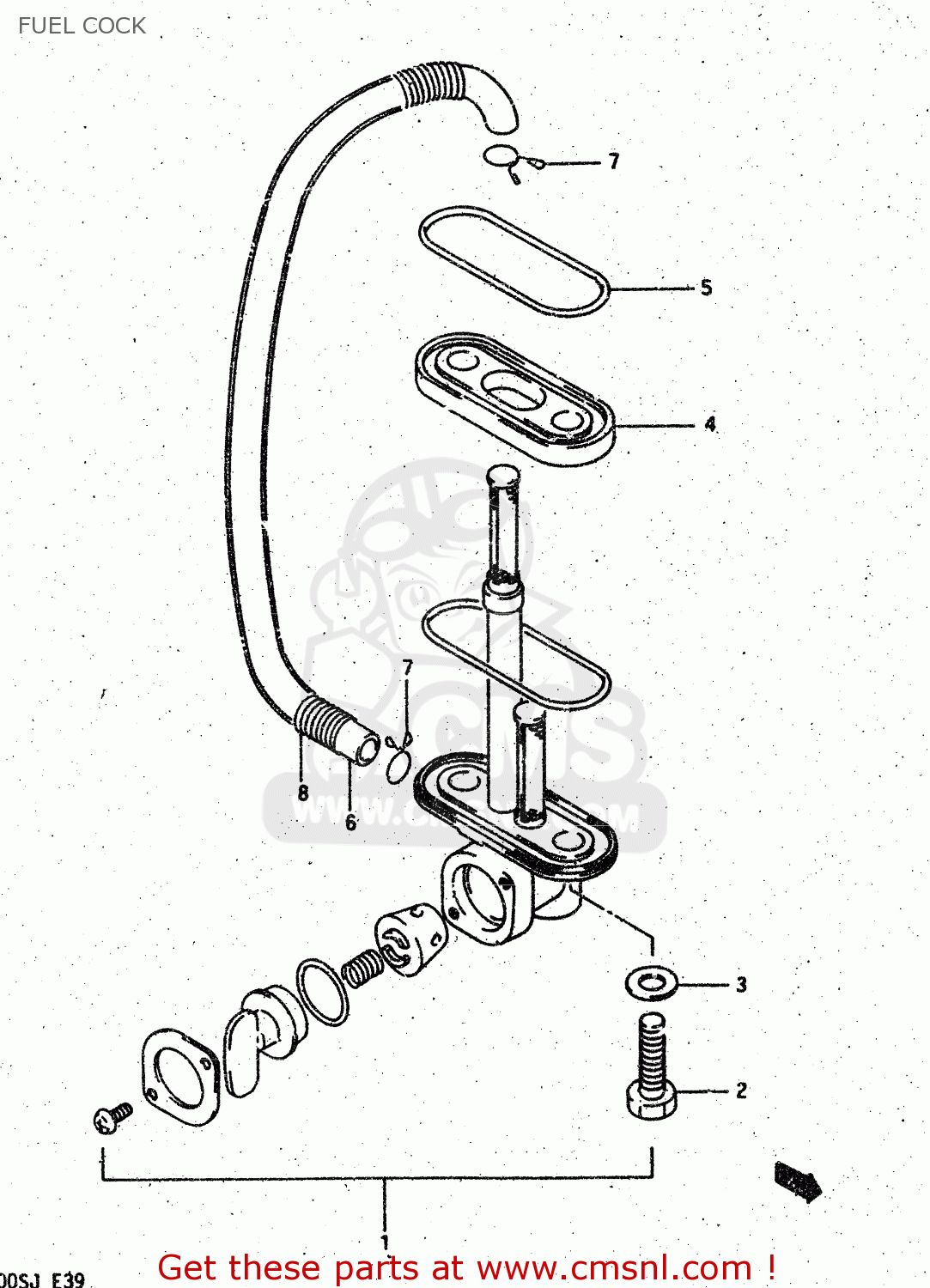

Fuel cock diagram DR500S 1988 (J)

FUEL COCK DR500S 1988 (J)
FUEL COCK DR500S 1988 (J)
FUEL COCK DR500S 1988 (J)
prices are in EUR
ref
part #
description
quantity
1
4430014A01
ref: 1
COCK ASSY,FUEL
4430014A01
€ 57.00
2
0912806006
ref: 2
BOLT(6X20)
0912806006
€ 2.00
3
0916806010
ref: 3
GASKET
0916806010
€ 2.00
4
4436514A00
ref: 4
SPACER,FUEL COCK
4436514A00
€ 12.00
5
4436614A00
ref: 5
GASKET,FUEL COCK (NAS)
4436614A00
€ 2.50
6
093527010328A
ref: 6
HOSE
€ 17.50
7
0940110402
ref: 7
CLIP
0940110402
€ 7.00
8
0944013012
ref: 8
SPRING
€ 4.50
