STEERING STEM
DR500S 1988 (J)

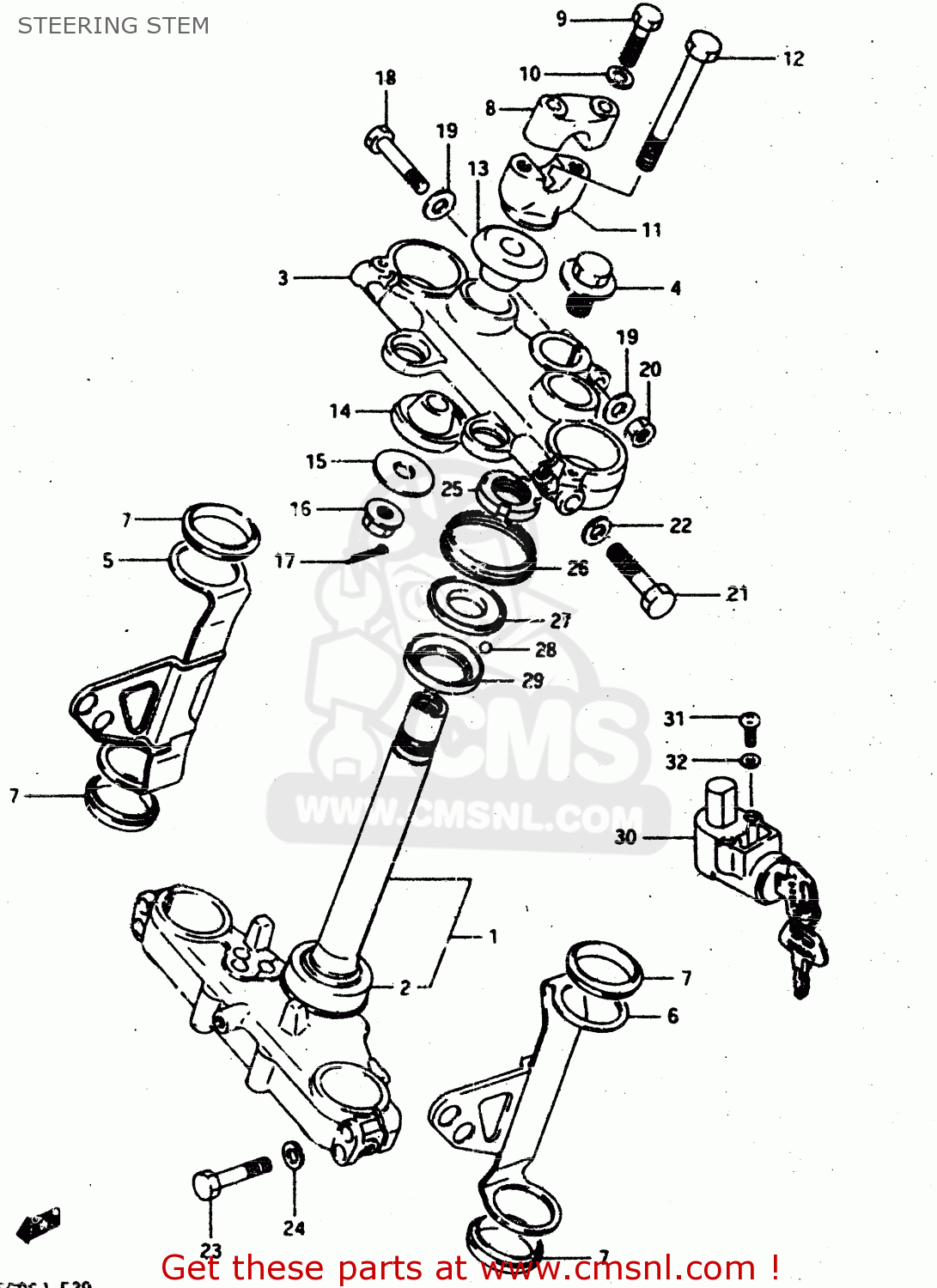

Steering stem diagram DR500S 1988 (J)
STEERING STEM DR500S 1988 (J)
×
prices are in EUR
ref
part #
description
quantity
1
5141014A10
ref: 1
STEM,STEERING
€ 259.50
2
0926530005
ref: 2
BEARING
€ 49.50
3
5131114A00
ref: 3
HEAD,STEERING STEM
€ 108.00
4
5135314A00
ref: 4
BOLT,STEERING STEM
€ 9.50
5
5153014A00
ref: 5
COVER,FORK,RIGHT
€ 33.00
6
5154014A00
ref: 6
BRACKET,HEADLAMP,LEFT
€ 30.50
7
5155314A00
ref: 7
CUSHION,HEAD LAMP BRACKET
€ 4.50
8
5621127210019
ref: 8
HOLDER,HANDLEBAR
€ 12.00
9
0110708355
ref: 9
BOLT
€ 3.50
10
0832131084
ref: 10
LOCK WASHER
€ 2.50
11
5622114330291
ref: 11
HOLDER,HANDLE LWR
€ 25.50
12
5132114200
ref: 12
BOLT,HANDLE HOLDER
€ 6.50
13
5624114A00
ref: 13
DAMPER,UPR
€ 25.00
14
5624214200
ref: 14
DAMPER,LWR
€ 21.50
15
5135640400
ref: 15
WASHER,HANDLEBAR HOLDER
€ 2.00
16
0831931107
ref: 16
NUT
€ 3.00
17
0411120308
ref: 17
COTTER PIN
€ 1.00
18
0110708505
ref: 18
BOLT
€ 3.00
19
0832211084
ref: 19
WASHER
€ 1.50
20
0831012085
ref: 20
NUT ,8MM
€ 1.50
21
0110710455
ref: 21
BOLT
€ 2.00
22
0832131105
ref: 22
LOCK WASHER
€ 3.00
23
0110708455
ref: 23
BOLT
€ 2.50
24
0832131084
ref: 24
LOCK WASHER
€ 2.50
25
5163140200
ref: 25
NUT,STEERING STEM
€ 12.00
26
5164340200
ref: 26
SEAL,STEERING UPR DUST
€ 7.50
27
5162140200
ref: 27
RACE,STEERING,OUTER,UPPER
€ 17.00
28
0611108003
ref: 28
BALL
€ 1.50
29
5161140201
ref: 29
RACE,STEERING INNER (SUJ)
€ 8.50
30
5190030831
ref: 30
LOCK ASSY,STEERING
€ 30.00
31
0211205128
ref: 31
SCREW
€ 2.50
32
0832121057
ref: 32
LOCK WASHER
€ 2.00
