CLUTCH
DR500S 1988 (J)

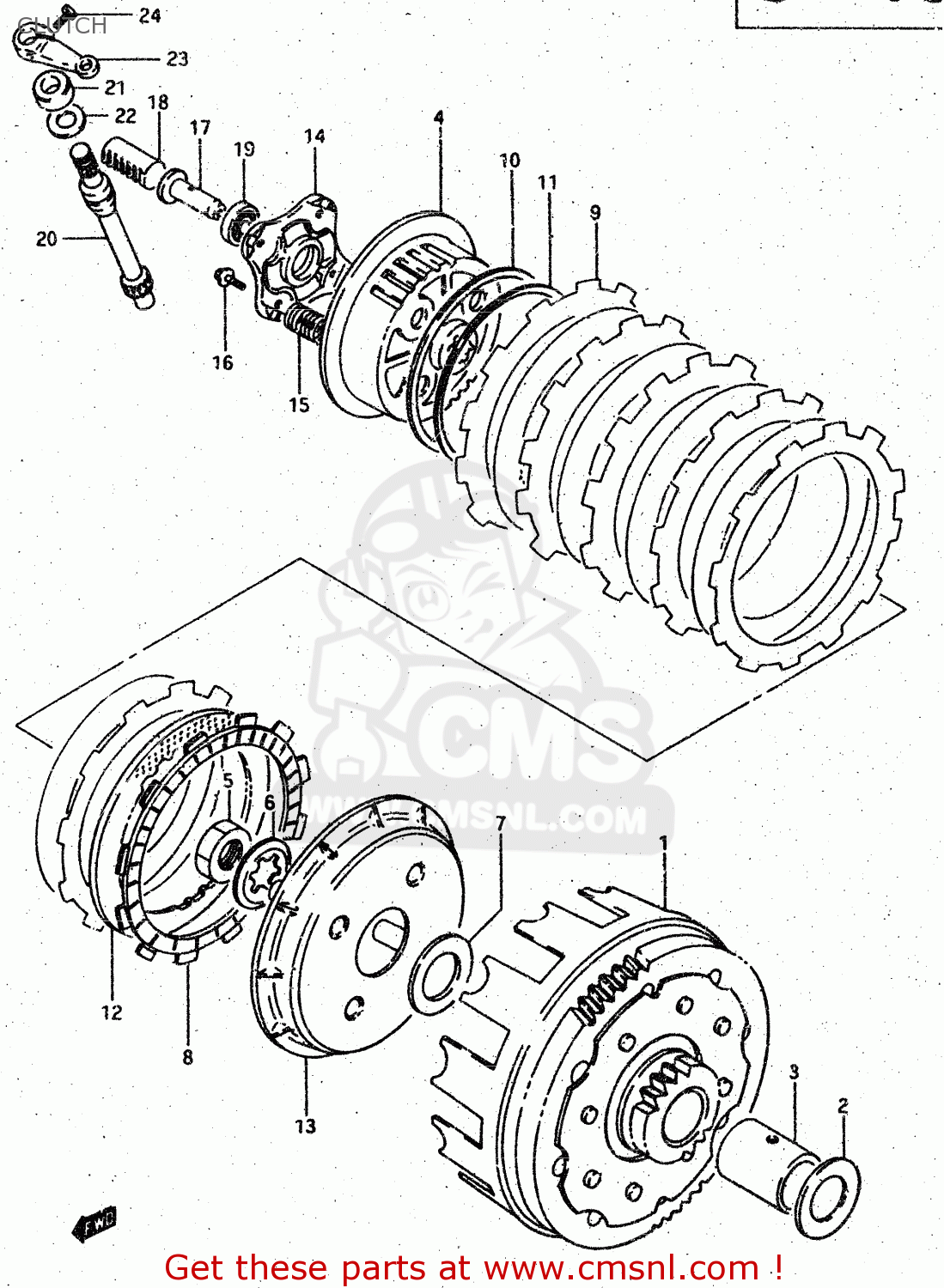

Clutch diagram DR500S 1988 (J)
CLUTCH DR500S 1988 (J)
×
prices are in EUR
ref
part #
description
quantity
1
2120014A01
ref: 1
NT:67/18
GEAR ASSEMBLY,PRIMARY DRIVE
€ 275.50
2
0821122383
ref: 2
WASHER
€ 3.00
3
0918022023
ref: 3
SPACER(22X28X32.5)
€ 15.50
4
2141137401
ref: 4
HUB,CLUTCH SLEEVE
€ 78.00
5
0914022003
ref: 5
NUT
€ 10.00
6
0916722005
ref: 6
WASHER,LOCK
€ 2.50
7
0821122383
ref: 7
WASHER
€ 3.00
8
2144137400
ref: 8
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
9
2144237401
ref: 9
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
€ 11.50
10
2147137400
ref: 10
SEAT,WAVE WASHER(T:1.4)
€ 8.00
11
0916400004
ref: 11
WASHER
€ 9.00
12
2145114A00
ref: 12
PLATE,CLUTCH DRIVEN(T:1.6) (NAS)
€ 6.50
13
2146237400
ref: 13
DISC,CLUTCH PRESSURE
€ 41.00
14
2146537400
ref: 14
PLATE,RELEASE
€ 11.50
15
0944020013
ref: 15
SPRING
€ 5.00
16
0151706207
ref: 16
BOLT 6X20
€ 2.50
17
2312114A00
ref: 17
PIECE,CLUTCH PUSH
€ 14.50
18
2316537400
ref: 18
RACK,CLUTCH RELEASE
€ 19.00
19
0811060010
ref: 19
BEARING
€ 15.00
20
2326116501
ref: 20
PINION,CLUTCH RELEASE
€ 40.50
21
0928512006
ref: 21
SEAL,OIL (12X22X9)
€ 7.00
22
0916014003
ref: 22
WASHER (14.2X22X1)
€ 1.00
23
2327145400
ref: 23
ARM,CLUTCH RELEASE
€ 31.50
24
0110706207
ref: 24
BOLT
€ 2.00
