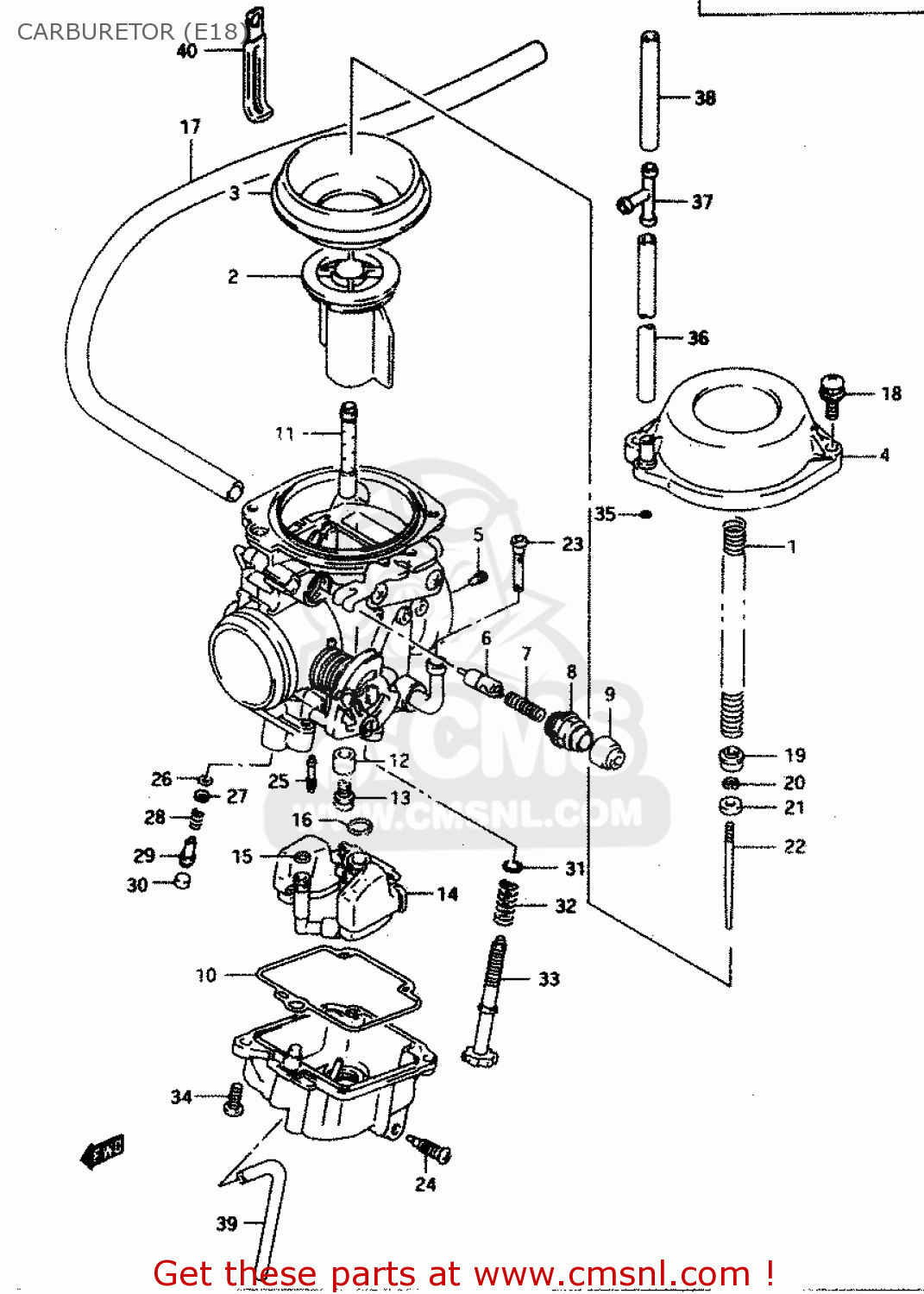

CARBURETOR (E18)

ref

part #

description

quantity

0

1320012EB0
ref: 0

CARBURETOR ASSY

€ 697.50

1

1341717D00
ref: 1

SPRING

€ 5.50

2

1350112D00
ref: 2

VALVE,PISTON

€ 71.50

3

1350707D00
ref: 3
MODEL R

DIAPHRAGM

€ 24.50

3

1350707D01
ref: 3
MODEL S

DIAPHRAGM

€ 24.50

4

1350212D10
ref: 4

COVER,DIAPHRAGM

€ 29.00

5

0949328007
ref: 5

JET,AIR

€ 15.50

6

1341112D00
ref: 6

PLUNGER

€ 18.00

7

1341722010
ref: 7

SPRING

€ 3.00

8

1341843410
ref: 8

HOLDER,GUIDE

€ 6.50

9

1368104010
ref: 9

CAP

€ 3.00

10

1325844B00
ref: 10

GASKET,FLOAT CHAMBER (NAS)

€ 8.50

11

0949400754
ref: 11

JET,NEEDLE(Y-2)

€ 21.00

12

1333107D00
ref: 12

RING

€ 4.50

13

0949127010
ref: 13

JET,MAIN(137.5)

€ 10.50

14

1325012E00
ref: 14

FLOAT/NEEDLE VALVE ASSEMBLY

€ 79.50

15

1327847090
ref: 15

O RING

€ 2.00

16

1337444080
ref: 16

O-RING,NEEDLE VALVE

€ 6.00

17

0935465113600
ref: 17
L:600->325

HOSE(6.5X11.5X600)

€ 26.00

18

0211275163
ref: 18

SCREW

€ 2.50

19

1333112D00
ref: 19

RING

€ 4.50

20

1339431210
ref: 20

CLIP,NEEDLE

€ 3.50

21

1338707D00
ref: 21

RING

€ 4.50

22

1338312E00
ref: 22

NEEDLE,JET

€ 16.50

23

1323612C00
ref: 23

FILTER

€ 5.00

24

1324713A00
ref: 24

SCREW,DRAIN

€ 5.50

25

0949252010
ref: 25

JET,PILOT(52.5)

€ 12.50

26

1329529900
ref: 26

O RING,PILOT AIR SCREW

€ 4.00

27

1329129900
ref: 27

WASHER

€ 2.00

28

1326847070
ref: 28

SPRING

€ 5.00

29

1327947070
ref: 29

SCREW,PILOT

€ 11.50

30

1328105A00
ref: 30

PLUG

€ 3.50

31

1342738300
ref: 31

WASHER

€ 1.50

32

1327124D00
ref: 32

SPRING

€ 5.00

33

1326713D01
ref: 33

ADJUSTER

€ 15.00

34

1360105148
ref: 34

SCREW(5X14)

€ 3.00

35

1327802340
ref: 35

O RING

€ 1.50

36

0935445853600
ref: 36
L:600->180, <-13683-

HOSE (4.5X8.5X600)

€ 14.00

37

0936706002
ref: 37

JOINT,3 WAY

€ 3.00

38

0935445853600
ref: 38
L:600->70, <-13683-3

HOSE (4.5X8.5X600)

€ 14.00

39

0935431684600
ref: 39
L:600->500

HOSE

€ 13.50

40

0940406402
ref: 40
MODEL R

CLAMP

€ 2.50

40

0940406429
ref: 40
MODEL S

CLAMP(L:45)

€ 2.50

all assemblies
