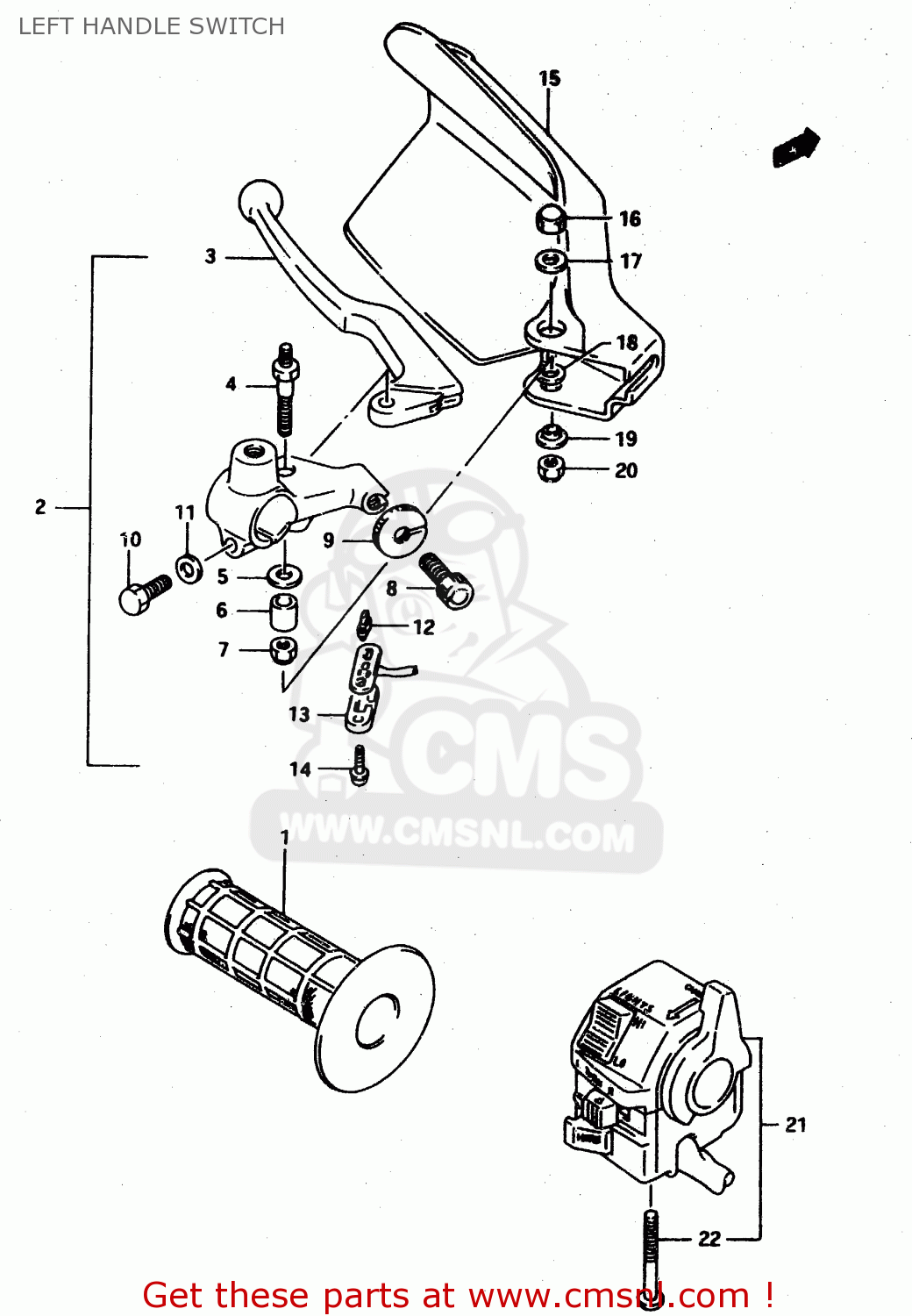

LEFT HANDLE SWITCH

ref

part #

description

quantity

1

5721112D00
ref: 1

GRIP,L

€ 14.50

2

5750012E11
ref: 2

LEVER ASSEMBLY,CLUTCH

€ 101.00

3

5762020A02
ref: 3

LEVER,CLUTCH

€ 26.50

4

5753144B00
ref: 4

BOLT,LEVER SET

€ 6.50

5

0832221064
ref: 5

WASHER

€ 2.00

6

5753244B00
ref: 6

SPACER,LEVER SET

€ 3.50

7

0831921065
ref: 7

NUT

€ 2.50

8

5744144400
ref: 8

ADJUSTER,CABLE

€ 5.50

9

5744211010
ref: 9

NUT,CABLE ADJUSTER

€ 4.00

10

0120406204
ref: 10

BOLT

€ 2.00

11

0832221064
ref: 11

WASHER

€ 2.00

12

5746518601
ref: 12

CONTACT,SWITCH

€ 4.50

13

5748133010
ref: 13

COVER,FR BK TERMINAL BASE

€ 19.50

14

5748449110
ref: 14

SCREW

€ 1.50

15

5754131D000NF
ref: 15
FOR C3K

COVER,KNUCKLE,LEFT

€ 25.50

15

5754131D00019
ref: 15
FOR 019

COVER,KNUCKLE,LEFT

€ 21.50

16

0831310063
ref: 16

NUT

€ 2.00

17

0916006088
ref: 17

WASHER(6.5X20X1.6)

€ 2.00

18

0916006019
ref: 18

WASHER(6.5X16X1.2)

€ 1.50

19

0916906055
ref: 19

WASHER

€ 2.00

20

0831921068
ref: 20

NUT 6MM

€ 2.00

21

3740012E01
ref: 21
<-37400-12E00

SWITCH ASSY,HANDLE,L

€ 157.00

22

0211205455
ref: 22

SCREW, 5X45

€ 4.00

all assemblies
