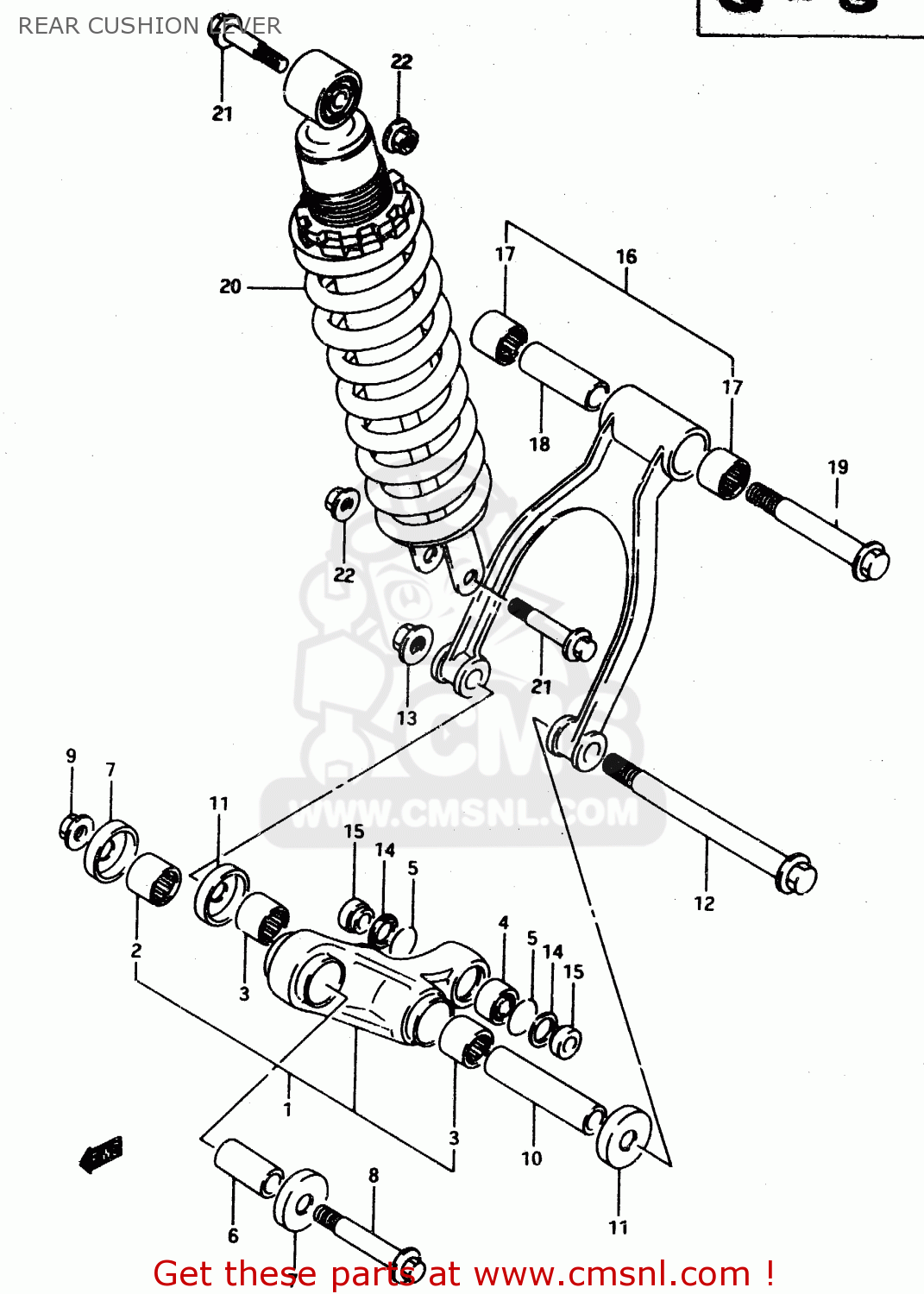

REAR CUSHION LEVER

ref

part #

description

quantity

1

6260012871
ref: 1

LEVER SET,REAR CUSHION

€ 219.00

2

0926320073
ref: 2

BEARING(20X27X30)

€ 24.50

3

0926320071
ref: 3

BEARING(20X27X23.5)

€ 21.50

4

6217500B00
ref: 4
<-62175-27C00

BEARING,RR CUSHION LEVER

€ 66.00

5

6265734A01
ref: 5

RING,STOPPER

€ 1.50

6

6231744B00
ref: 6

SPACER,RR CUSHION LEVER FR

€ 14.00

7

6262408D00
ref: 7

SEAL,RR CUSHION LEVER FR DUST

€ 13.50

8

6265800B20
ref: 8

BOLT,RR CUSHION LEVER FR

€ 8.50

9

0831931128
ref: 9

NUT 12MM

€ 4.00

10

0918014013
ref: 10

SPACER (14X20X78)

€ 20.00

11

6262408D10
ref: 11

SEAL,RR CUSHION LEVER CTR DUST

€ 19.50

12

6262244B00
ref: 12

BOLT,RR CUSHION ROD LWR

€ 17.00

13

0831931148
ref: 13

NUT

€ 9.00

14

6222614520
ref: 14

SEAL,DUST RR SHOCK ABSORBER

€ 12.50

15

6268414520
ref: 15

COLLAR

€ 7.00

16

6260044821
ref: 16

ROD SET,REAR CUSHION,LEFT

€ 211.50

17

0926320071
ref: 17

BEARING(20X27X23.5)

€ 21.50

18

0918014015
ref: 18

SPACER (14X20X63)

€ 14.50

19

6262144B00
ref: 19

BOLT,RR CUSHION ROD UPR

€ 14.00

20

6210012E10
ref: 20

ABSORBER ASSY,RR SHOCK

€ 846.50

21

0910310213
ref: 21

BOLT(10X52)

€ 4.00

22

0915910058
ref: 22

NUT

€ 4.00
