RIGHT HANDLE SWITCH
DR650REU 1995 (S) (E22)

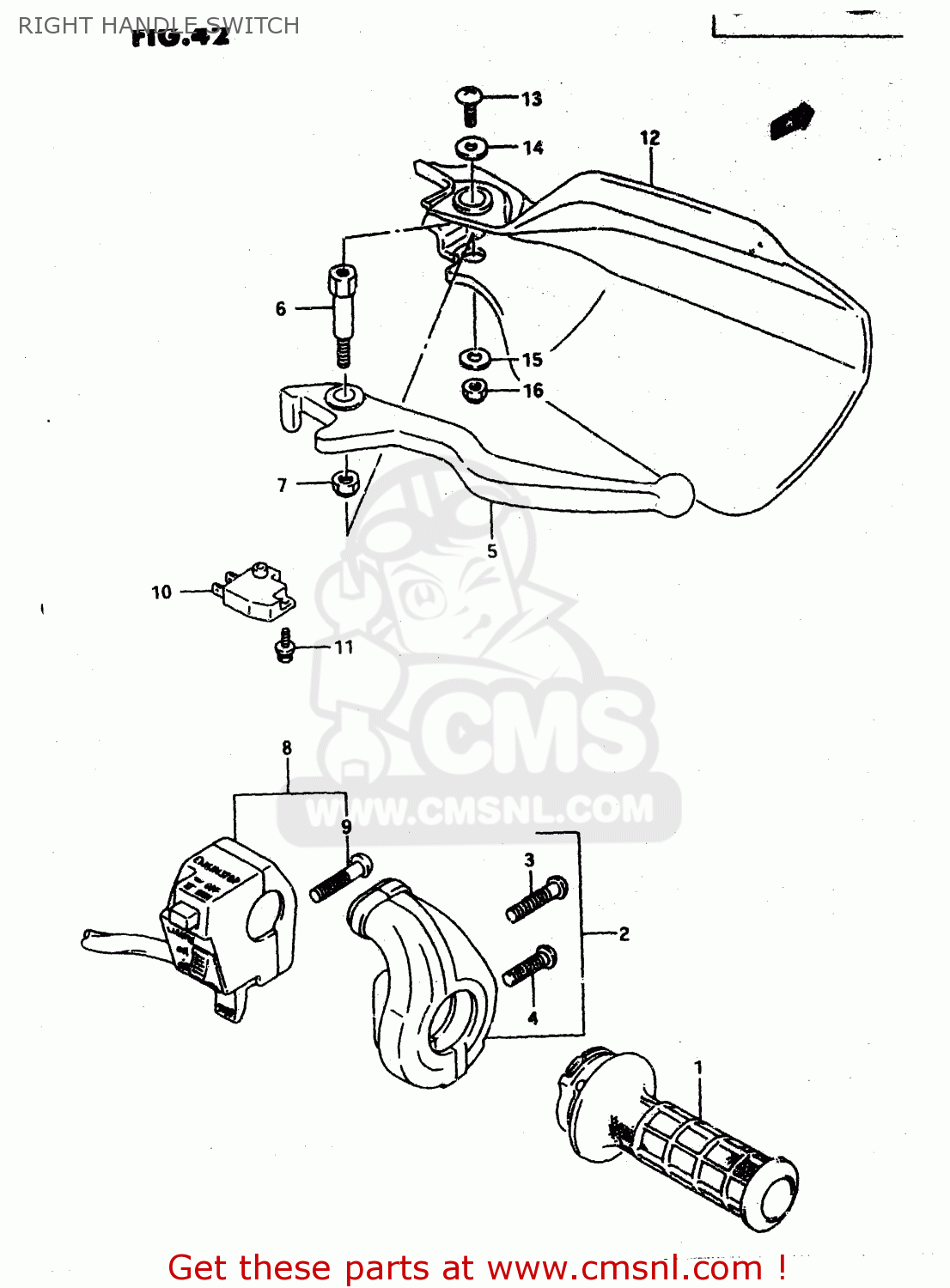

Right handle switch diagram DR650REU 1995 (S) (E22)
RIGHT HANDLE SWITCH DR650REU 1995 (S) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5711012D11
ref: 1
GRIP,THROTTLE
€ 25.50
2
5710014D00
ref: 2
CASE ASSY,THROTTLE
€ 24.00
3
0912505066
ref: 3
SCREW(5X25)
€ 2.00
4
0211205205
ref: 4
SCREW 5X20
€ 2.50
5
5742113001
ref: 5
LEVER,BRAKE
€ 18.00
6
5743105D00
ref: 6
BOLT,BRAKE LEVER PIVOT
€ 9.00
7
0831921065
ref: 7
NUT
€ 2.50
8
3720019D00
ref: 8
SWITCH ASSY,HANDLE,R
€ 103.00
8
3720019D30
ref: 8
E24
SWITCH ASSY,HANDLE,R
€ 0.00
9
0211205455
ref: 9
SCREW, 5X45
€ 4.00
10
5746017C00
ref: 10
SWITCH ASSEMBLY,STOP
€ 32.50
11
5746517C00
ref: 11
SCREW
€ 1.50
12
5734105D000NF
ref: 12
FOR C3K
COVER,KNUCKLE,R
€ 28.00
12
5734105D00019
ref: 12
FOR 019
COVER,KNUCKLE,RIGHT
€ 21.00
13
0214205103
ref: 13
SCREW
€ 2.50
14
0916005017
ref: 14
WASHER (5.5X16X1.2)
€ 2.50
15
0916006042
ref: 15
WASHER (6.5X17X1.6)
€ 2.00
16
0831921068
ref: 16
NUT 6MM
€ 2.00
