OIL PUMP
DR650REU 1995 (S) (E22)

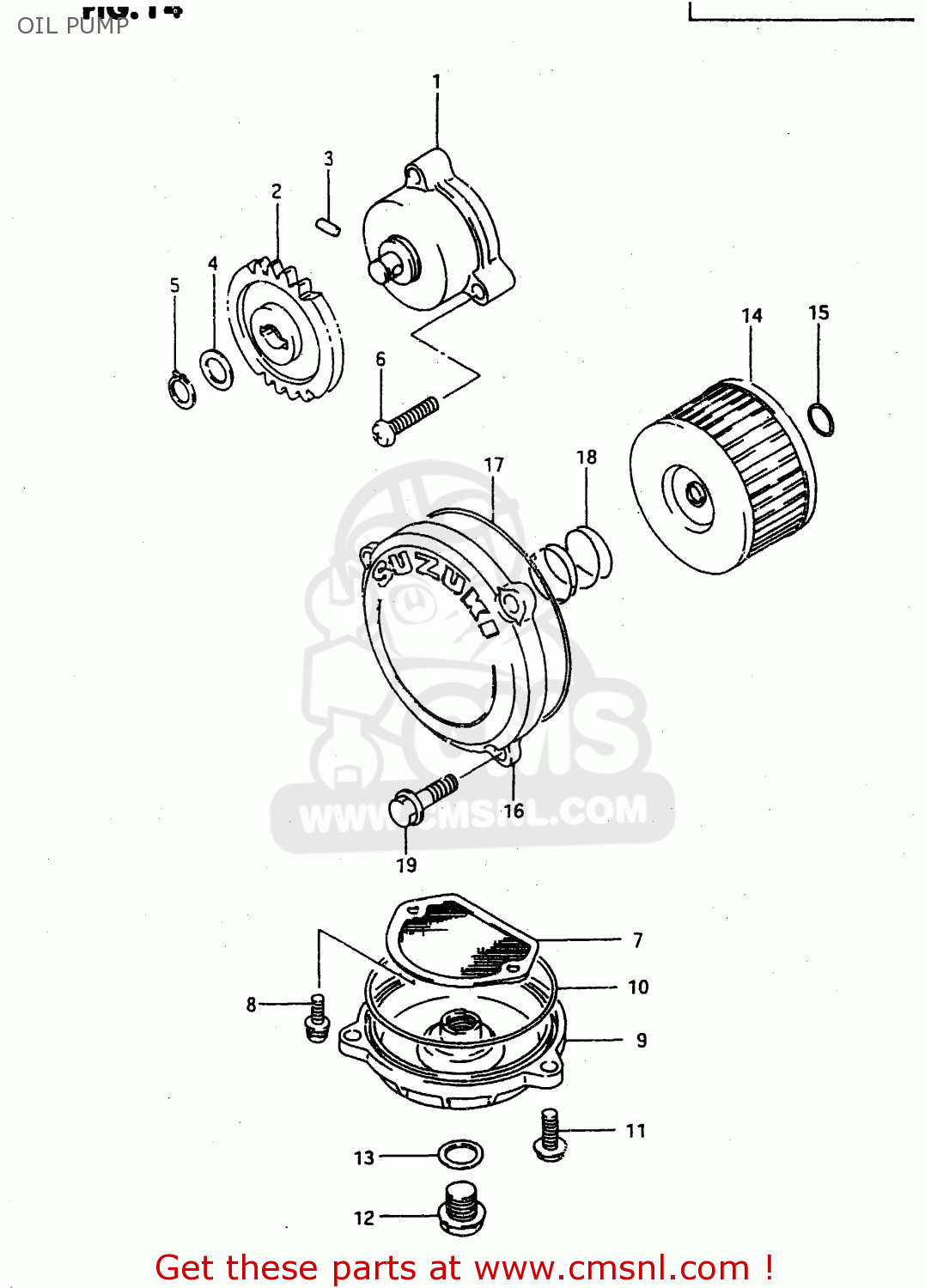

Oil pump diagram DR650REU 1995 (S) (E22)
OIL PUMP DR650REU 1995 (S) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1640012D00
ref: 1
PUMP ASSY,ENGINE OIL
€ 156.50
2
1633112D10
ref: 2
GEAR,OIL PUMP DRIVEN
€ 23.50
3
0926104009
ref: 3
PIN(4X15.8)
€ 1.50
4
0822110185
ref: 4
SHIM
€ 2.00
5
0833131106
ref: 5
CIRCLIP,10MM
€ 2.00
6
0211206253
ref: 6
SCREW
€ 1.50
7
1652014A00
ref: 7
STRAINER,ENGINE OIL
€ 8.50
8
0211275123
ref: 8
SCREW
€ 2.50
9
1652337402
ref: 9
CAP,OIL STRAINER
€ 56.00
10
0928082001
ref: 10
O RING(D:2.4,ID:85)
€ 6.50
11
0155006203
ref: 11
BOLT
€ 2.50
12
0924714001
ref: 12
PLUG
€ 5.00
13
0916814002
ref: 13
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
14
1651037440
ref: 14
FILTER,ENGINE OIL
€ 7.50
15
0928015007
ref: 15
O RING(D:2.4,ID:15.8)
€ 2.00
16
1651212E00
ref: 16
CAP,OIL FILTER
€ 26.00
17
0928072001
ref: 17
O RING(D:2.4,ID:73)
€ 5.00
18
0944021006
ref: 18
SPRING
€ 2.50
19
0154706167
ref: 19
BOLT
€ 2.00
