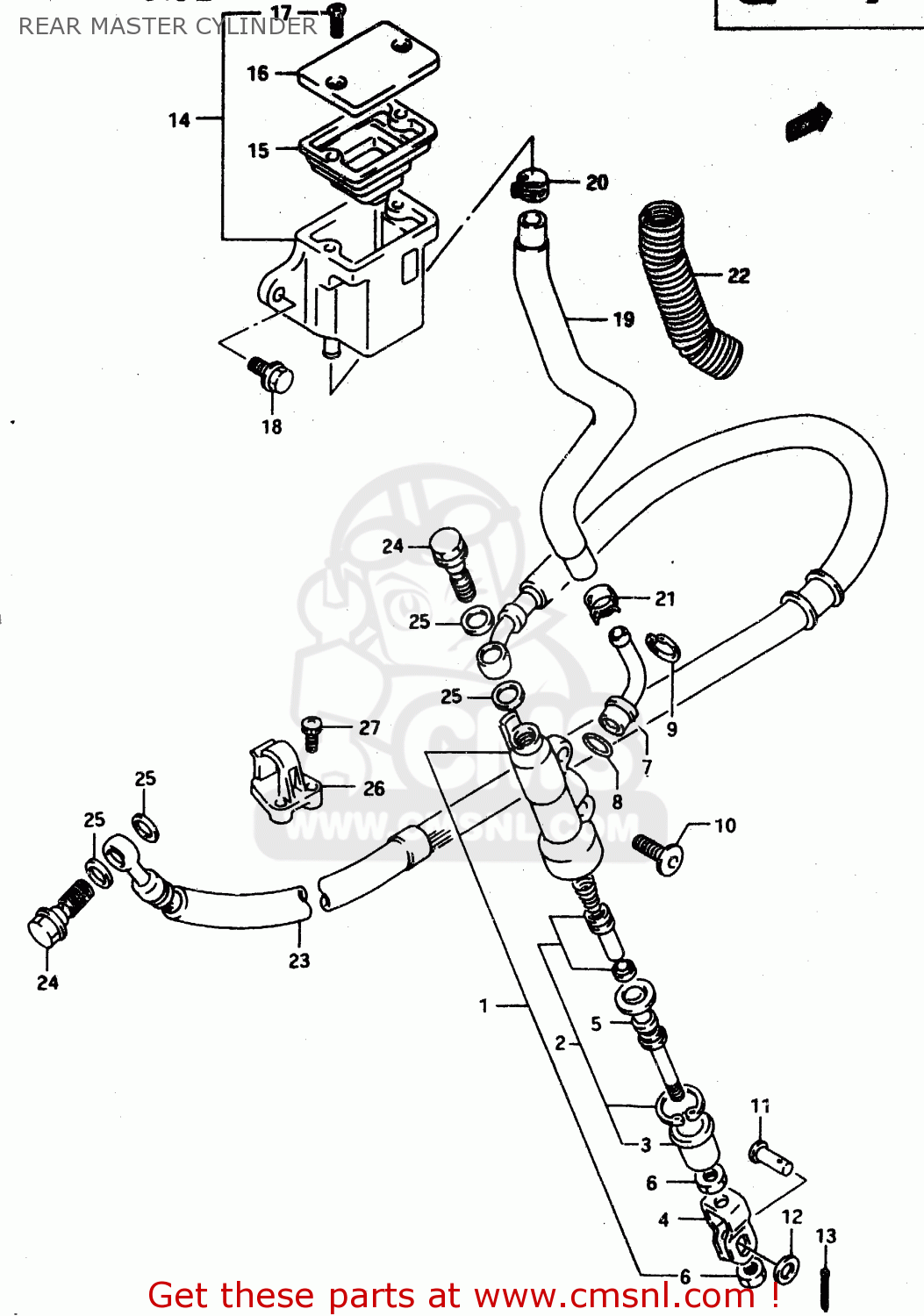

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960014A51
ref: 1

CYLINDER ASSY,RR MASTER

€ 168.50

2

6960034820
ref: 2

PISTON/CUP SET

€ 37.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969227A30
ref: 4

YOKE

€ 12.50

5

6967000B21
ref: 5

ROD,PUSH

€ 24.00

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967200B20
ref: 7

CONNECTOR

€ 5.00

8

6968634200
ref: 8

O RING

€ 3.50

9

6967400B20
ref: 9

CIRCLIP

€ 3.00

10

0910606064
ref: 10

BOLT(6X18)

€ 6.00

11

0920006037
ref: 11

PIN

€ 5.00

12

0832201063
ref: 12

WASHER

€ 2.00

13

0411120158
ref: 13

PIN

€ 1.50

14

6974038B21
ref: 14

TANK ASSY,RESERVOIR

€ 85.50

15

5966704700
ref: 15

DIAPHRAGM

€ 8.00

16

5966905D00
ref: 16

CAP

€ 13.50

17

6968904A00
ref: 17

SCREW

€ 2.00

18

0155006123
ref: 18

BOLT

€ 2.50

19

6973012D00
ref: 19

HOSE COMP,RESERVOIR TANK

€ 16.00

20

0940113413
ref: 20

CLIP

€ 2.50

21

0940112404
ref: 21

CLIP

€ 2.50

22

6973212D10
ref: 22

SHIELD,RSVR TANK HOSE HEAT RR

€ 10.50

23

6948012D00
ref: 23

HOSE COMP,REAR BRAKE

€ 109.50

24

0936010039
ref: 24

BOLT UNION

€ 6.50

25

0916110009
ref: 25

WASHER(10X15X1.5)

€ 2.00

26

6119603D00
ref: 26

GUIDE,RR BRAKE HOSE

€ 3.00

27

0211235163
ref: 27

SCREW

€ 2.50
