FUEL COCK
DR650REU 1995 (S) (E22)

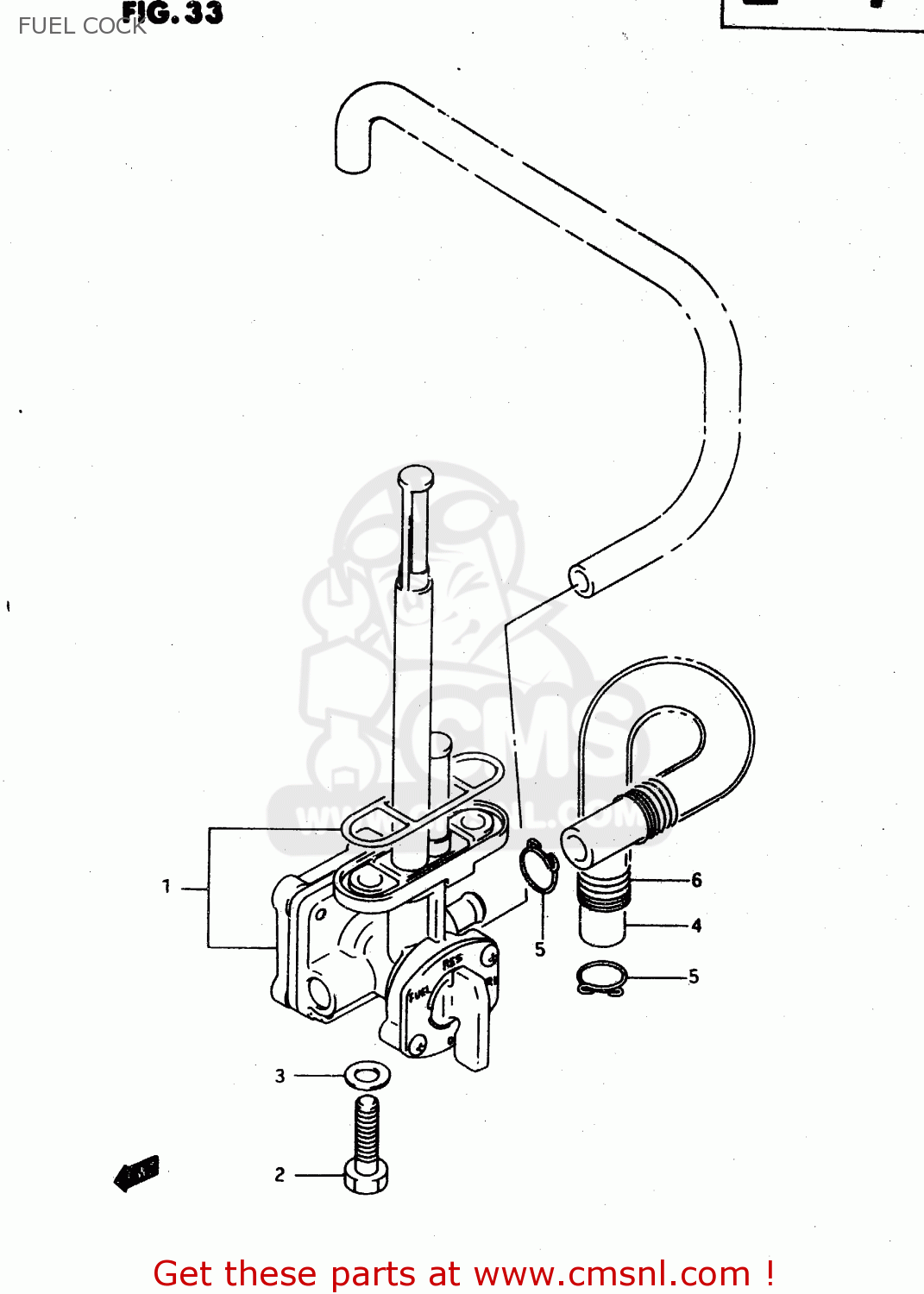

Fuel cock diagram DR650REU 1995 (S) (E22)
FUEL COCK DR650REU 1995 (S) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
4430012E01
ref: 1
COCK ASSY,FUEL
€ 115.00
2
0912806006
ref: 2
BOLT(6X20)
€ 2.00
3
0916806026
ref: 3
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
4
0935470113600
ref: 4
HOSE(7X11X600)
€ 17.50
5
0940112403
ref: 5
CLIP
€ 2.00
6
0944013050
ref: 6
SPRING
€ 3.50
