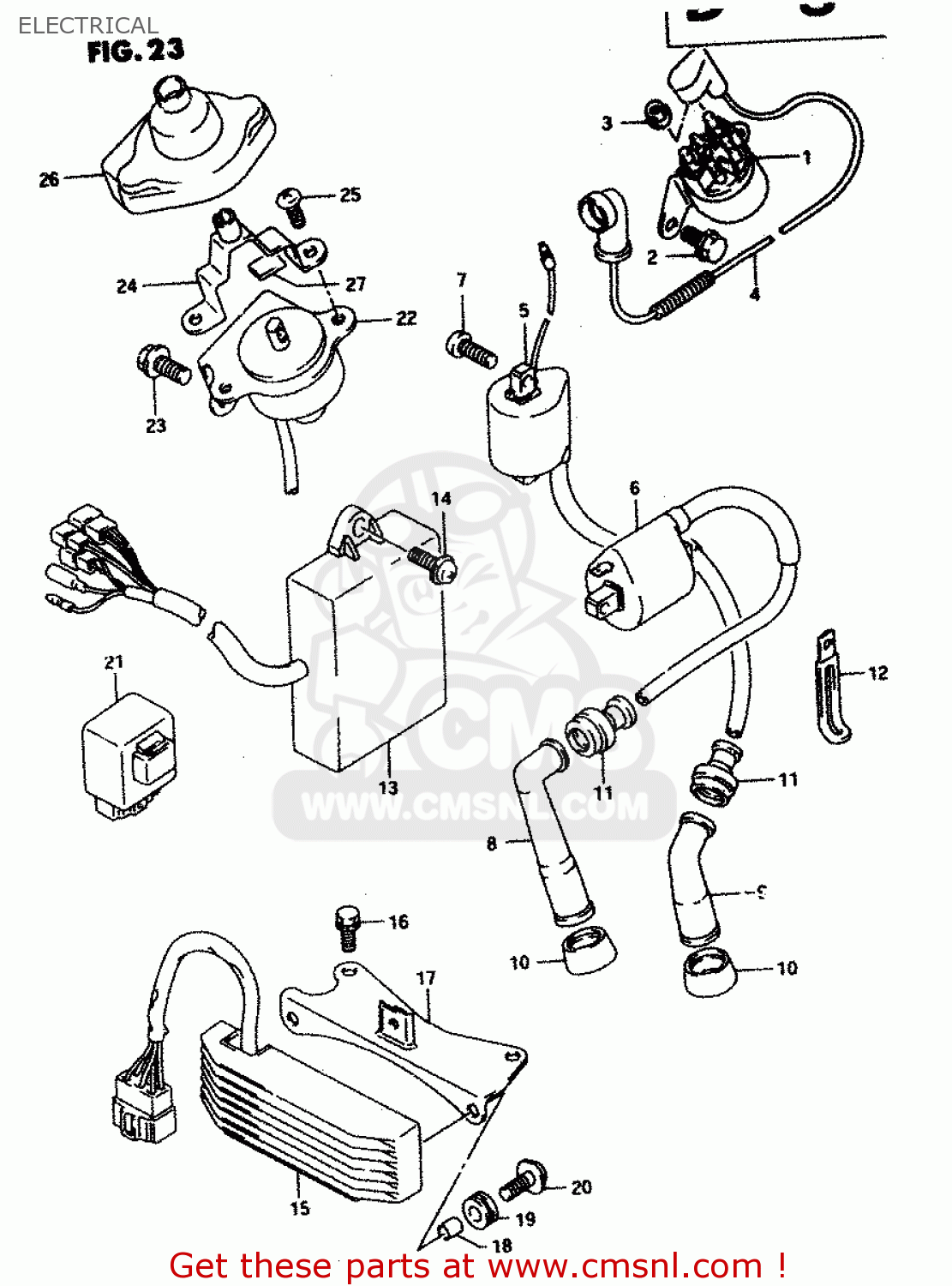

ELECTRICAL

ref

part #

description

quantity

1

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

2

0155006103
ref: 2

BOLT

€ 2.50

3

0836135066
ref: 3

NUT

€ 2.00

4

3381012E00
ref: 4

WIRE,STARTER MOTOR LEAD

€ 0.00

5

3341012D10
ref: 5

COIL ASSY,IGNITION

€ 95.50

6

3341012D20
ref: 6

COIL ASSY,IGNITION

€ 100.00

7

0211206203
ref: 7

SCREW, 6X20

€ 2.00

8

3351045010
ref: 8

CAP ASSY,SPARK PLUG

€ 23.00

9

3351043010
ref: 9

CAP,SPARK PLUG

€ 11.50

10

3354124510
ref: 10

SEAL,SPARK PLUG CAP

€ 7.00

11

3354238B00
ref: 11

SEAL,HIGH TENSION CORD

€ 4.50

12

0940406402
ref: 12

CLAMP

€ 2.50

13

3290012D10
ref: 13

CDI UNIT

€ 521.50

14

0214206163
ref: 14

SCREW

€ 2.50

15

3280012E00
ref: 15

RECTIFIER ASSEMBLY

€ 368.00

16

0155006123
ref: 16

BOLT

€ 2.50

17

3283012E00
ref: 17

BRACKET,RECTIFIER

€ 21.00

18

0918006044
ref: 18

SPACER (6.1X8X9.5)

€ 2.50

19

0932008048
ref: 19

CUSHION

€ 3.00

20

0913606081
ref: 20

SCREW(6X20)

€ 3.00

21

3291031D00
ref: 21

CONTROL UNIT,DECOMP

€ 110.50

22

3397012D00
ref: 22

SOLENOID ASSY,DECOMP

€ 168.00

23

0155008123
ref: 23

BOLT

€ 3.50

24

3397112D00
ref: 24

HOLDER,DECOMPRESSION CABLE

€ 14.50

25

0211206123
ref: 25

SCREW

€ 1.50

26

3397312D00
ref: 26

COVER,DECOMP

€ 12.50

27

3397231D00
ref: 27

CUSHION

€ 4.50

all assemblies
