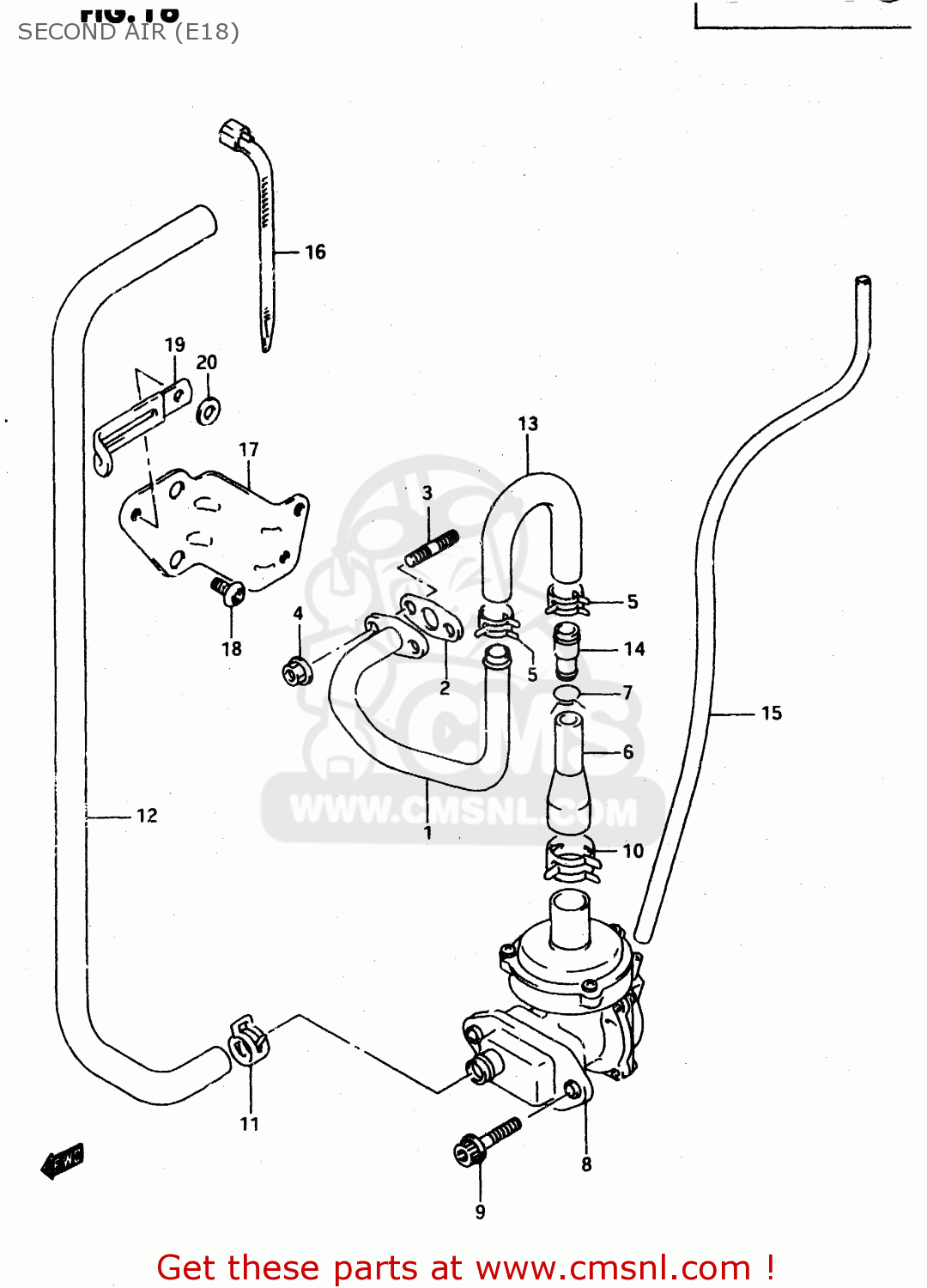

SECOND AIR (E18)

ref

part #

description

quantity

1

1842012E00
ref: 1

PIPE, 2ND AIR

€ 0.00

2

1844145C00
ref: 2

GASKET,SECOND AIR PIPE (N (NAS)

€ 6.00

3

0142106163
ref: 3

STUD BOLT

€ 2.00

4

0831610063
ref: 4

NUT

€ 2.50

5

0940113413
ref: 5

CLIP

€ 2.50

6

1844631D00
ref: 6

HOSE, 2ND AIR

€ 22.00

7

0940115301
ref: 7

CLIP

€ 2.50

8

1845031D00
ref: 8

VALVE ASSY, 2ND AIR REED

€ 0.00

9

0712006163
ref: 9

BOLT MAGNETO S

€ 2.50

10

0940123403
ref: 10

CLIP

€ 4.50

11

0940115404
ref: 11

CLIP

€ 2.50

12

1844531D00
ref: 12

HOSE, 2ND AIR NO.4

€ 0.00

13

1844521E00
ref: 13

HOSE,SECOND AIR REED VALVE

€ 0.00

14

1843214D00
ref: 14

UNION, 2ND AIR HOSE

€ 14.50

15

0935940701600
ref: 15
L:600->350

HOSE(4X7X600)

€ 9.00

16

0940718403
ref: 16

CLAMP L:165

€ 2.50

16

0940714403
ref: 16

CLAMP(L:125)

€ 2.50

16

0940714301
ref: 16

CLAMP

€ 6.00

16

0940725401
ref: 16

CLAMP(L:235)

€ 4.00

17

1662014A10
ref: 17

BRACKET,OIL COOLER UPR

€ 10.00

18

0910608116
ref: 18

BOLT(8X12)

€ 2.50

19

0940406413
ref: 19

CLAMP

€ 2.50

20

0832201063
ref: 20

WASHER

€ 2.00
