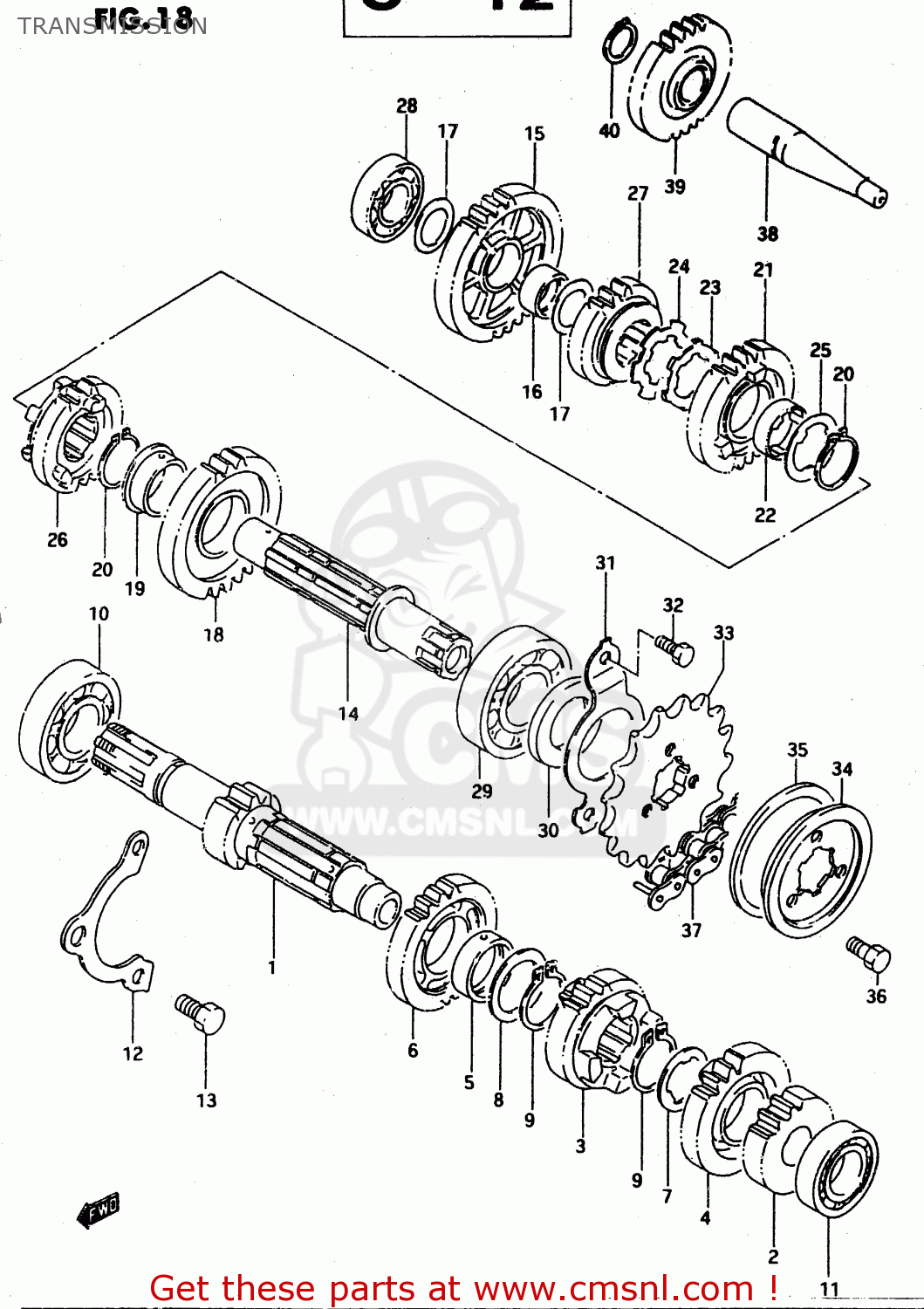

TRANSMISSION

ref

part #

description

quantity

1

2412114A00
ref: 1

SHAFT,COUNTER

€ 185.50

2

2422114A00
ref: 2

GEAR,SECOND DRIVE

€ 66.50

3

2423112D02
ref: 3

GEAR,3RD DRIVE

€ 146.50

4

2424114A00
ref: 4

GEAR,FOURTH DRIVE

€ 69.00

5

0930025023
ref: 5

BUSHING 25X29X10

€ 9.50

6

2425114A00
ref: 6

GEAR,5TH DRIVE

€ 105.00

7

0916725012
ref: 7

WASHER,LOCK

€ 3.50

8

0821125341
ref: 8

WASHER

€ 3.50

9

0938025003
ref: 9

RING,SNAP

€ 3.00

10

0926222014
ref: 10

BEARING

€ 59.50

11

0926217018
ref: 11

BEARING

€ 25.00

12

2474114A00
ref: 12

RETAINER,CNTR SHAFT BEARING

€ 5.00

13

0150008163
ref: 13

BOLT

€ 2.00

14

2413114A00
ref: 14

SHAFT,DRIVE

€ 121.00

15

2431114A01
ref: 15

GEAR,1ST DRIVEN

€ 67.50

16

0930020032
ref: 16

BUSH(20X24X13)

€ 10.00

17

0821120301
ref: 17

WASHER

€ 3.00

18

2432114A00
ref: 18

GEAR,2ND DRIVEN

€ 118.00

19

0930125002
ref: 19

BUSH

€ 10.50

20

0938025003
ref: 20

RING,SNAP

€ 3.00

21

2433114A05
ref: 21

GEAR,3RD DRIVEN

€ 329.50

22

2433224500
ref: 22

BUSHING

€ 9.50

23

0916925001
ref: 23

WASHER

€ 2.00

24

0916725013
ref: 24

WASHER,LOCK

€ 2.50

25

0916725016
ref: 25

WASHER,LOCK

€ 3.00

26

2434114A01
ref: 26

GEAR,FOURTH DRIVEN

€ 67.00

27

2435114A00
ref: 27

GEAR,FIFTH DRIVEN

€ 68.50

28

0926220059
ref: 28

BEARING(20X42X12)

€ 14.50

29

0926225066
ref: 29

BEARING(25X62X17)

€ 44.50

30

0928325076
ref: 30

SEAL,OIL(25X45X5)

€ 9.00

31

2475114A01
ref: 31

RETAINER,DRIVE SHAFT OIL SEAL

€ 7.50

32

0150006123
ref: 32

BOLT

€ 2.00

33

2751114A01
ref: 33

SPROCKET,ENGINE(NT:16)

€ 30.00

34

2751214A11
ref: 34

PLATE,ENGINE SPROCKET

€ 9.50

35

2751714A00
ref: 35

DAMPER,ENGIN SPROCKET

€ 14.00

36

0911106039
ref: 36

BOLT(6X13)

€ 6.00

37

2760014A10114
ref: 37
<-27600-13A60-114

CHAIN(DID520V,114L)

€ 112.00

38

2622314A01
ref: 38

SHAFT,KICK STARTER IDLE

€ 16.50

39

2626037400
ref: 39

GEAR,KICK STARTER IDLE

€ 36.00

40

0938017001
ref: 40

CIRCLIP

€ 2.00
