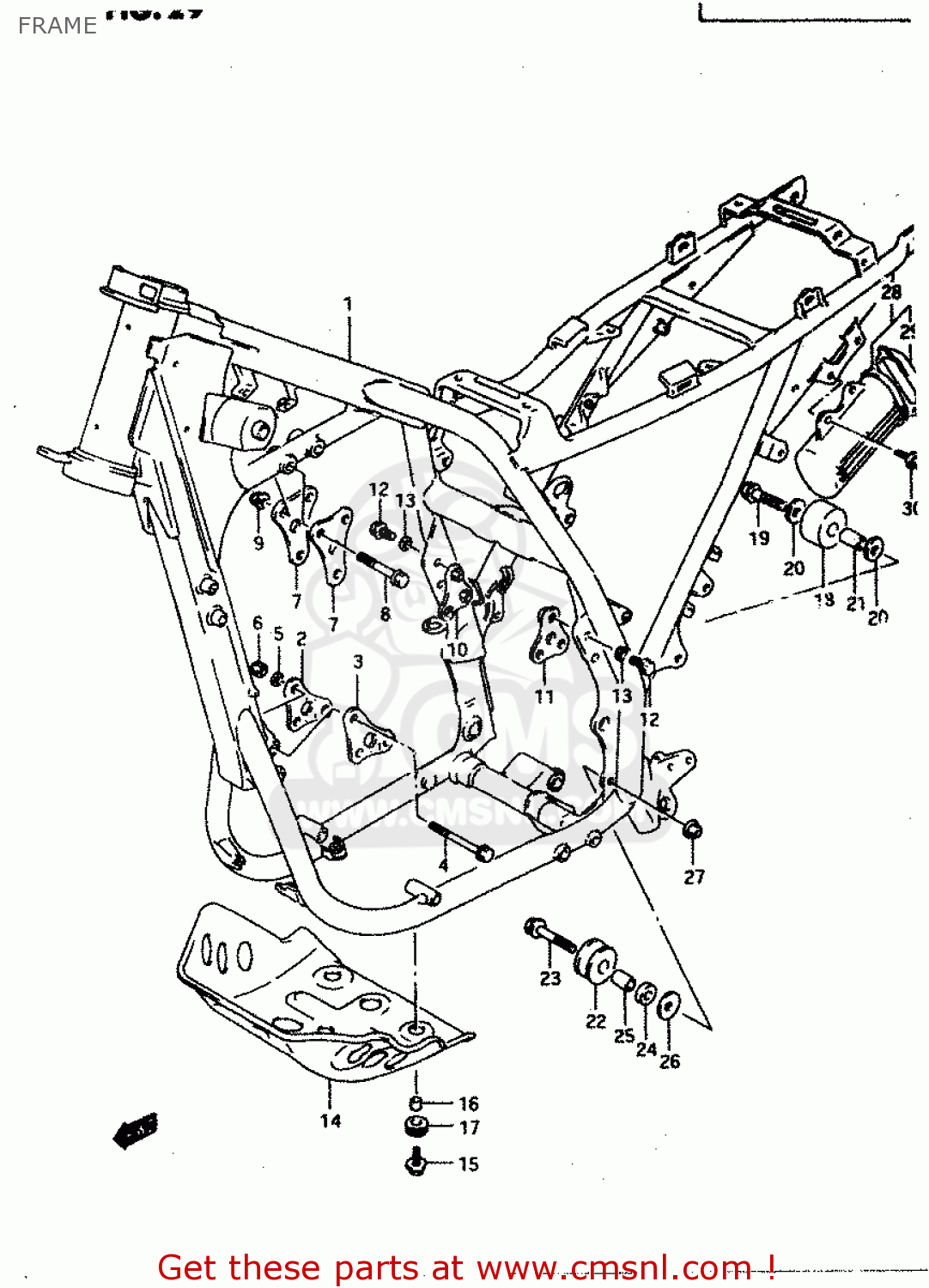

FRAME

ref

part #

description

quantity

1

4110012E200NF
ref: 1

FRAME COMP

€ 0.00

1

4110012E20019
ref: 1

FRAME COMP

€ 1,934.00

2

4191112D00019
ref: 2

PLATE,ENG MTG FR,R

€ 9.50

3

4192112D00019
ref: 3

PLATE,ENG MTG FR,L

€ 9.00

4

0910308279
ref: 4

BOLT(8X72)

€ 4.50

5

0832101083
ref: 5

LOCK WASHER

€ 2.50

6

0831921085
ref: 6

NUT

€ 1.50

7

4199112D10
ref: 7

PLATE,ENGINE MOUNTING,UPPER

€ 15.50

8

0910308289
ref: 8

BOLT(8X50)

€ 5.00

9

0831931085
ref: 9

NUT

€ 2.50

10

4194012D00019
ref: 10

PLATE,ENG MTG RR,R

€ 12.00

11

4195012D01019
ref: 11

PLATE,ENG MTG RR,L

€ 10.50

12

0910308266
ref: 12

BOLT(8X20)

€ 2.50

13

0832101083
ref: 13

LOCK WASHER

€ 2.50

14

4251112D10
ref: 14

PROTECTOR,ENGINE

€ 279.00

15

0911806087
ref: 15

BOLT 6X20

€ 3.00

16

0918007005
ref: 16

SPACER (7X9X7)

€ 2.50

17

0932008021
ref: 17

CUSHION

€ 4.00

18

4391101B10
ref: 18

ROLLER,CHAIN CONTROL

€ 14.50

19

0910308083
ref: 19

BOLT(8X41)

€ 3.50

20

0916008021
ref: 20

WASHER (8.2X24X1.6)

€ 2.00

21

0918008136
ref: 21

SPACER (8.6X13.8X28)

€ 9.00

22

4391135B00
ref: 22

ROLLER,CHAIN CONTROL

€ 14.50

23

0910308082
ref: 23

BOLT 8X50

€ 7.00

24

0918008141
ref: 24

SPACER(8.5X15X8.5)

€ 3.50

25

0918008119
ref: 25

SPACER(8.6X12X25.5)

€ 6.50

26

0821108201
ref: 26

WASHER

€ 2.00

27

0831931085
ref: 27

NUT

€ 2.50

28

4155037210
ref: 28

HOLDER,TOOL

€ 20.50

29

4155237210
ref: 29

CAP,HOLDER

€ 5.00

30

0911606006
ref: 30

BOLT(6X16)

€ 2.00
