CLUTCH
DR650SE 2013 (L3) USA (E03)

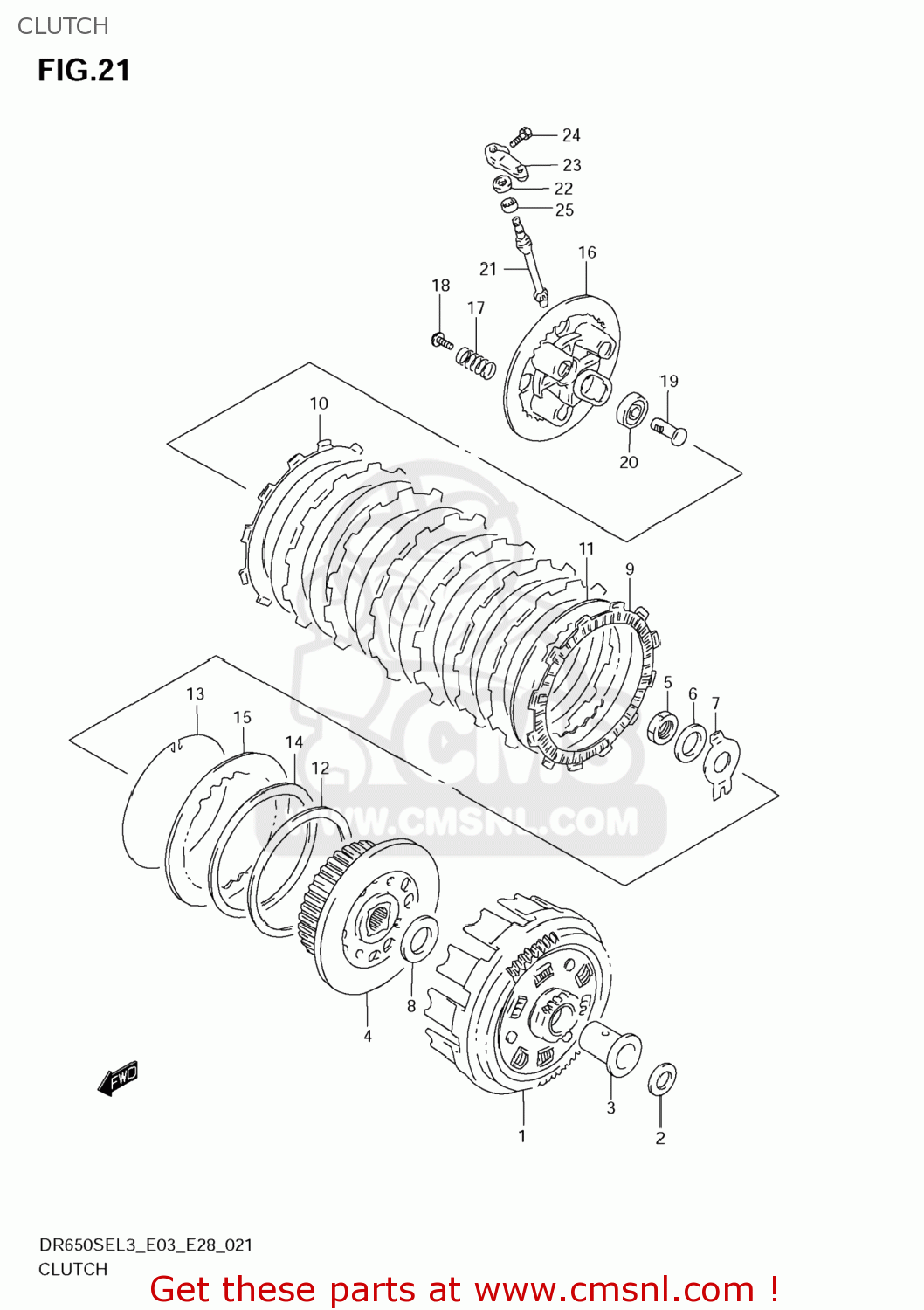

Clutch diagram DR650SE 2013 (L3) USA (E03)
CLUTCH DR650SE 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120044B21
ref: 1
GEAR ASSY,PRI DRIVEN
€ 296.00
2
0916022032
ref: 2
WASHER(22X32X3)
€ 4.00
3
2125132E00
ref: 3
SPACER,PRIMARY DRIVEN GEAR
€ 18.00
4
2141044B00
ref: 4
HUB,CLUTCH SLEEVE
€ 95.50
5
0914020001
ref: 5
NUT
€ 3.50
6
0916420002
ref: 6
WASHER
€ 3.50
7
0916920005
ref: 7
WASHER
€ 2.50
8
0916022068
ref: 8
WASHER(22X44X2)
€ 9.00
9
2144131D00
ref: 9
PLATE,CLUTCH DRIVE (NAS)
€ 16.00
10
2144144B01
ref: 10
PLATE,CLUTCH DRIVE (NAS)
€ 13.50
11
2145144B00
ref: 11
PLATE,CLUTCH DRIVEN NO.1 (NAS)
€ 7.00
12
2147149100
ref: 12
SEAT,WAVE WASHER
€ 8.00
13
2148145100
ref: 13
RING,STOPPER
€ 5.00
14
0916400003
ref: 14
WASHER
€ 9.00
15
2145149200
ref: 15
PLATE,CLUTCH DRIVEN (NAS)
€ 6.00
16
2146231D00
ref: 16
DISC,CLUTCH PRESSURE
€ 38.50
17
0944020016
ref: 17
SPRING
€ 5.00
18
0911606168
ref: 18
BOLT(6X16)
€ 2.50
19
2316531D00
ref: 19
RACK,CLUTCH RELEASE
€ 17.00
20
0815062007
ref: 20
BEARING
€ 15.50
21
2326132E00
ref: 21
PINION,CLUTCH RELEASE
€ 39.00
22
0928510004
ref: 22
SEAL,OIL(10X17X5)
€ 3.50
23
2327131D00
ref: 23
ARM,CLUTCH RELEASE
€ 27.50
24
015000616A
ref: 24
BOLT
€ 2.00
25
0926312024
ref: 25
BEARING(12X16X10)
€ 11.00
