Buy Suzuki DR Parts Online


CRANK BALANCER

DR650SE 2013 (L3) USA (E03)

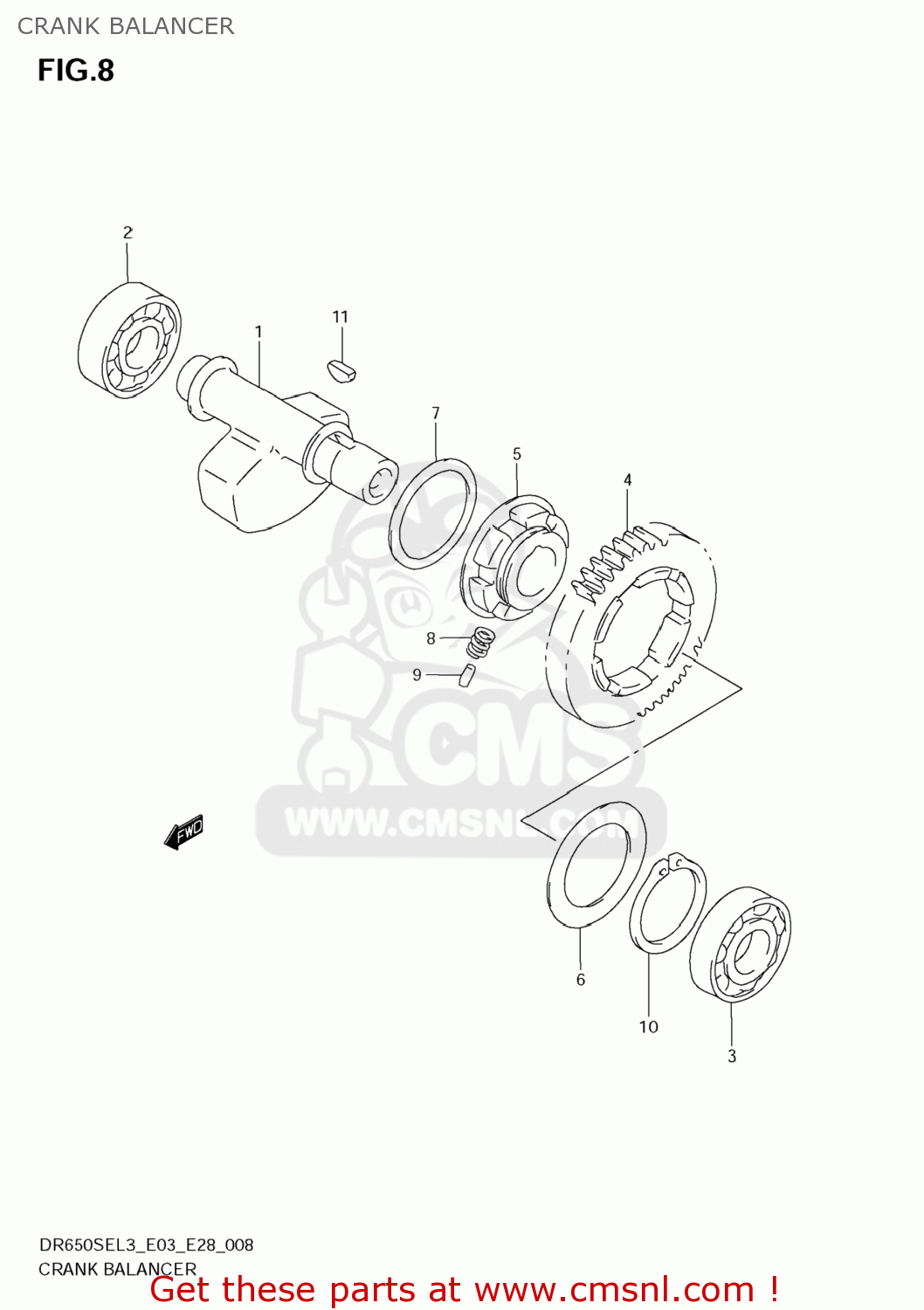

Crank balancer diagram DR650SE 2013 (L3) USA (E03)

CRANK BALANCER DR650SE 2013 (L3) USA (E03)
CRANK BALANCER DR650SE 2013 (L3) USA (E03)
CRANK BALANCER DR650SE 2013 (L3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1265132E00
ref: 1
BALANCER,CRANK
€ 110.00
2
0926222029
ref: 2
BEARING(22X56X16)
€ 45.50
3
0926220121
ref: 3
BEARING(20X47X14)
0926220121
€ 28.00
4
1266632E00
ref: 4
GEAR,CRANK BAL DRIVEN(NT:43)
1266632E00
€ 91.50
5
1266932E00
ref: 5
RACE,CRK BAL DRIVEN GR INNER
€ 52.50
6
0916438003
ref: 6
WASHER
€ 4.00
7
0821138582
ref: 7
WASHER
€ 5.00
8
0944009031
ref: 8
SPRING
0944009031
€ 3.00
9
0920204017
ref: 9
PIN(4.5X9.5)
0920204017
€ 3.00
10
0833131383
ref: 10
CIRCLIP
0833131383
€ 2.50
11
0942004008
ref: 11
KEY
0942004008
€ 3.50
