STEERING STEM
DR650SE 2013 (L3) USA (E03)

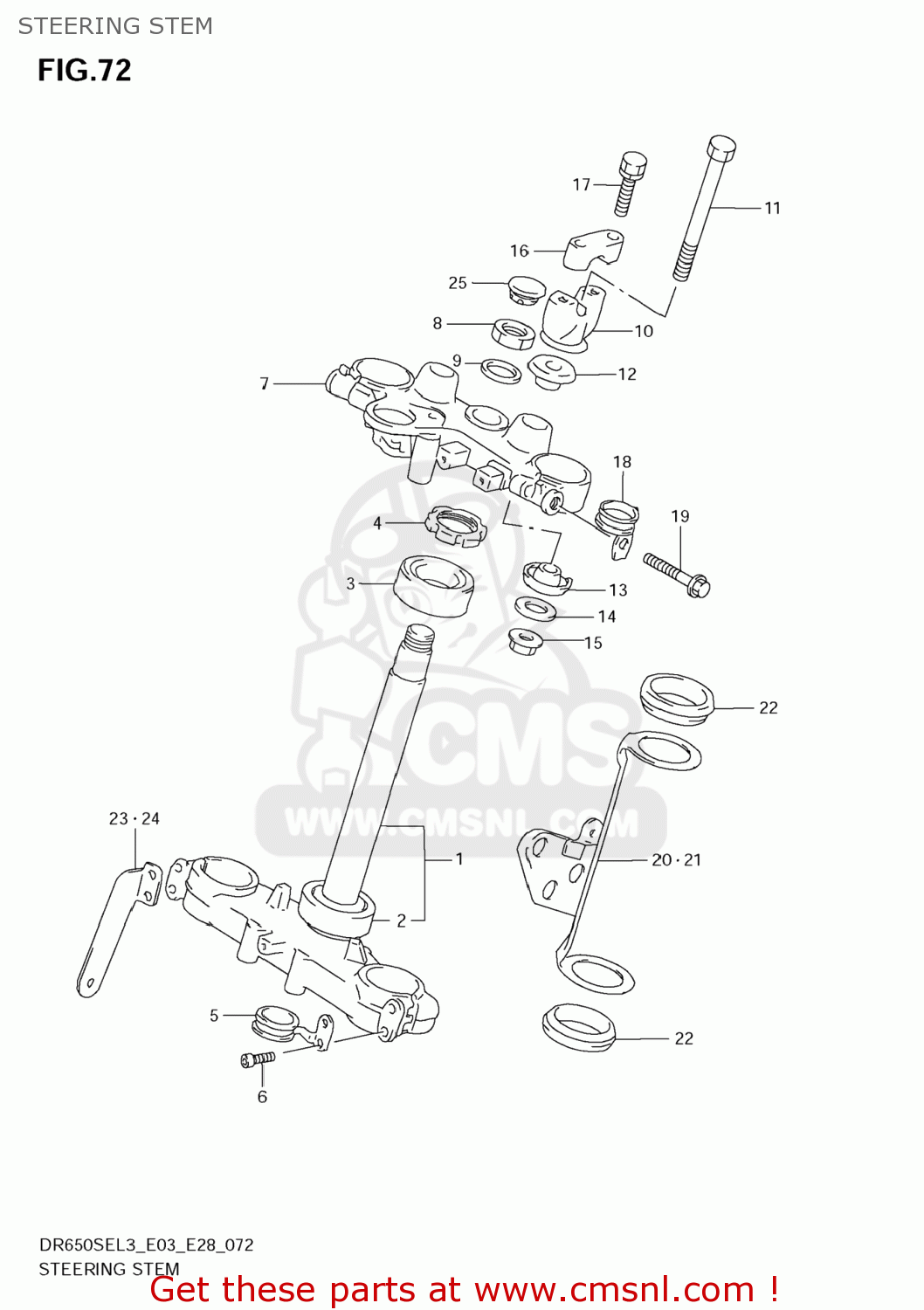

Steering stem diagram DR650SE 2013 (L3) USA (E03)
STEERING STEM DR650SE 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141032E00
ref: 1
STEM,STEERING
€ 497.00
2
0926530014
ref: 2
BEARING(30X52X16)
€ 49.50
3
0926530014
ref: 3
BEARING(30X52X16)
€ 49.50
4
5163128E00
ref: 4
NUT,STEERING
€ 11.00
5
5145332E10
ref: 5
GUIDE,BRAKE HOSE LWR
€ 16.00
6
0713008407
ref: 6
BOLT
€ 3.50
7
5131132E00
ref: 7
HEAD,STEERING STEM
€ 287.00
8
5135332E00
ref: 8
NUT
€ 18.50
9
5135627C00
ref: 9
WASHER,STEM HEAD(24.5X34X1.6)
€ 2.50
10
5622114330291
ref: 10
HOLDER,HANDLE LWR
€ 25.50
11
5632128C00
ref: 11
BOLT
€ 6.50
12
5624114A00
ref: 12
DAMPER,UPR
€ 25.00
13
5624214200
ref: 13
DAMPER,LWR
€ 21.50
14
0916010035
ref: 14
WASHER(10.5X28X2.3)
€ 2.00
15
0831931107
ref: 15
NUT
€ 3.00
16
5621129320291
ref: 16
HOLDER,HANDLE(BLACK)
€ 12.00
17
015700835A
ref: 17
BOLT
€ 2.00
18
5128832E00
ref: 18
CLIP
€ 16.00
19
015501040B
ref: 19
BOLT
€ 4.00
20
5153032E00
ref: 20
COVER,FORK,R
€ 51.00
21
5154032E00
ref: 21
COVER,FORK,L
€ 51.00
22
5155315D00
ref: 22
DAMPER,HEADLAMP HSG BRACKET
€ 5.00
23
3595644B01
ref: 23
BRACKET,FR SIDE REFLECTOR,R
€ 7.50
24
3595744B01
ref: 24
BRACKET,FR SIDE REFLECTOR,L
€ 7.50
25
0925012006
ref: 25
CAP(OD:20)
€ 3.00
