REAR WHEEL (DR650SEL3 E33)
DR650SE 2013 (L3) USA (E03)

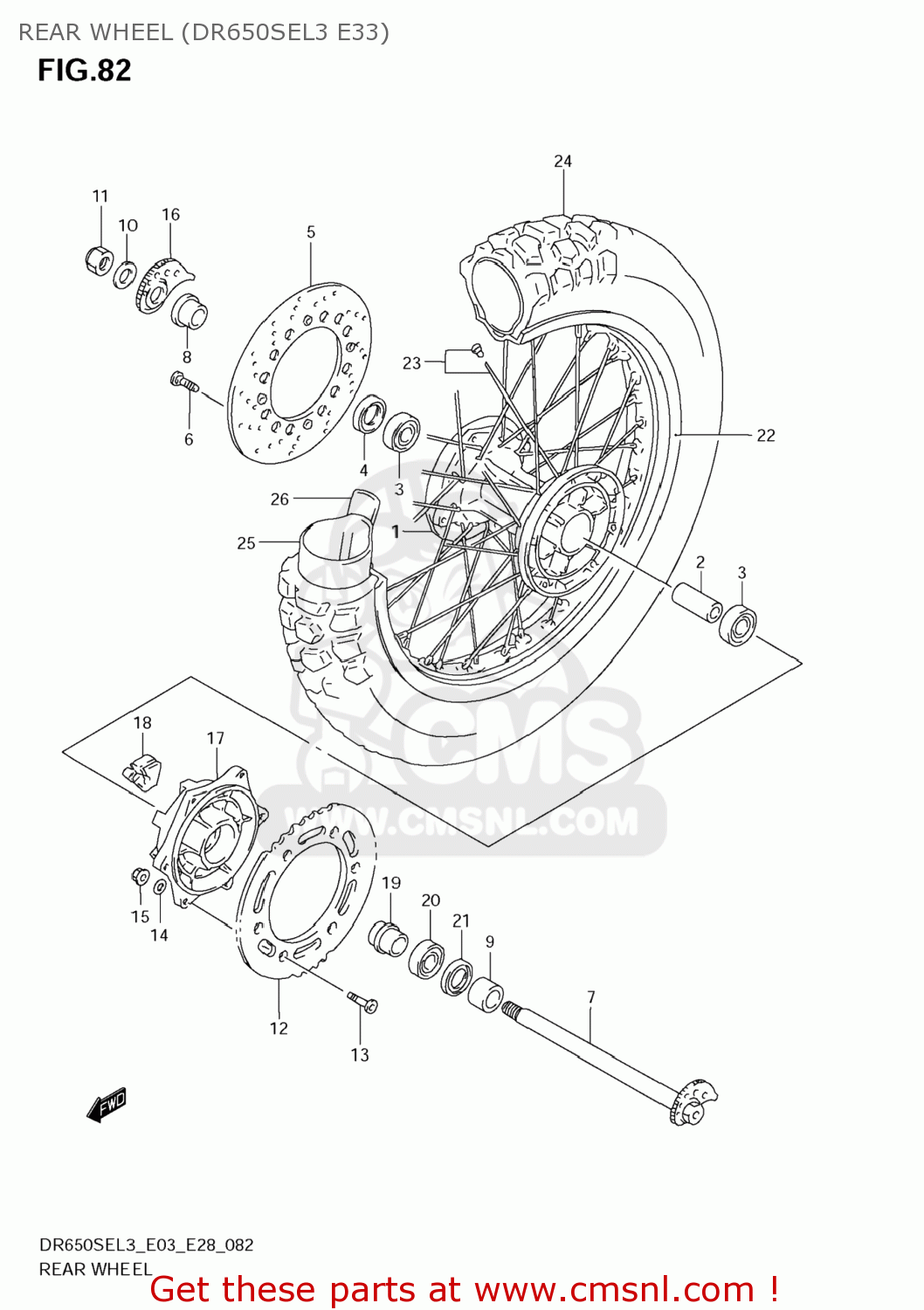

Rear wheel (dr650sel3 e33) diagram DR650SE 2013 (L3) USA (E03)
REAR WHEEL (DR650SEL3 E33) DR650SE 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411115D10
ref: 1
HUB,RR WHEEL
€ 216.00
2
6473115D00
ref: 2
SPACER,RR HUB BEARING
€ 14.00
3
0812362047
ref: 3
BEARING
€ 17.00
4
0928326019
ref: 4
SEAL,OIL(26X47X5)
€ 9.50
5
6921132E01
ref: 5
DISC,RR BRAKE
€ 130.50
6
0910608155
ref: 6
BOLT(8X20)
€ 4.00
7
6471032E00
ref: 7
AXLE,RR
€ 74.00
8
6474105D00
ref: 8
SPACER,RR AXLE,R
€ 9.00
9
6475115D00
ref: 9
SPACER,RR AXLE,L
€ 17.50
10
0916019022
ref: 10
WASHER(19X32X3.2)
€ 5.00
11
083192118A
ref: 11
NUT
€ 3.50
12
6451132E00
ref: 12
SPROCKET,RR(NT:42)
€ 0.00
13
0912008010
ref: 13
BOLT(8X30.5)
€ 2.50
14
083220108B
ref: 14
WASHER
€ 1.50
15
083193108A
ref: 15
NUT
€ 2.50
16
6141032E00
ref: 16
ADJUSTER,CHAIN,R
€ 11.50
17
6461115D01
ref: 17
DRUM,RR SPROCKET MOUNTING
€ 75.50
18
6465132E00
ref: 18
ABSORBER,RR HUB SHOCK
€ 7.50
19
6473315D00
ref: 19
RETAINER,RR SPROCKET DRUM
€ 23.00
20
0926225061
ref: 20
BEARING(25X52X15)
€ 27.50
21
0928334003
ref: 21
SEAL,OIL(34X52X6)
€ 9.00
22
6531132E01
ref: 22
RIM,RR WHEEL(17M/CXMT2.50)
€ 565.50
23
6532032E00
ref: 23
SPOKE SET,RR WHEEL
€ 44.00
24
6511032E00
ref: 24
TIRE,RR(120/90-17 64S)
€ 99.50
24
6511032E00
ref: 24
TIRE,RR(120/90-17 64S)
€ 99.50
25
6520032E01
ref: 25
TUBE ASSY,WHEEL INNER
€ 38.00
26
6526132E01
ref: 26
PROTECTOR,WHL INR TUBE
€ 5.50
