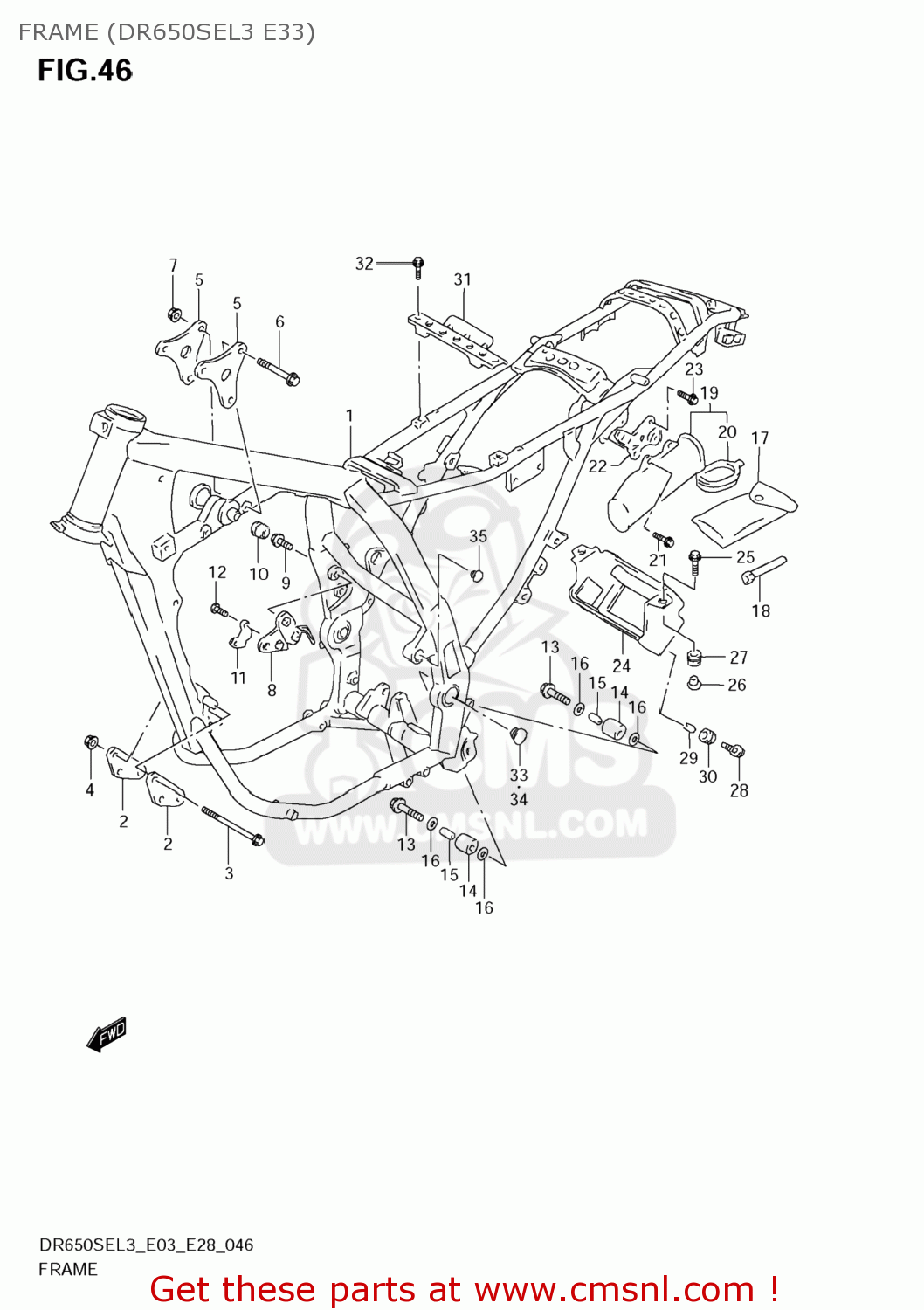

FRAME (DR650SEL3 E33)

ref

part #

description

quantity

1

4110032E20YPT
ref: 1

FRAME(GRAY)

€ 1,710.00

2

4191132E00
ref: 2

PLATE,ENG MTG FR

€ 16.00

3

0910308139
ref: 3

BOLT(8X100)

€ 5.50

4

083193108A
ref: 4

NUT

€ 2.50

5

4199132E00
ref: 5

PLATE,ENG MTG UPR

€ 21.50

6

0910308339
ref: 6

BOLT(8X55)

€ 3.50

7

083193108A
ref: 7

NUT

€ 2.50

8

4193032E00019
ref: 8

PLATE,ENG MTG RR,R

€ 17.00

9

015500820B
ref: 9

BOLT

€ 3.00

10

0925020012
ref: 10

PLUG(OD:22)

€ 5.50

11

4325132E00
ref: 11

BRACKET,STOP SWITCH

€ 8.00

12

021620616B
ref: 12

SCREW

€ 2.50

13

0910308178
ref: 13

BOLT(8X38)

€ 5.00

14

4391113E00
ref: 14

ROLLER,CHAIN CONTROL UPR

€ 10.00

15

0918008119
ref: 15
09180-08156

SPACER(8.6X12X25.5)

€ 6.50

16

0821108201
ref: 16

WASHER

€ 2.00

17

0980021034
ref: 17

TOOL ASSY

€ 55.00

18

0981600100
ref: 18

SPARK PLUG WRENCH(16)

€ 7.50

19

4155032E00
ref: 19

HOLDER,TOOL

€ 31.50

20

4155237210
ref: 20

CAP,HOLDER

€ 5.00

21

0911606006
ref: 21

BOLT(6X16)

€ 2.00

22

4744032E00
ref: 22

BRACKET,TOOL HOLDER

€ 0.00

23

015500616B
ref: 23

BOLT

€ 2.50

24

4154032E00
ref: 24

HOLDER,BATTERY

€ 50.50

25

0911606167
ref: 25

BOLT(6X20)

€ 2.00

26

0916906065
ref: 26

WASHER

€ 3.50

27

0932008021
ref: 27

CUSHION

€ 4.00

28

0911606213
ref: 28

BOLT(6X16)

€ 1.50

29

0918006038
ref: 29

SPACER(6.1X9X7.5)

€ 2.00

30

0932008021
ref: 30

CUSHION

€ 4.00

31

4156132E00
ref: 31

PLATE,BATTERY FITING

€ 9.50

32

015500610B
ref: 32

BOLT

€ 2.50

33

4358532E00
ref: 33

PLUG,FRAME PIVOR,R

€ 3.00

34

4359532E00
ref: 34

PLUG,FRAME PIVOR,L

€ 3.00

35

4358632E00
ref: 35

PLUG,FRAME BOSS

€ 2.50
