CRANKSHAFT
DR650SE 2013 (L3) USA (E03)

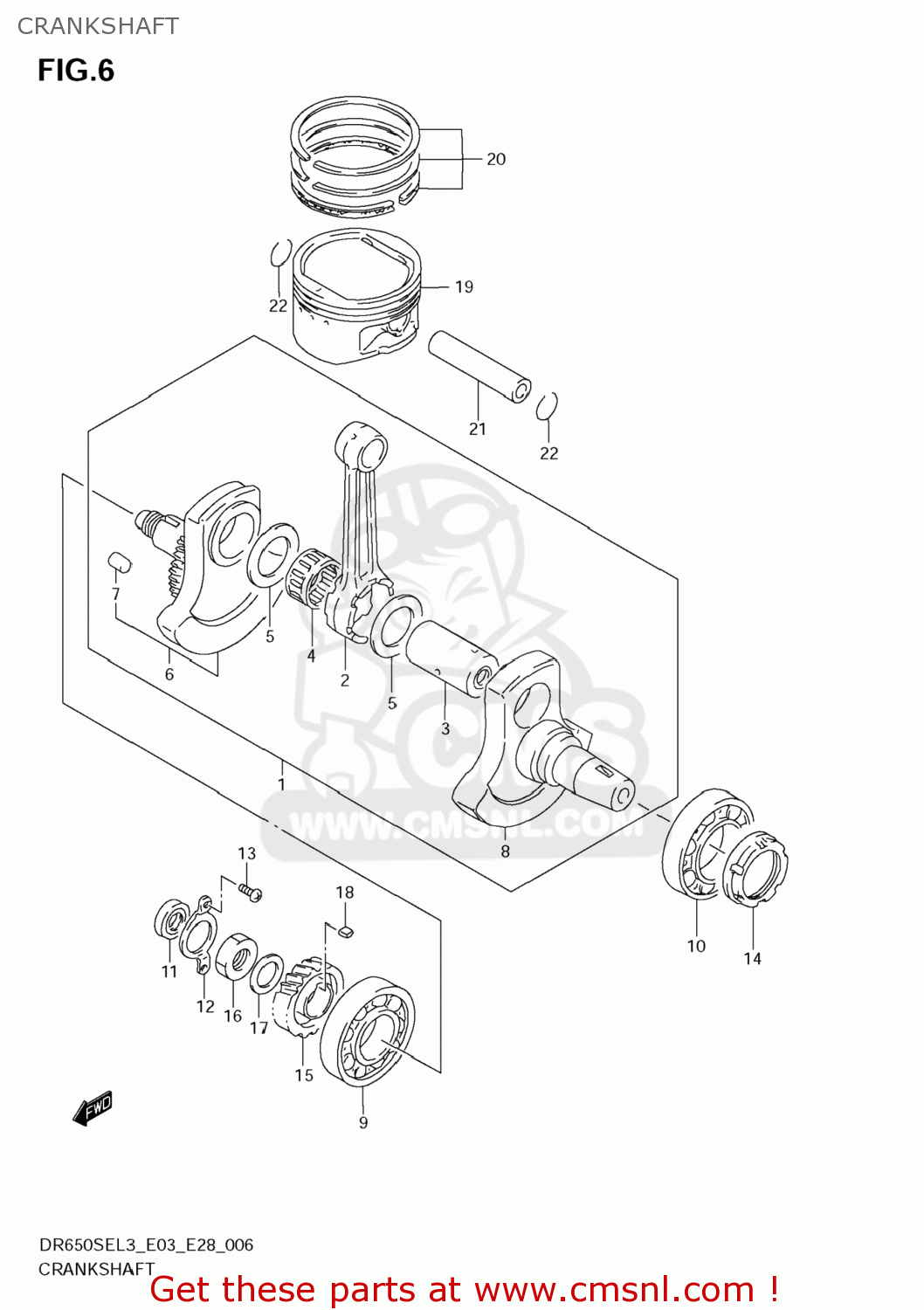

Crankshaft diagram DR650SE 2013 (L3) USA (E03)
CRANKSHAFT DR650SE 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1200032820
ref: 1
CRANKSHAFT SET
€ 554.00
2
1216132E00
ref: 2
CONNECTING ROD
€ 105.00
3
1221132E00
ref: 3
PIN,CRANK
€ 51.00
4
09263370040C0
ref: 4
BEARING(37X47X25)
€ 30.00
5
0916037006
ref: 5
WASHER(37X55X1)
€ 8.50
6
1222132810
ref: 6
CRANKSHAFT SET,R
€ 394.50
7
0926108006
ref: 7
PIN(8X22.5)
€ 2.50
8
1226132E00
ref: 8
CRANKSHAFT,L
€ 301.50
9
0926240008
ref: 9
BEARING(40X80X18)
€ 49.00
10
0926245011
ref: 10
BEARING(45X85X19)
€ 50.00
11
0928216002
ref: 11
SEAL,OIL(16X30X6)
€ 8.50
12
1254837400
ref: 12
RETAINER,CRANKSHAFT BEARING,R
€ 6.50
13
021120508B
ref: 13
SCREW
€ 2.00
14
1266404F00
ref: 14
NUT,CRANKSHAFT BRG,L
€ 30.50
15
2111132E00
ref: 15
GEAR,PRIMARY DRIVE(NT:28)
€ 42.00
16
0914020013
ref: 16
NUT
€ 4.00
17
0916420003
ref: 17
WASHER
€ 2.50
18
0942005007
ref: 18
KEY
€ 3.00
19
1211132E000F0
ref: 19
PISTON (100.00MM)
€ 64.50
20
1214032E10
ref: 20
RING SET,PISTON
€ 52.50
21
1215114A01
ref: 21
PIN,PISTON
€ 18.00
22
0938123003
ref: 22
CIRCLIP
€ 1.50
