REAR CUSHION LEVER (DR650SEL3 E28)
DR650SE 2013 (L3) USA (E03)

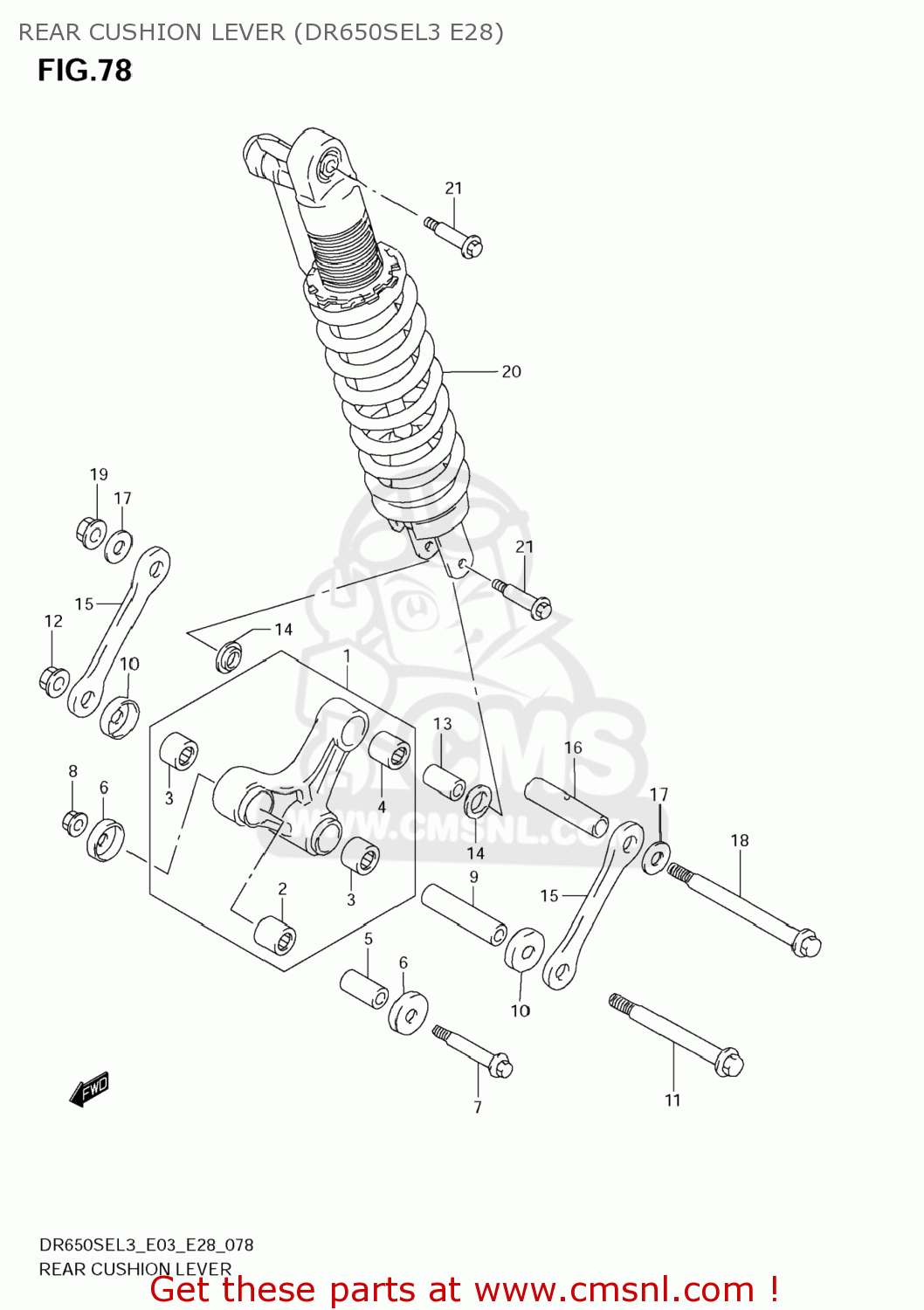

Rear cushion lever (dr650sel3 e28) diagram DR650SE 2013 (L3) USA (E03)
REAR CUSHION LEVER (DR650SEL3 E28) DR650SE 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260032840
ref: 1
LEVER SET,RR CUSHION
€ 237.00
2
0926320073
ref: 2
BEARING(20X27X30)
€ 24.50
3
0926321012
ref: 3
BEARING(21X27X20)
€ 16.50
4
0926317027
ref: 4
BEARING(17X24X20)
€ 13.50
5
6231727C10
ref: 5
SPACER,RR CUSHION LEVER FR
€ 9.00
6
6216228E00
ref: 6
SEAL,RR CUSHION LEVER FR DUST
€ 6.50
7
6265801C60
ref: 7
BOLT,RR CUSHION LEVER FR
€ 6.00
8
083193112A
ref: 8
NUT
€ 4.00
9
6262613E00
ref: 9
SPACER,RR CUSHION LEVER CTR
€ 16.50
10
6268213E00
ref: 10
SEAL,RR CUSHION LEVER CTR
€ 10.00
11
6262127C20
ref: 11
BOLT,RR CUSHION LEVER CTR
€ 18.00
12
083193114A
ref: 12
NUT
€ 9.00
13
6268440A10
ref: 13
SPACER,RR CUSHION LEVER
€ 11.50
14
6262413E00
ref: 14
SEAL,RR CUSHION LEVER RR DUST
€ 8.50
15
6264132E00
ref: 15
ROD,RR CUSHION LEVER
€ 66.50
16
6262614D00
ref: 16
SPACER,RR CUSHION LEVER CTR
€ 20.00
17
0821114321
ref: 17
WASHER
€ 4.00
18
6262117C00
ref: 18
SHAFT,RR CUSHION LEVER FR
€ 9.50
19
083193114A
ref: 19
NUT
€ 9.00
20
6210032E0128W
ref: 20
ABSORBER ASSY,RR SHOCK
€ 750.50
20
6210032E0128W
ref: 20
ABSORBER ASSY,RR SHOCK
€ 750.50
21
6264814500
ref: 21
BOLT,RR CUSHION ROD UPR
€ 3.00
