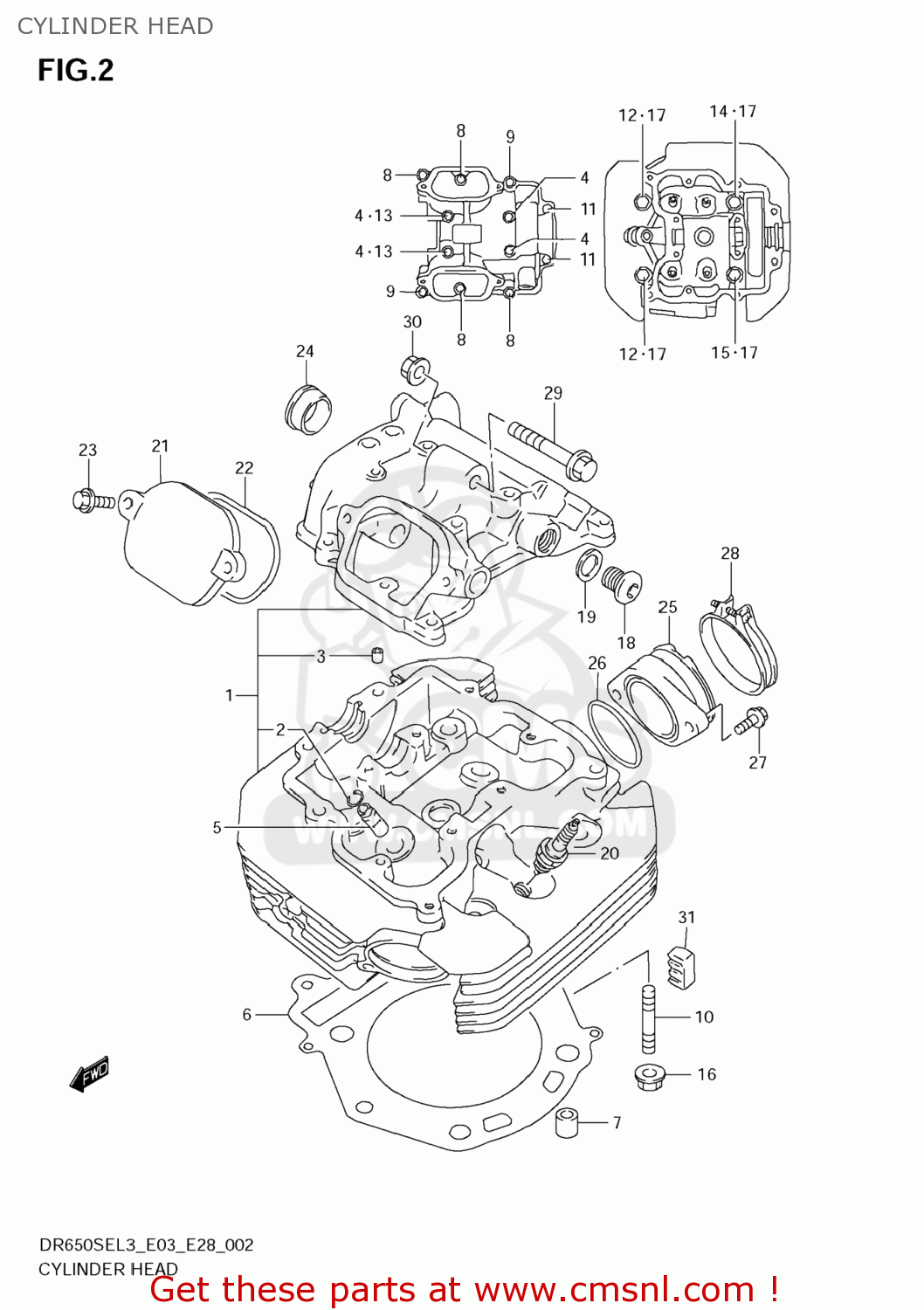

CYLINDER HEAD

ref

part #

description

quantity

1

1110032E20
ref: 1

HEAD ASSY,CYLINDER

€ 0.00

2

0938110004
ref: 2

RING,SNAP

€ 1.50

3

0920608001
ref: 3

PIN(6.2X8X11)

€ 2.00

4

0910306102
ref: 4

BOLT(6X55)

€ 2.50

5

1111532E70
ref: 5

GUIDE,VALVE

€ 18.50

6

1114132E00
ref: 6

GASKET,CYLINDER HEAD

€ 31.00

7

0421113189
ref: 7

PIN

€ 2.50

8

015500625A
ref: 8

BOLT

€ 2.50

9

015500630A
ref: 9

BOLT

€ 2.50

10

0910808142
ref: 10

BOLT,STUD

€ 3.00

11

0910306167
ref: 11

BOLT(6X115)

€ 4.50

12

0910310178
ref: 12

BOLT(10X180)

€ 12.50

13

0916806023
ref: 13

GASKET(5.8X13X1.2) (NAS)

€ 2.00

14

0910310179
ref: 14

BOLT(10X190)

€ 12.50

15

0910310180
ref: 15

BOLT(10X200)

€ 10.50

16

083161008A
ref: 16

NUT

€ 2.50

17

0916810017
ref: 17

GASKET(10.5X22X2) (NAS)

€ 3.50

18

0924814012
ref: 18

PLUG,14X12

€ 5.00

19

0916814002
ref: 19
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

20-1

0948200460
ref: 20-1

PLUG,SPARK(CR10E)

€ 8.50

20-2

0948200461
ref: 20-2

PLUG,SPARK(U31ESR-N)

€ 8.50

20-3

0948200458
ref: 20-3

PLUG,SPARK(NGK CR9E)

€ 8.50

20-4

0948200459
ref: 20-4

PLUG,SPARK(U27ESR-N)

€ 8.50

21

1117544B00
ref: 21

CAP,INSPECTION

€ 14.50

22

1117744B01
ref: 22

O RING,INSPECTION CAP

€ 6.00

23

015500620A
ref: 23

BOLT

€ 2.50

24

0924125007
ref: 24

PLUG,OD:30

€ 6.00

25

1311032E00
ref: 25

PIPE,INTAKE

€ 29.00

26

0928046002
ref: 26

O RING(D:2.4,ID:45.7)

€ 9.50

27

0912606014
ref: 27

SCREW(6X16)

€ 2.00

28

0940258208
ref: 28

CLAMP

€ 5.50

29

0910308332
ref: 29

BOLT(8X53)

€ 3.50

30

083193108A
ref: 30

NUT

€ 2.50

31

1115132E00
ref: 31

PAD,CYLINDER HEAD RUBBER

€ 4.50
