DR650SE 2013 (L3) USA (E03)

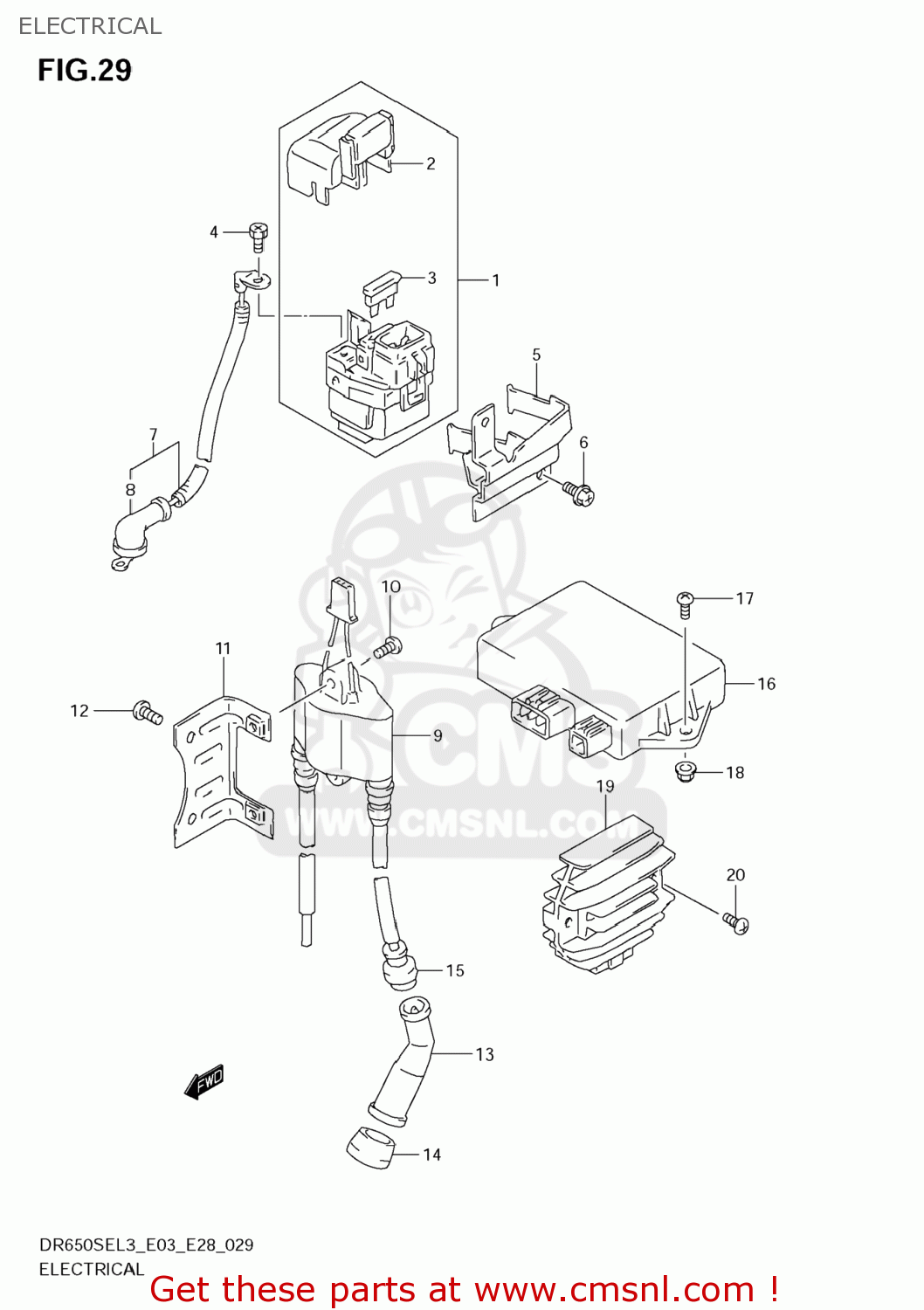

Electrical diagram DR650SE 2013 (L3) USA (E03)
ELECTRICAL DR650SE 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180026E00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 77.50
2
3186126E00
ref: 2
COVER,STARTER RELAY
€ 3.50
3
0948130101
ref: 3
FUSE(30A)
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3189032E00
ref: 5
BRACKET,STARTING MOTOR RELAY
€ 12.00
6
021620608B
ref: 6
SCREW
€ 1.50
7
3381032E00
ref: 7
WIRE,STARTER MOTOR
€ 17.50
8
3186148B10
ref: 8
CAP,STARTER MOTOR LEAD
€ 4.50
9
3341032E00
ref: 9
COIL ASSY,IGNITION
€ 125.00
10
021420625B
ref: 10
SCREW
€ 1.50
11
3341632E00
ref: 11
BRACKET,IGNITION COIL
€ 7.00
12
021420610B
ref: 12
SCREW
€ 2.00
13
3351043010
ref: 13
CAP,SPARK PLUG
€ 11.50
14
3354147D00
ref: 14
SEAL,SPARK PLUG
€ 7.00
15
3354238B00
ref: 15
SEAL,HIGH TENSION CORD
€ 4.50
16
3290032E10
ref: 16
CDI UNIT
€ 469.00
17
021620620B
ref: 17
SCREW
€ 2.00
18
083193106B
ref: 18
NUT
€ 2.50
19
3280032E00
ref: 19
RECTIFIER ASSY
€ 182.50
20
021620620B
ref: 20
SCREW
€ 2.00
