WIRING HARNESS (DR650SEL3 E28)
DR650SE 2013 (L3) USA (E03)

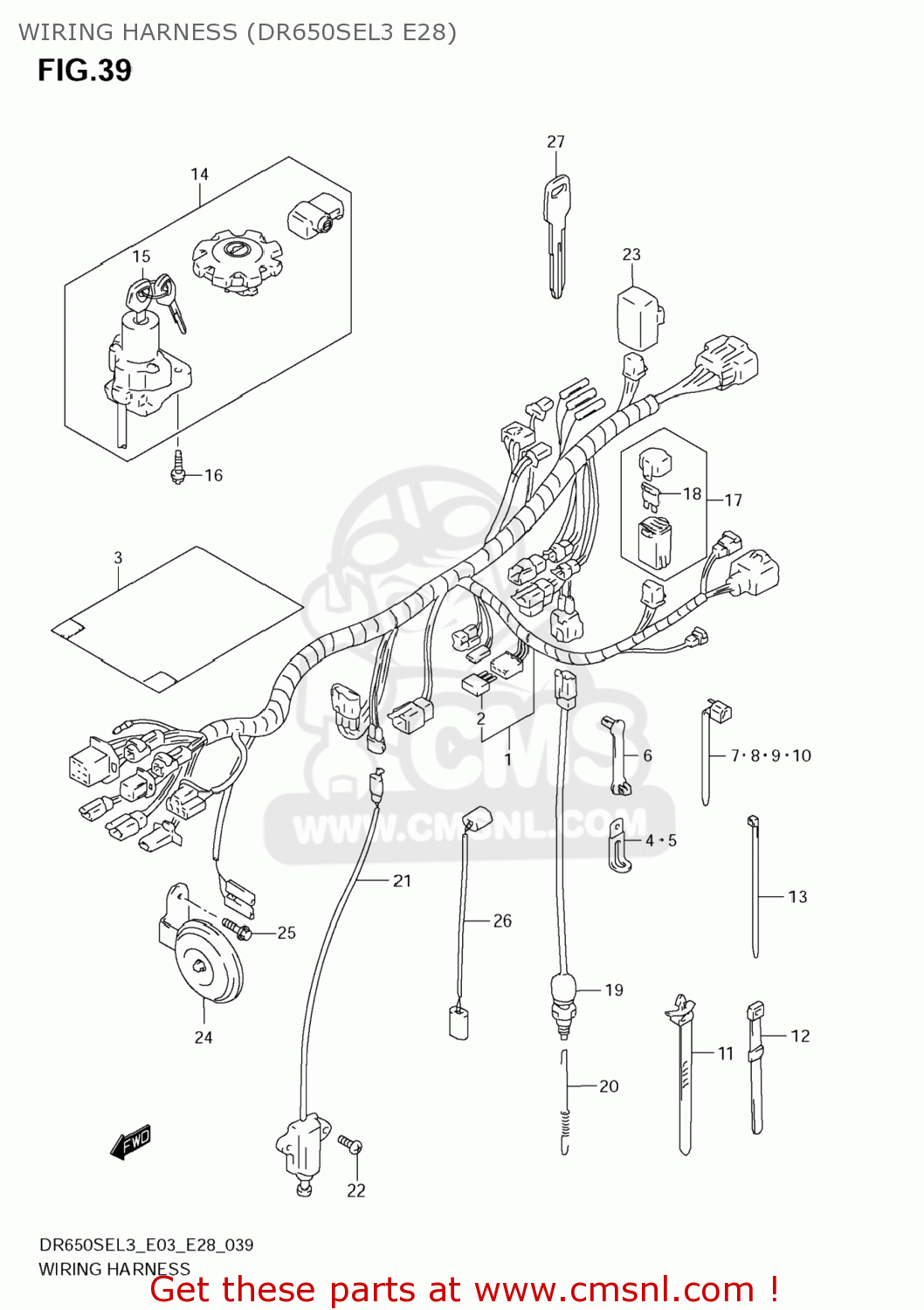

Wiring harness (dr650sel3 e28) diagram DR650SE 2013 (L3) USA (E03)
WIRING HARNESS (DR650SEL3 E28) DR650SE 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661032E30
ref: 1
HARNESS,WIRING
€ 450.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3
3661815D20
ref: 3
COVER,WIRING HARNESS
€ 12.00
4
0940406429
ref: 4
CLAMP(L:45)
€ 2.50
5
0940408419
ref: 5
CLAMP(L:80)
€ 2.00
6
0940703401
ref: 6
CLAMP(L:33)
€ 3.50
7
0940711401
ref: 7
CLAMP(L:95)
€ 2.50
8
0940714403
ref: 8
CLAMP(L:125)
€ 2.50
9
0940718402
ref: 9
CLAMP(L:165)
€ 2.50
10
0940725401
ref: 10
CLAMP(L:235)
€ 4.00
11
0940711402
ref: 11
CLAMP(L:90)
€ 2.50
12
0940712402
ref: 12
CLAMP(L:120)
€ 3.00
13
0940710404
ref: 13
CLAMP(L:100)
€ 4.00
14
3700004811
ref: 14
LOCK SET
€ 247.00
15
3710004F00
ref: 15
LOCK ASSY,STEERING
€ 143.00
16
0913908016
ref: 16
BOLT(8X20)
€ 3.50
17
3674032E00
ref: 17
BOX ASSY,FUSE
€ 19.50
18
0948110101
ref: 18
FUSE(10A)
€ 2.50
19
3774032E00
ref: 19
SWITCH ASSY,STOP LAMP
€ 21.50
20
0944306016
ref: 20
SPRING
€ 2.50
21
3784044X50
ref: 21
SWITCH ASSY,SIDE STAND
€ 75.50
22
021120616B
ref: 22
SCREW
€ 2.00
23
3874024X50
ref: 23
RELAY ASSY
€ 37.50
24
3850032E00
ref: 24
HORN ASSY
€ 54.50
25
015500612B
ref: 25
BOLT
€ 2.50
26
3685132E00
ref: 26
WIRE,THROTTLE SENSOR
€ 6.50
27
3714633E00
ref: 27
KEY,BLANK
€ 13.00
