LEFT HANDLE LEVER
DR650SE 2013 (L3) USA (E03)

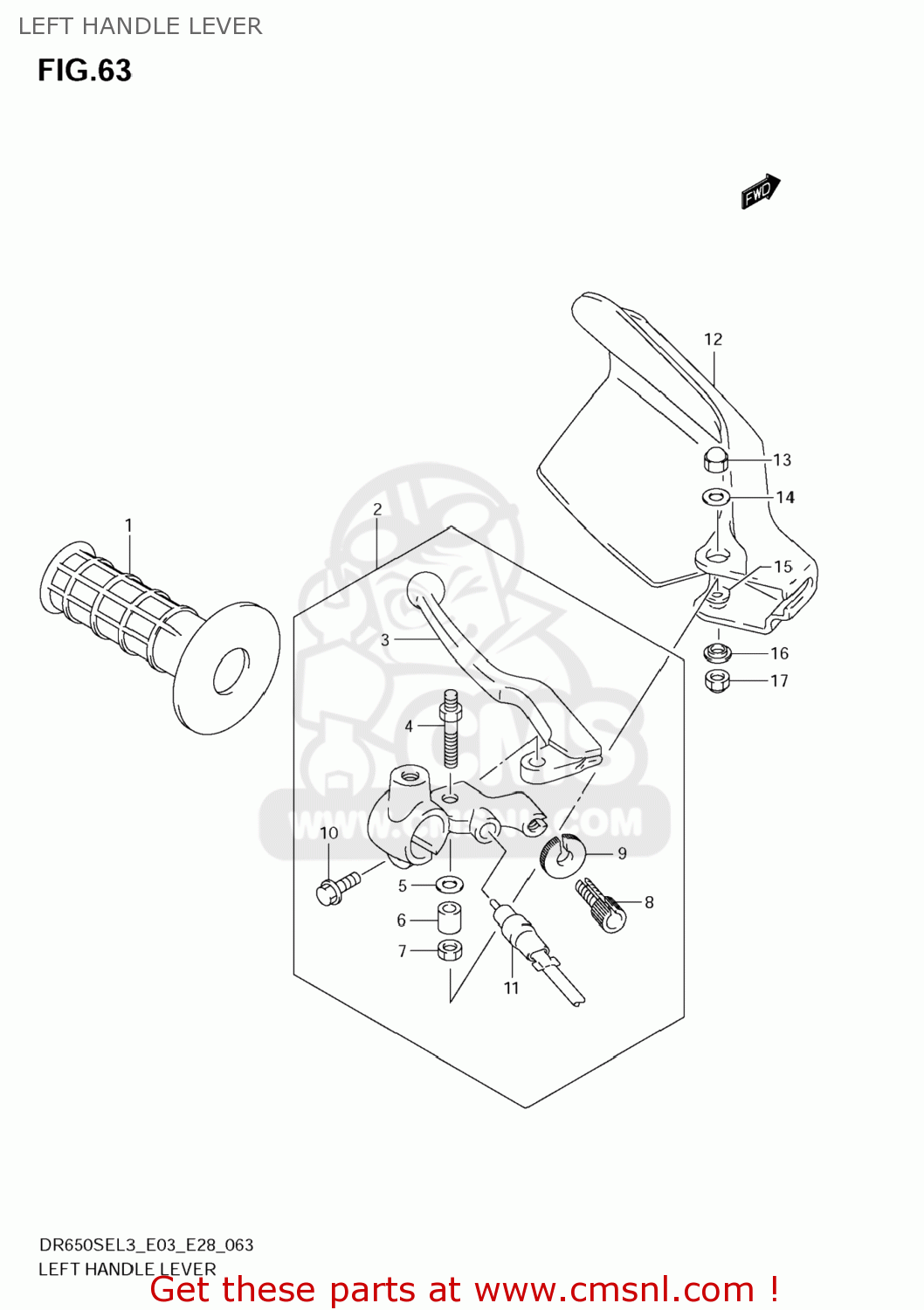

Left handle lever diagram DR650SE 2013 (L3) USA (E03)
LEFT HANDLE LEVER DR650SE 2013 (L3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5721112D00
ref: 1
GRIP,L
€ 14.50
2
5750012E30
ref: 2
LEVER ASSY,CLUTCH
€ 71.50
3
5742112E30
ref: 3
LEVER,CLUTCH
€ 25.50
4
5753112E30
ref: 4
BOLT,PIVOT
€ 17.50
5
5753312E30
ref: 5
WASHER
€ 5.50
6
5753212E30
ref: 6
SPACER
€ 12.00
7
083192106B
ref: 7
NUT
€ 2.50
8
5744145C00
ref: 8
ADJUSTER,WIRE
€ 8.50
9
5744245C00
ref: 9
NUT,LOCK
€ 7.50
10
015470620B
ref: 10
BOLT
€ 2.50
11
5756013E02
ref: 11
SWITCH ASSY,CLUTCH
€ 15.00
12-1
5754131D2030H
ref: 12-1
COVER,KNUCKLE,L
€ 14.50
12-2
5754131D20YUD
ref: 12-2
COVER,KNUCKLE(GRAY)
€ 26.00
13
083131006B
ref: 13
NUT
€ 2.00
14
0916006154
ref: 14
WASHER(6.5X20X1.6)
€ 1.50
15
0916006019
ref: 15
WASHER(6.5X16X1.2)
€ 1.50
16
0916906055
ref: 16
WASHER
€ 2.00
17
083192106A
ref: 17
NUT
€ 2.00
