CYLINDER

GN250 1982 (Z) USA (E03)

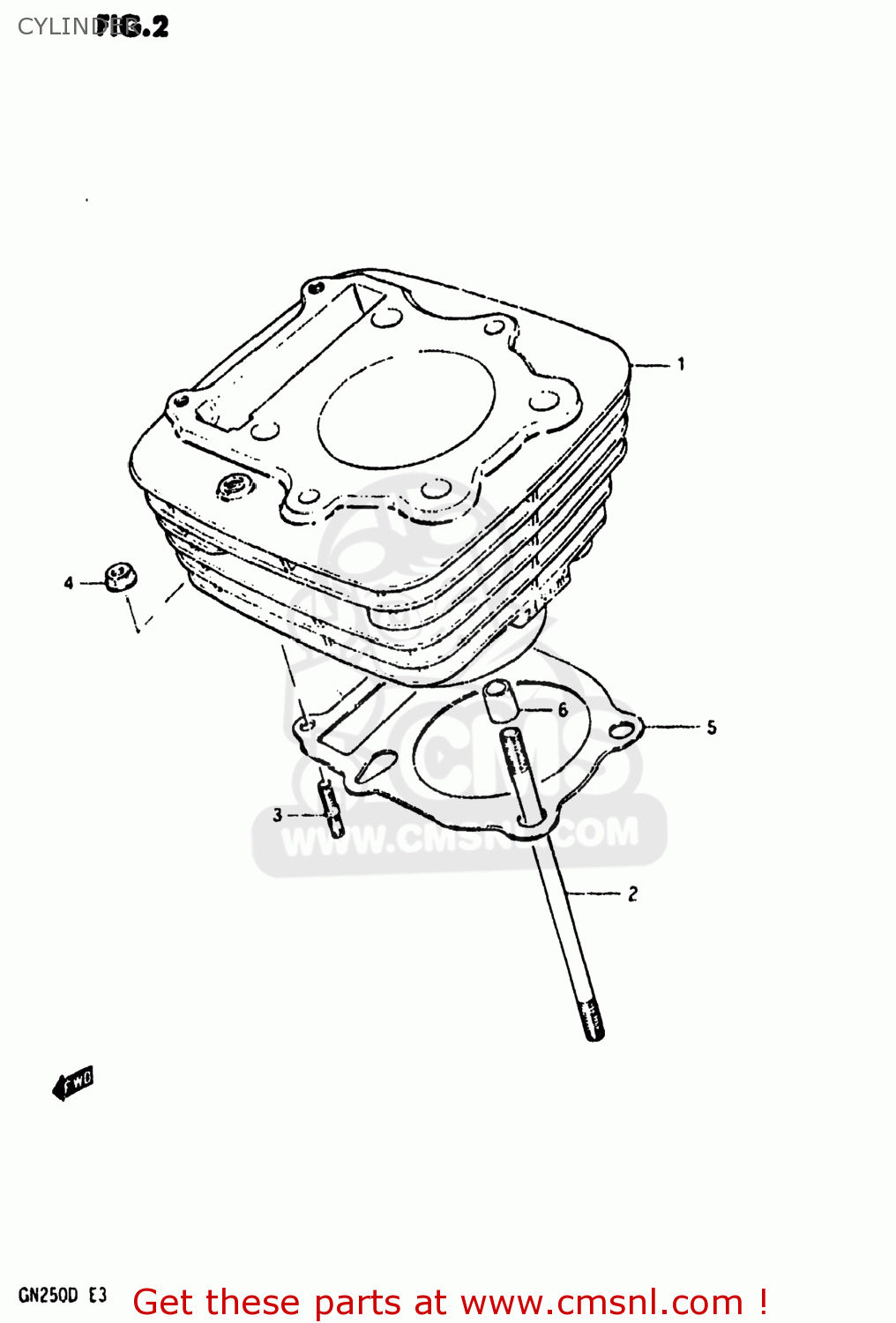

Cylinder diagram GN250 1982 (Z) USA (E03)

CYLINDER GN250 1982 (Z) USA (E03)

CYLINDER GN250 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121038200
ref: 1
11210-38204-0F0

CYLINDER

€ 1,003.50

2

0910810030
ref: 2

BOLT,STUD

€ 7.50

3

0142106258
ref: 3
01421-06257

STUD 6X25

€ 2.50

4

0831616068
ref: 4
08319-31067

NUT

€ 2.50

5

1124138201
ref: 5
11241-38301

GASKET,CYLINDER (MCA)

€ 9.50

6

0920613001
ref: 6
04211-13189

PIN

€ 2.50
