GEAR SHIFTING
GN250 1982 (Z) USA (E03)

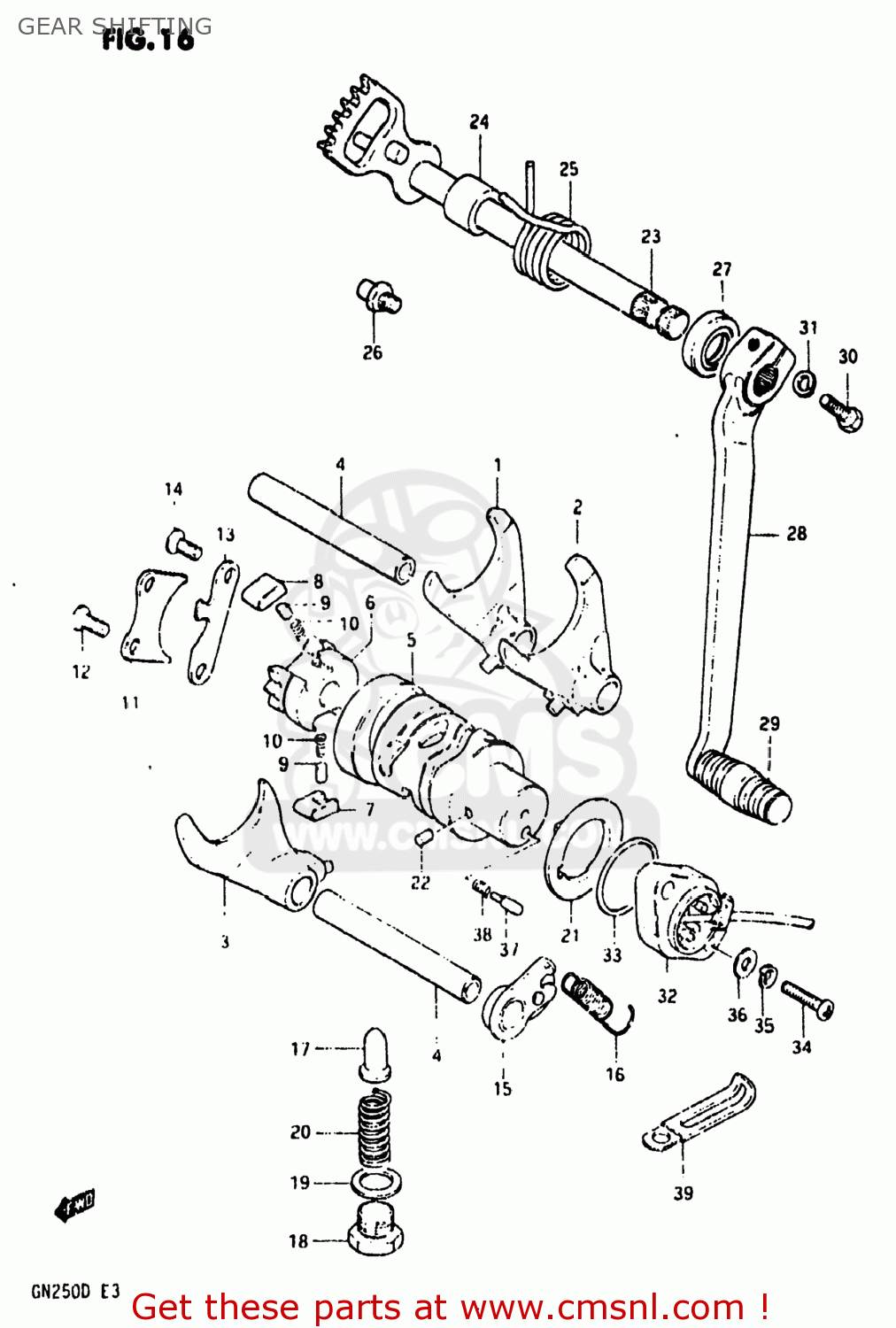

Gear shifting diagram GN250 1982 (Z) USA (E03)
GEAR SHIFTING GN250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521132401
ref: 1
25211-32402
FORK,GEAR SHIFT NO.1
€ 71.50
2
2522132401
ref: 2
25221-32403
FORK,GEAR SHIFT
€ 71.50
3
2523132401
ref: 3
25231-32402
FORK,GEAR SHIFT NO.3
€ 71.50
4
2541140400
ref: 4
25411-14331
SHAFT,GEAR SHIFT FORK
€ 14.00
5
2531038200
ref: 5
CAM,GEAR SHIFT
€ 103.00
6
2532211000
ref: 6
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
7
2532311000
ref: 7
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532411000
ref: 8
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533138200
ref: 11
25331-38201
LIFTER,GEAR SHIFT PAWL
€ 4.50
12
0212206168
ref: 12
02122-06167
SCREW
€ 2.00
13
2534138200
ref: 13
GUIDE,GEAR SHIFT CAM
€ 8.50
14
0212206128
ref: 14
02122-06127
SCREW
€ 3.00
15
2535034000
ref: 15
STOPPER,GEAR SHIFT CAM
€ 10.50
16
0944308026
ref: 16
SPRING
€ 14.50
17
2535130010
ref: 17
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
18
0924714012
ref: 18
09247-14026
PLUG (14X12)
€ 3.50
19
0916814004
ref: 19
GASKET(14X19.2X2) (NAS)
€ 2.50
20
0944011016
ref: 20
SPRING
€ 7.50
21
2538145400
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
22
0621104063
ref: 22
04221-04069
PIN 4X6
€ 2.00
23
2551038200
ref: 23
SHAFT,GEAR SHIFT
€ 83.50
24
0918012068
ref: 24
SPACER(12X20X15.3)
€ 3.00
25
0944426001
ref: 25
SPRING
€ 4.00
26
2567101000
ref: 26
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
27
0928512002
ref: 27
09285-12006
OIL SEAL
€ 7.00
28
2560005330
ref: 28
LEVER ASSY,GEAR SHIFT
€ 33.50
29
2565216500
ref: 29
RUBBER,GEAR SHIFT PEDAL
€ 4.00
30
0110706208
ref: 30
01500-06207
BOLT
€ 2.00
31
0832121068
ref: 31
08321-01067
LOCK WASHER
€ 2.50
32
3772033200
ref: 32
37720-45100
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 92.50
33
0928026003
ref: 33
09280-26005
O-RING (D:2.4 ID:26.2)
€ 2.50
34
0211205208
ref: 34
02112-05207
SCREW 5X20
€ 3.00
35
0832121058
ref: 35
08321-0105A
LOCK WASHER
€ 2.00
36
0832221058
ref: 36
08322-01057
WASHER
€ 2.50
37
0920905011
ref: 37
PIN(5X15.5)
€ 2.00
38
0944004010
ref: 38
SPRING
€ 1.50
39
0940406412
ref: 39
09404-06432
CLAMP
€ 2.50
