STAND
GN250 1982 (Z) USA (E03)

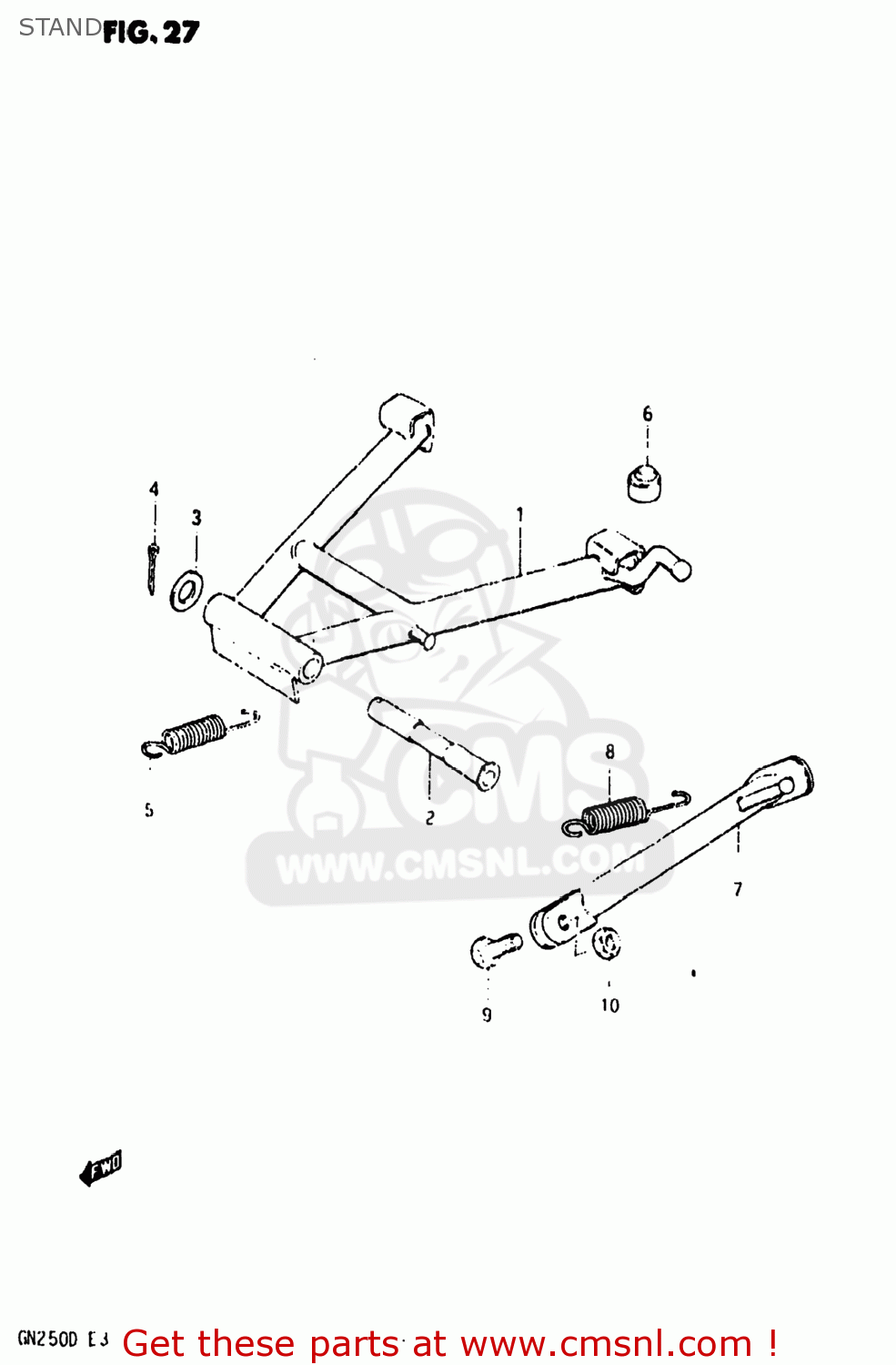

Stand diagram GN250 1982 (Z) USA (E03)
STAND GN250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4210038301
ref: 1
STAND,CTR
€ 93.50
2
4221136501
ref: 2
42211-49F00
SHAFT,CENTER STAND
€ 20.00
3
0916016001
ref: 3
WASHER(16.5X32X2.3)
€ 2.00
4
0411130308
ref: 4
04111-3030A
COTTER PIN
€ 1.50
5
0944318003
ref: 5
09443-18006-XC0
SPRING
€ 5.50
6
0932110001
ref: 6
CUSHION
€ 2.50
7
4231038300
ref: 7
STAND,SIDE
€ 34.50
8
0944317007
ref: 8
SPRING
€ 4.50
9
0910010067
ref: 9
BOLT(10X30)
€ 3.50
10
0831022108
ref: 10
08310-00107
NUT
€ 2.50
