FRAME COVER (MODEL D)
GN250 1982 (Z) USA (E03)

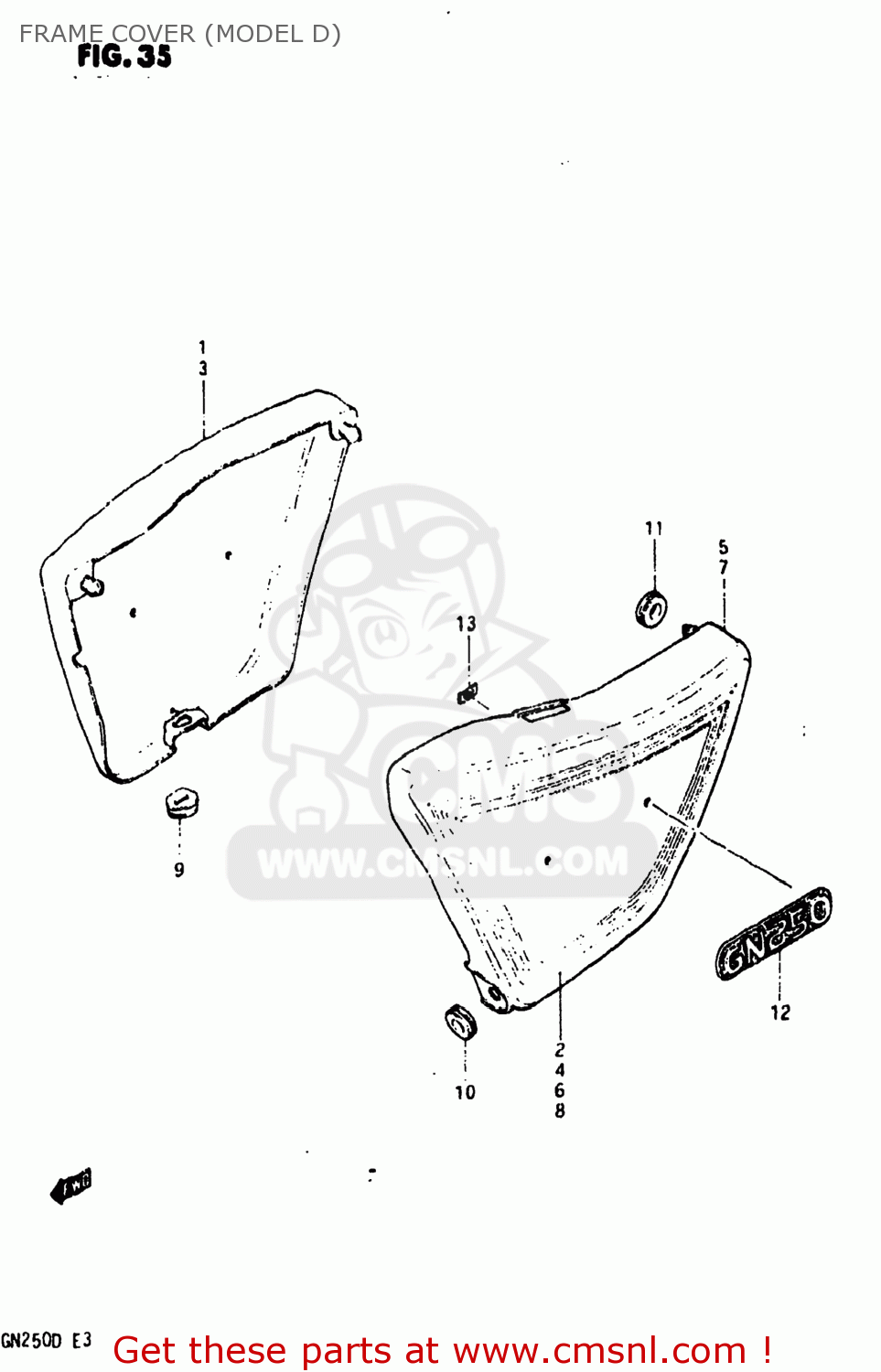

Frame cover (model d) diagram GN250 1982 (Z) USA (E03)
FRAME COVER (MODEL D) GN250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
471113830100J
ref: 1
COVER,FRAME,RIGHT
€ 26.50
2
681303832088L
ref: 2
TAPE SET,FRAME COVER,R
€ 10.50
3
471113830108D
ref: 3
47111-38301
COVER,FRAME,RIGHT
€ 26.50
4
681303832088K
ref: 4
TAPE SET,FRAME COVER
€ 9.50
5
472113830100J
ref: 5
COVER,FRAME,L(RED)
€ 0.00
6
681403832088L
ref: 6
TAPE SET,FRAME COVER,L
€ 10.50
7
472113830108D
ref: 7
47211-38301
COVER,FRAME,LEFT
€ 19.00
8
681403832088K
ref: 8
TAPE SET,FRAME COVER
€ 7.50
9
0932003004
ref: 9
CUSHION
€ 2.00
10
0932008013
ref: 10
CUSHION
€ 4.00
11
0932008018
ref: 11
CUSHION
€ 4.00
12
6813138310
ref: 12
EMBLEM,GN250
€ 18.00
13
0914803002
ref: 13
NUT
€ 3.00
