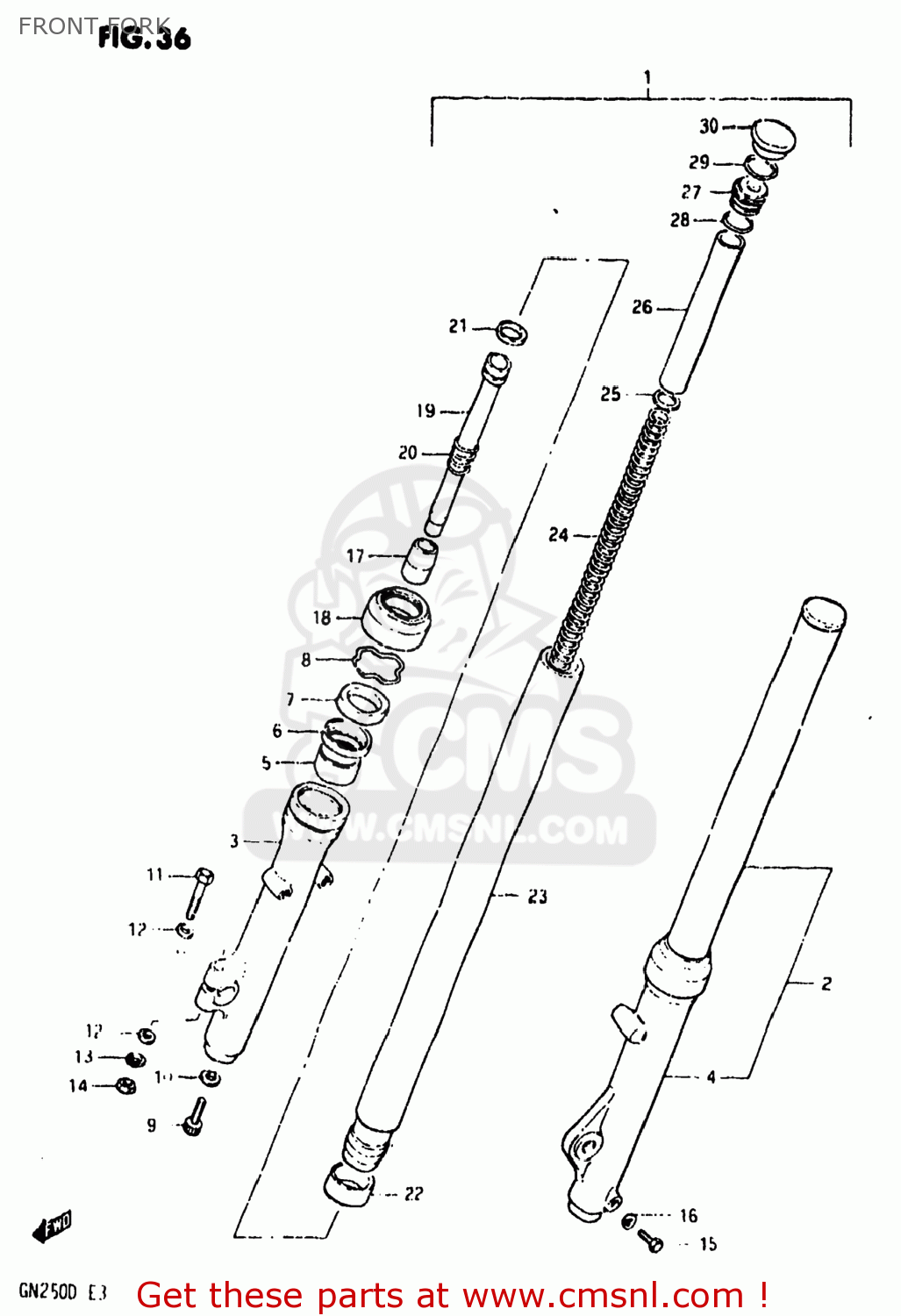

FRONT FORK

ref

part #

description

quantity

1

5110338300
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 447.00

2

5110438300
ref: 2

DAMPER ASSEMBLY,FRONT FORK,LEFT

€ 234.50

3

5113038300
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 272.00

4

5114038300
ref: 4

TUBE,FORK,LEFT,OUTER

€ 138.50

5

5115211420
ref: 5

BUSH,GUIDE

€ 16.50

6

5116844030
ref: 6

SPACER,OIL SEAL

€ 4.50

7

5115337310
ref: 7
51153-02B00

OIL SEAL,FRONT FORK

€ 15.00

8

5115633130
ref: 8
51156-02B00

CIRCLIP,FORK OIL SEAL

€ 4.50

9

5114748130
ref: 9

BOLT(8X27)

€ 3.50

10

5114831030
ref: 10
51148-36011

GASKET (NAS)

€ 4.00

11

0110708508
ref: 11
01500-08507

BOLT 8X50

€ 3.00

12

0832221088
ref: 12
08322-01087

WASHER

€ 2.00

13

0832121088
ref: 13
08321-01087

LOCK WASHER

€ 2.00

14

0831012088
ref: 14
08310-00087

NUT

€ 2.00

15

0110706088
ref: 15
09100-06157

BOLT

€ 2.50

16

5118331030
ref: 16

GASKET,DRAIN,PLUG (NAS)

€ 4.00

17

5119538300
ref: 17
51195-48000

PIECE,OIL LOCK

€ 8.50

18

5157137310
ref: 18

DUST SEAL

€ 22.00

19

5114638300
ref: 19

CYLINDER

€ 42.00

20

5117736030
ref: 20

SPRING,REBOUND

€ 4.50

21

5119633130
ref: 21

RING,PISTON

€ 7.50

22

5112111420
ref: 22

BUSH

€ 16.50

23

5111038300
ref: 23

TUBE,INNER

€ 217.00

24

5117138300
ref: 24

SPRING

€ 32.50

25

5117236331
ref: 25

SEAT,SPRING

€ 2.50

26

5117636331
ref: 26

SPACER,FRONT FORK SPRING

€ 4.00

27

5117548500
ref: 27

SEAT,SPRING

€ 9.00

28

5118133131
ref: 28

O RING

€ 5.00

29

5119648500
ref: 29
51169-48500

RING,FRONT FORK PISTON

€ 2.00

30

5118944031
ref: 30

CAP

€ 7.00
