OIL PUMP
GN250 1982 (Z) USA (E03)

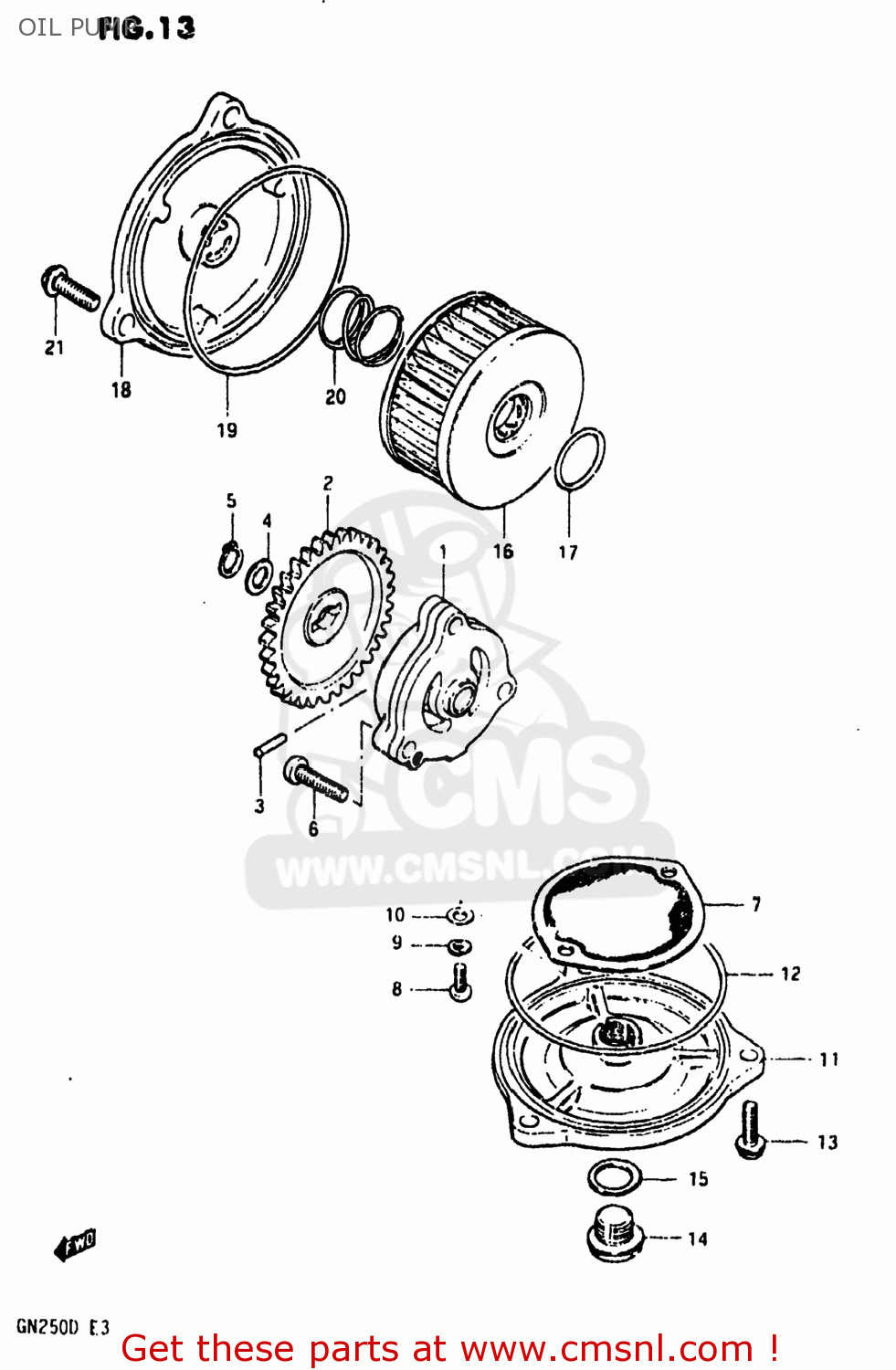

Oil pump diagram GN250 1982 (Z) USA (E03)
OIL PUMP GN250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640038200
ref: 1
PUMP ASSY,ENGINE OIL
€ 164.50
2
1633138200
ref: 2
GEAR,OIL PUMP DRIVEN(NT:33)
€ 31.00
3
0926104009
ref: 3
PIN(4X15.8)
€ 1.50
4
0822110185
ref: 4
SHIM
€ 2.00
5
0833131109
ref: 5
CIRCLIP
€ 2.00
6
0211206258
ref: 6
02112-06257
SCREW
€ 2.00
7
1652037400
ref: 7
STRAINER,ENGINE OIL
€ 7.00
8
0211205128
ref: 8
02112-05127
SCREW
€ 2.50
9
0832121058
ref: 9
08321-0105A
LOCK WASHER
€ 2.00
10
0832221058
ref: 10
08322-01057
WASHER
€ 2.50
11
1652338200
ref: 11
CAP,OIL STRAINER
€ 36.00
12
0928082001
ref: 12
O RING(D:2.4,ID:85)
€ 6.50
13
0154706208
ref: 13
01547-06207
BOLT (6X20)
€ 2.50
14
0924714001
ref: 14
09247-14002
PLUG
€ 5.00
15
0916814004
ref: 15
GASKET(14X19.2X2) (NAS)
€ 2.50
16
1651038240
ref: 16
FILTER ASSY,ENGINE OIL
€ 7.50
17
0928016005
ref: 17
O RING(D:2.4,ID:15.8)
€ 1.50
18
1651238220
ref: 18
CAP,OIL FILTER
€ 30.00
19
0928072001
ref: 19
O RING(D:2.4,ID:73)
€ 5.00
20
0944021004
ref: 20
SPRING
€ 13.00
21
0154706208
ref: 21
01547-06207
BOLT (6X20)
€ 2.50
