FOOTREST
GN250 1982 (Z) USA (E03)

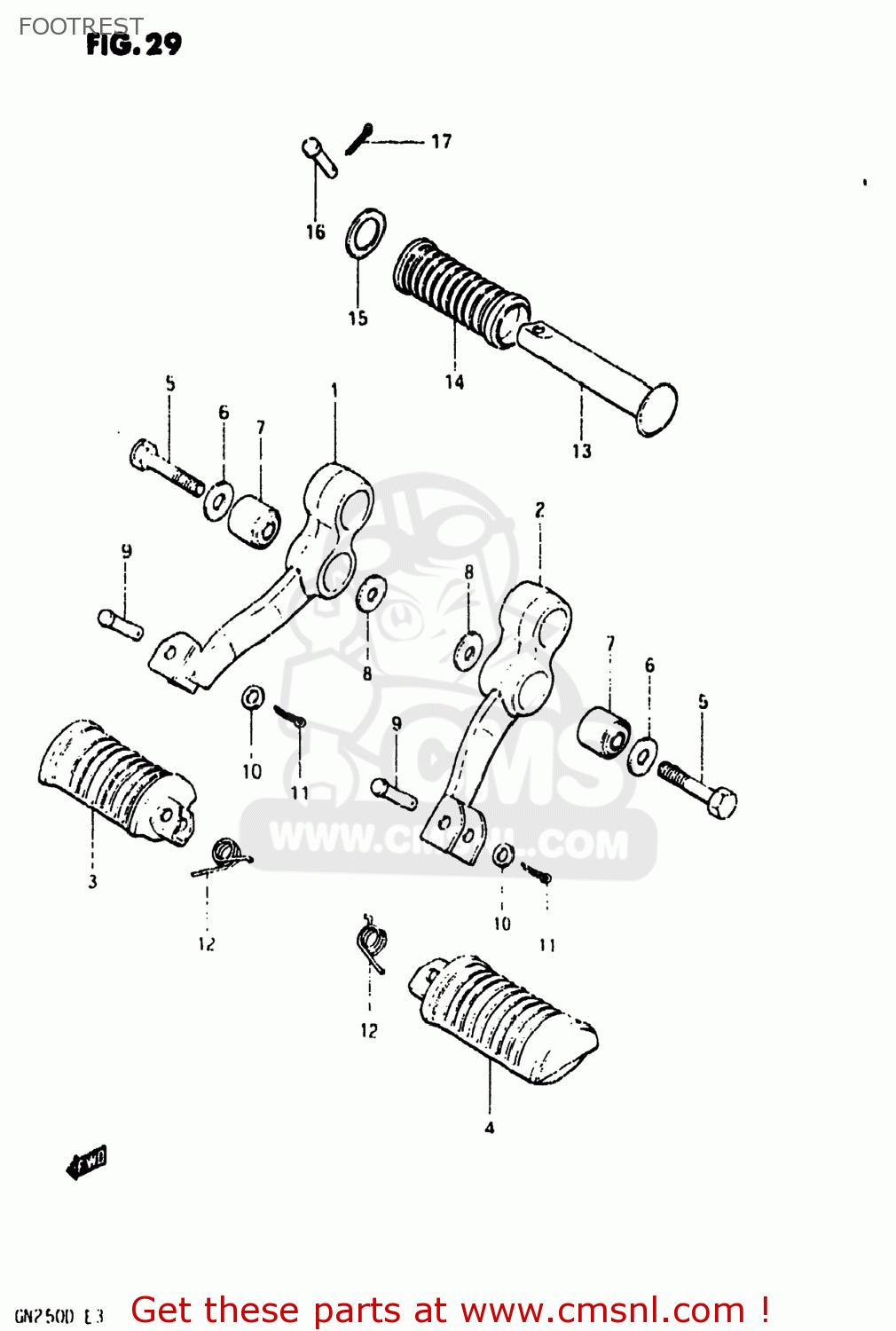

Footrest diagram GN250 1982 (Z) USA (E03)
FOOTREST GN250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351038300
ref: 1-1
BAR,FRONT FOOTREST
€ 28.50
1-2
4351038310
ref: 1-2
43510-38312
BAR,FRONT FOOTREST
€ 52.50
2-1
4352038300
ref: 2-1
BAR,FRONT FOOTREST,LEFT
€ 31.00
2-2
4352038310
ref: 2-2
BAR,FR FOOTREST,L
€ 36.50
3
4355049002
ref: 3
43550-37301
RUBBER,FRONT FOOTREST
€ 22.50
4
4356049002
ref: 4
43560-37301
FOOTREST
€ 22.50
5
0910410010
ref: 5
BOLT(10X35)
€ 3.50
6
0916010059
ref: 6
09160-10124
WASHER
€ 2.50
7
0931910008
ref: 7
BUSH
€ 8.00
8
0916010057
ref: 8
09160-10142
WASHER
€ 2.00
9
0920008002
ref: 9
PIN
€ 2.00
10
0832211088
ref: 10
08322-01087
WASHER
€ 2.00
11
0411120208
ref: 11
04111-2020A
PIN 20X20
€ 1.50
12
0944814012
ref: 12
SPRING
€ 3.00
13-1
4361044000
ref: 13-1
BAR,PILLION FOOTREST
€ 14.50
13-2
4361038300
ref: 13-2
BAR,PILLION FOOTREST
€ 21.50
14
4361203001
ref: 14
RUBBER,PILLION FOOTREST
€ 3.50
15
0916019006
ref: 15
09160-19024
WASHER (19.5X32X2)
€ 2.00
16
0920006010
ref: 16
PIN
€ 2.50
17
0411120208
ref: 17
04111-2020A
PIN 20X20
€ 1.50
