FRONT WHEEL
GN250 1982 (Z) USA (E03)

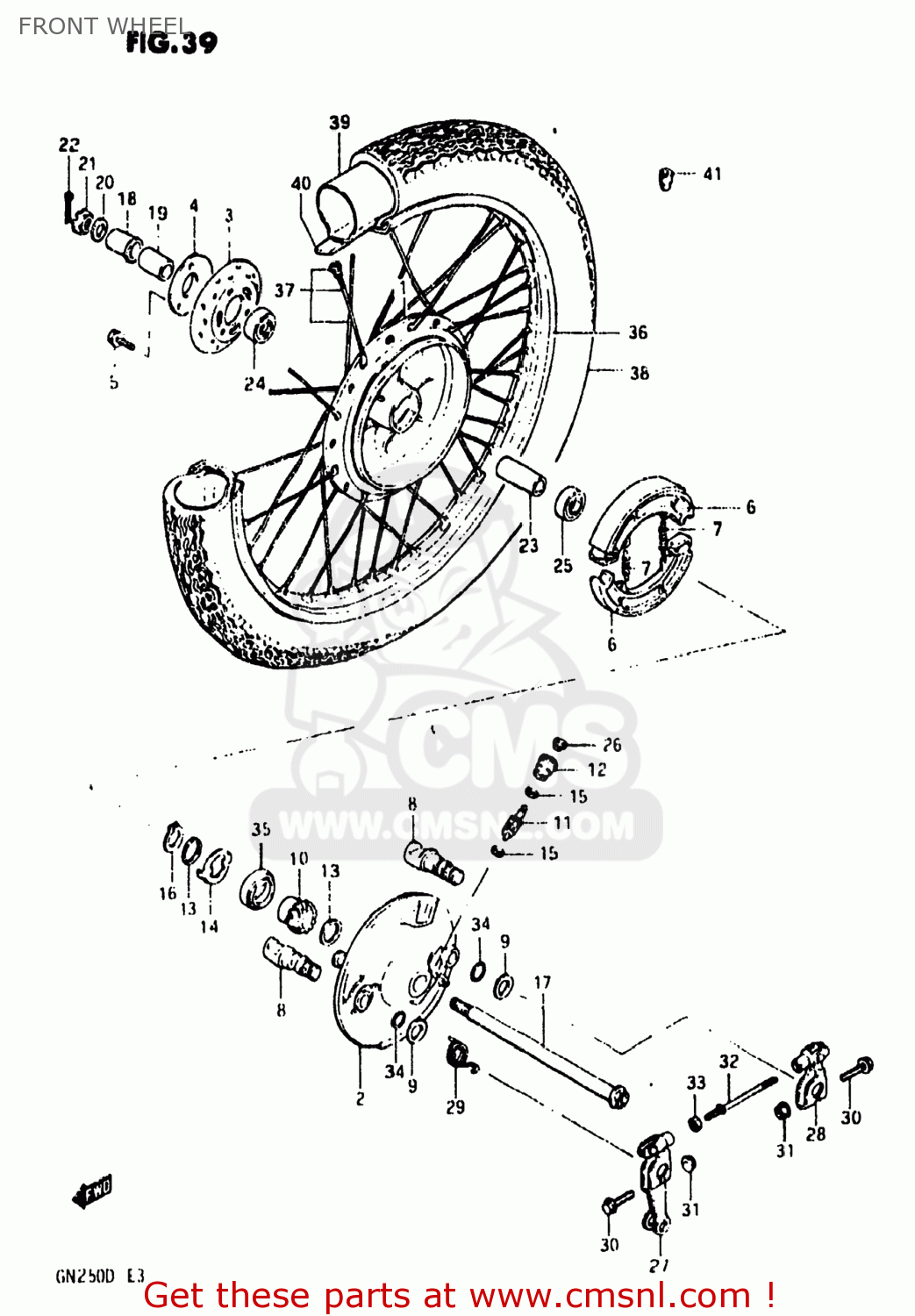

Front wheel diagram GN250 1982 (Z) USA (E03)
FRONT WHEEL GN250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411038300
ref: 1
HUB,FRONT
€ 92.00
2
5421038300
ref: 2
PANEL,FRONT HUB
€ 89.00
3
5411238300
ref: 3
FLANGE,FRONT HUB,RIGHT
€ 11.50
4
5415138300
ref: 4
PLATE,FRONT HUB BEARING
€ 3.00
5
0151706168
ref: 5
01550-06167
BOLT
€ 1.50
6
5441038300
ref: 6
54400-38820
SHOE,BRAKE
€ 17.50
7
5542041100
ref: 7
SPRING
€ 5.50
8
5444008003
ref: 8
54440-08004
CAM,FRONT BRAKE
€ 19.00
9
0916015001
ref: 9
09160-15048
WASHER (15X24X1.6)
€ 2.50
10
5461136001
ref: 10
GEAR,SPEEDOMETER
€ 26.50
11
5462111000
ref: 11
PINION,SPEEDOMETER
€ 11.50
12
5463249200
ref: 12
BUSHING,SPEEDOMETER PINION
€ 6.50
13
0916022001
ref: 13
WASHER(22.5X27X1)
€ 2.00
14
5466011031
ref: 14
DRIVER,SPEEDOMETER GEAR
€ 31.00
15
0916005001
ref: 15
09160-05001-A05
WASHER (5.1X9X0.4)
€ 2.00
16
0833111229
ref: 16
08331-3122A
CIRCLIP
€ 2.00
17
5471138300
ref: 17
AXLE,FRONT
€ 15.50
18
5475138300
ref: 18
SPACER,FRONT AXLE,LEFT
€ 5.00
19
0918012063
ref: 19
SPACER(12X20X34.5)
€ 4.50
20
0832221128
ref: 20
08322-01127
WASHER
€ 2.00
21
0831431128
ref: 21
08314-3112A
NUT 12MM
€ 2.00
22
0411130308
ref: 22
04111-3030A
COTTER PIN
€ 1.50
23
0918012041
ref: 23
09180-12144
SPACER (12.6X19X52)
€ 4.50
24
0812362017
ref: 24
08133-62017
BEARING, RH
€ 15.00
25
0814362017
ref: 25
BEARING
€ 11.50
26
0928906001
ref: 26
SEAL,OIL(6X10X3)
€ 4.00
27
5440038300
ref: 27
LEVER ASSEMBLY,FRONT BRAKE CABLE
€ 7.50
28
5450038300
ref: 28
LEVER, BRAKE CAM NO.2
€ 0.00
29
0944832010
ref: 29
SPRING
€ 2.00
30
0151706308
ref: 30
01550-06307
BOLT
€ 2.00
31
0831616068
ref: 31
08319-31067
NUT
€ 2.50
32
5447138300
ref: 32
ROD,BRAKE CAM LEVER CONNECTION
€ 0.00
33
0831022068
ref: 33
08310-00067
NUT 6MM
€ 2.50
34
0928015001
ref: 34
09280-15003
O-RING,BOSS
€ 2.00
35
0928526003
ref: 35
SEAL,OIL(26X38X4)
€ 22.00
36
5531138300
ref: 36
RIM,FRONT WHEEL (1.60X1
€ 52.50
37
5532038300
ref: 37
SPOKE SET,FRONT
€ 0.00
38-1
5510038330
ref: 38-1
55100-38331
TIRE,FRONT
€ 123.00
38-2
5510044010
ref: 38-2
55100-38331
TIRE,FRONT
€ 123.00
39
5520011601
ref: 39
55200-26F00
TUBE,INNER
€ 24.50
40
5526111010
ref: 40
PROTECTOR,INNER TUBE
€ 3.50
41-1
5541111000
ref: 41-1
55411-26G00
BALANCER,WHEEL (B)
€ 4.50
41-2
5541211000
ref: 41-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
