FRAME COVER (MODEL Z)
GN250 1982 (Z) USA (E03)

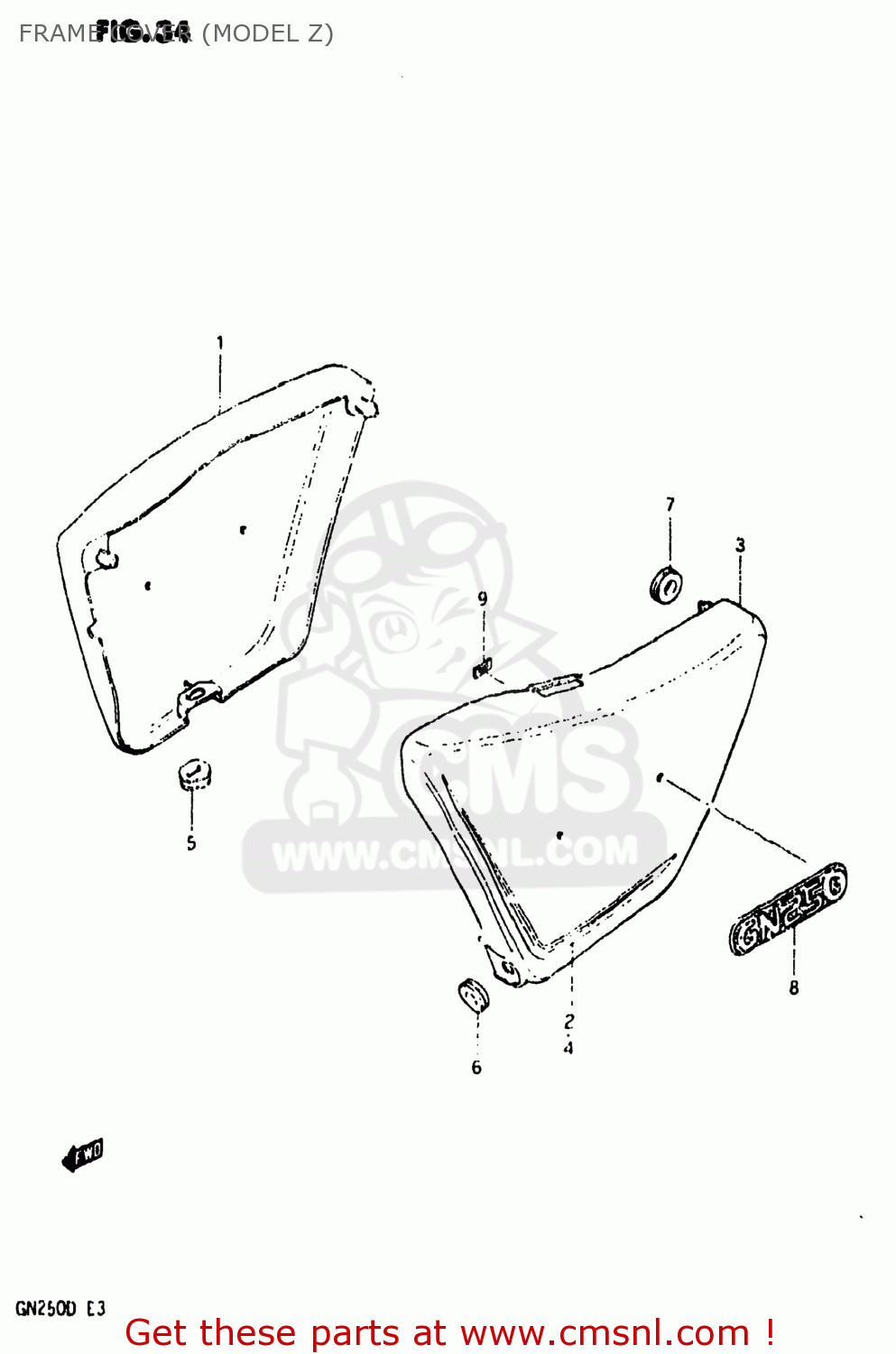

Frame cover (model z) diagram GN250 1982 (Z) USA (E03)
FRAME COVER (MODEL Z) GN250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4711138300019
ref: 1-1
47111-38301-019
COVER,FRAME,RIGHT
€ 17.50
1-2
471113830003F
ref: 1-2
47111-38301
COVER,FRAME,RIGHT
€ 26.50
2
6813638300764
ref: 2
TAPE,FRAME COVER,RIGHT
€ 0.00
3-1
4721138300019
ref: 3-1
47211-38301-019
COVER,FRAME,LEFT
€ 17.00
3-2
472113830003F
ref: 3-2
47211-38301
COVER,FRAME,LEFT
€ 19.00
4
6814638300764
ref: 4
TAPE,FRAME COVER,LEFT
€ 3.00
5
0932003004
ref: 5
CUSHION
€ 2.00
6
0932008013
ref: 6
CUSHION
€ 4.00
7
0932008018
ref: 7
CUSHION
€ 4.00
8
6813138310
ref: 8
EMBLEM,GN250
€ 18.00
9
0914803002
ref: 9
NUT
€ 3.00
