CARBURETOR

GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

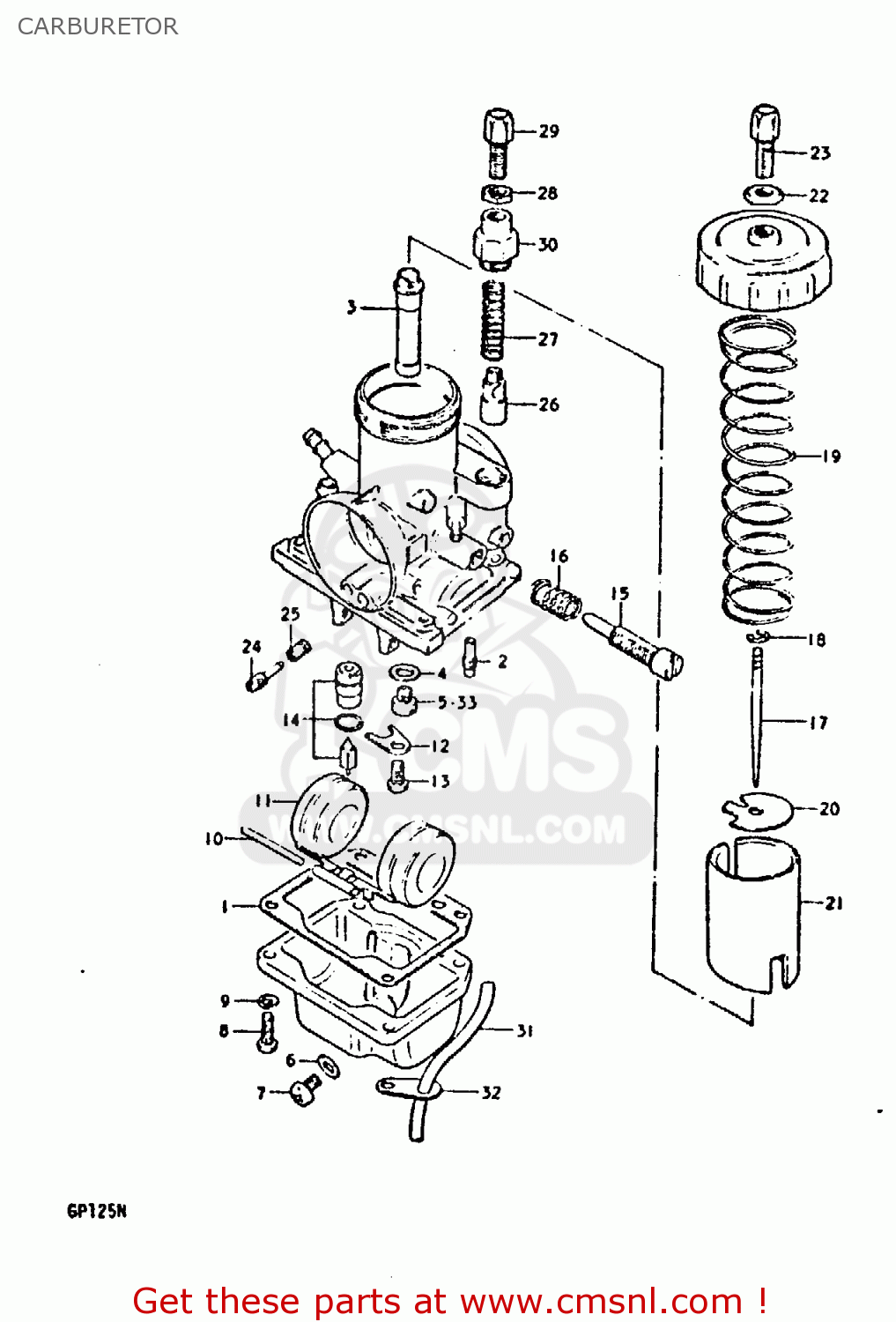

Carburetor diagram GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

CARBURETOR GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
CARBURETOR GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
CARBURETOR GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
prices are in EUR
ref
part #
description
quantity
0
1320039111
ref: 0
CARBURETOR ASSY
€ 236.50
1
1325139110
ref: 1
GASKET,FLOAT CAHMBER (NAS)
1325139110
€ 11.50
2-1
0949225003
ref: 2-1
JET
€ 6.50
3-1
0949400216
ref: 3-1
JET,NEEDLE
0949400216
€ 22.00
4
1338203110
ref: 4
WASHER
1338203110
€ 2.50
5-1
0949190003
ref: 5-1
JET
0949190003
€ 10.50
6
1324905010
ref: 6
GASKET,DRAIN,PLUG (NAS)
1324905010
€ 1.50
7
1324705010
ref: 7
PLUG
1324705010
€ 6.00
8
0211204168
ref: 8
SCREW
0211204168
€ 1.00
9
0832121048
ref: 9
LOCK WASHER
0832121048
€ 2.00
10
1325401010
ref: 10
PIN,FLOAT
1325401010
€ 3.00
11
1325239110
ref: 11
FLOAT
1325239110
€ 26.00
12
1337339110
ref: 12
PLATE
1337339110
€ 6.50
13
0211104087
ref: 13
SCREW
0211104087
€ 1.50
14
1337039110
ref: 14
VALVE ASSY, NEEDLE
1337039110
€ 54.50
15
1326715110
ref: 15
ADJUSTER
€ 7.50
16
1326803110
ref: 16
SPRING,THROTTLE SCREW
1326803110
€ 3.50
17-1
1338339110
ref: 17-1
NEEDLE, JET (4EJ14)
1338339110
€ 14.50
18
1339410010
ref: 18
FROM 13384-45010
CLIP
1339410010
€ 4.50
19
1357330900
ref: 19
FROM 13573-97010
SPRING,THROTTLE VALVE
1357330900
€ 6.00
20
1358139110
ref: 20
PLATE
1358139110
€ 4.00
21
1355139110
ref: 21
VALVE,THROTTLE
€ 35.00
22
1366116600
ref: 22
NUT
1366116600
€ 5.00
23
1357748110
ref: 23
ADJUSTER,CABLE
1357748110
€ 8.00
24
1326901010
ref: 24
SCREW,PILOT AIR
1326901010
€ 14.50
25
1326839110
ref: 25
SPRING
1326839110
€ 4.50
26
1341101010
ref: 26
PLUNGER,STARTER
1341101010
€ 14.00
27
1341701010
ref: 27
SPRING
1341701010
€ 3.50
28
1366103010
ref: 28
NUT
1366103010
€ 3.50
29
1357703010
ref: 29
ADJUSTER,CABLE
1357703010
€ 8.00
30
1311663110
ref: 30
CAP
€ 0.00
31
1368339110
ref: 31
HOSE
€ 8.00
32
1369330010
ref: 32
PLATE
1369330010
€ 4.00
33-1
0949187001
ref: 33-1
OPT
JET
0949187001
€ 6.50
33-2
0949195003
ref: 33-2
OPT
JET
€ 8.50
33-3
0949120003
ref: 33-3
OPT
JET
0949120003
€ 10.50
33-4
0949120004
ref: 33-4
OPT
JET
0949120004
€ 8.50
33-5
0949121006
ref: 33-5
OPT
JET
0949121006
€ 8.50
33-6
0949122004
ref: 33-6
OPT
JET, MAIN
€ 7.00
33-7
0949122005
ref: 33-7
OPT
JET, MAIN (112.5)
0949122005
€ 11.00
