FRONT FENDER (GP125UC, GP125UN)

GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

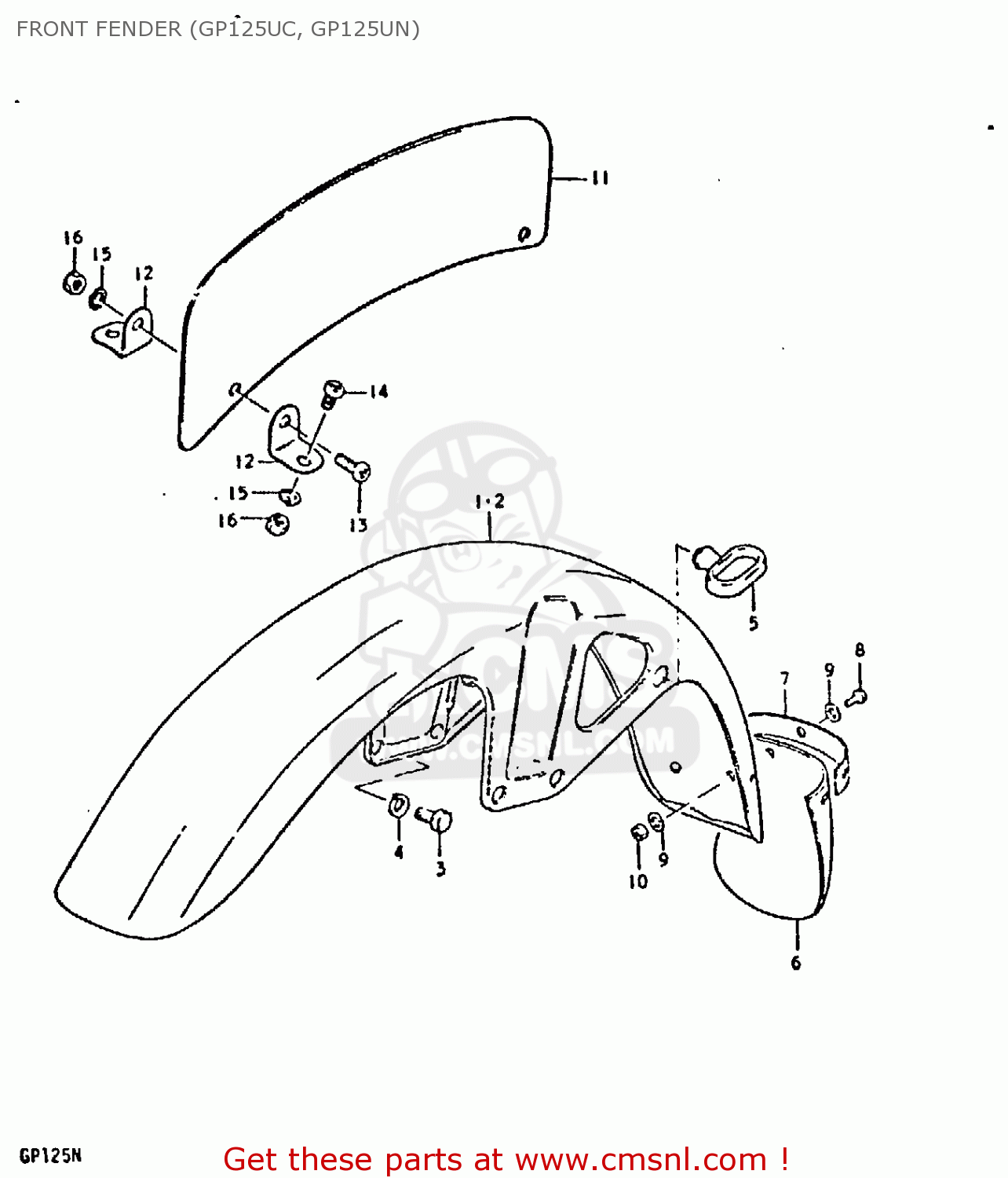

Front fender (gp125uc, gp125un) diagram GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

FRONT FENDER (GP125UC, GP125UN) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
FRONT FENDER (GP125UC, GP125UN) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
FRONT FENDER (GP125UC, GP125UN) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
prices are in EUR
ref
part #
description
quantity
2-1
5311039210126
ref: 2-1
FENDER, FRONT
€ 107.50
3
0110708168
ref: 3
BOLT
€ 2.00
4
0832121088
ref: 4
LOCK WASHER
0832121088
€ 2.00
5
5862121203A
ref: 5
GUIDE,CABLE
€ 7.50
6
5331125600
ref: 6
E6, E
FLAP,MUD
5331125600
€ 9.00
7
5332139100
ref: 7
E6, E
PLATE,MUDFLAP
€ 0.00
8
0211204108
ref: 8
E6, E
SCREW 4X10
€ 2.00
9
0832221048
ref: 9
E6, E
WASHER
0832221048
€ 2.00
10
0831022048
ref: 10
E6, E
NUT 4MM
€ 2.00
