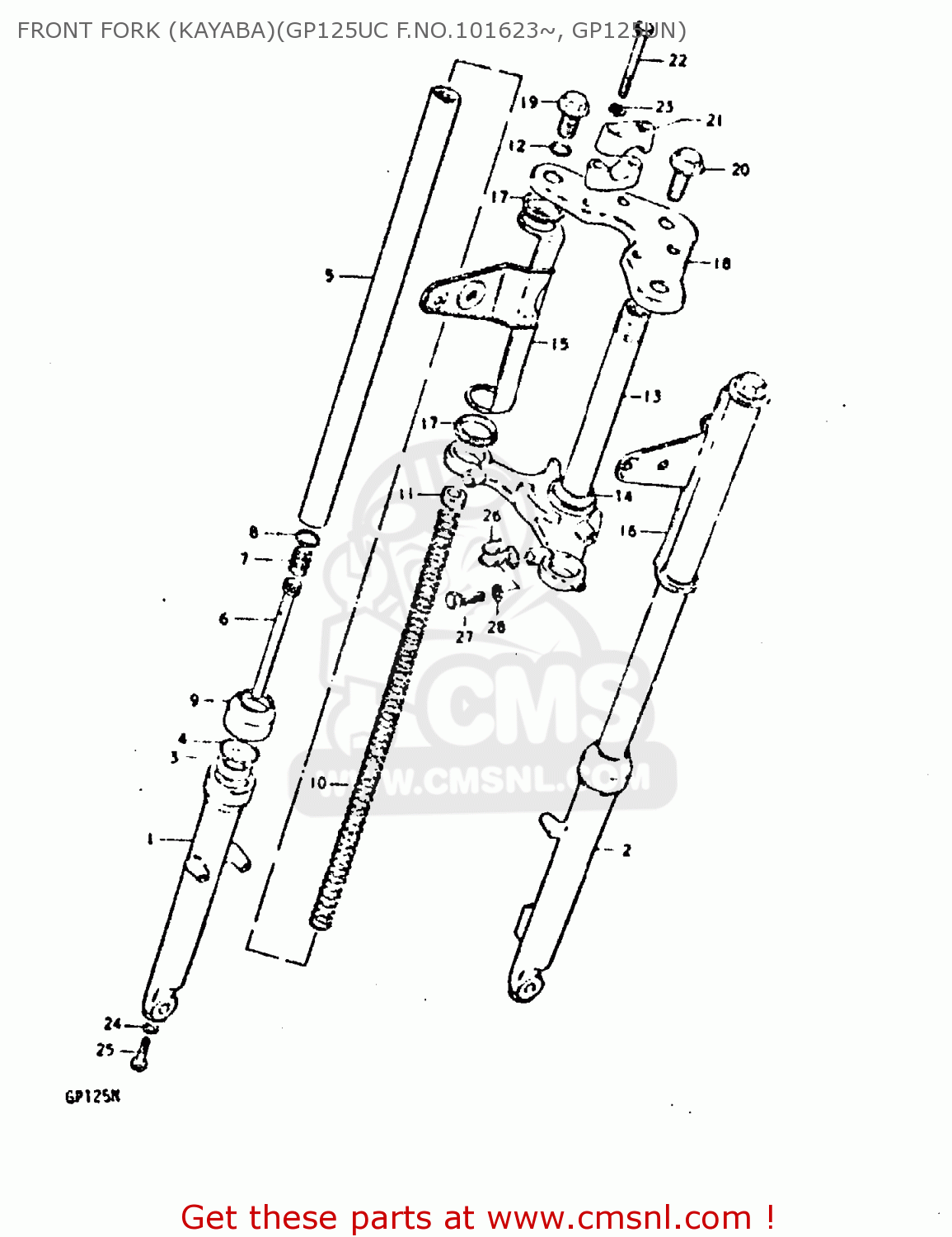

FRONT FORK (KAYABA)(GP125UC F.NO.101623~, GP125UN)

GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

Front fork (kayaba)(gp125uc f.no.101623~, gp125un) diagram GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

FRONT FORK (KAYABA)(GP125UC F.NO.101623~, GP125UN) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

FRONT FORK (KAYABA)(GP125UC F.NO.101623~, GP125UN) GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

prices are in EUR

ref

part #

description

quantity

0

5110039172291
ref: 0

FRONT FORK ASSY

€ 0.00

1

5113039171
ref: 1

OUTER TUBE, RH

€ 132.00

2

5114039171
ref: 2

OUTER TUBE, LH

€ 118.00

3

5115339140
ref: 3

SEAL,OIL

€ 8.00

4

5115639140
ref: 4

RING,SNAP

€ 4.50

5

5111139140
ref: 5

TUBE, INNER

€ 111.00

6

5114639140
ref: 6

CYLINDER

€ 54.50

7

5117739140
ref: 7
TO 51177-43010

SPRING

€ 3.50

8

5119639140
ref: 8

RING

€ 5.50

9

5117339140
ref: 9

DUST SEAL

€ 6.00

10

5117139140
ref: 10

SPRING

€ 0.00

11

5135339140
ref: 11

NUT

€ 5.00

12

5118143010
ref: 12

O-RING,FORK INNER TUBE

€ 5.50

13

5141039170
ref: 13

STEM, STEERING

€ 91.00

14

5162133001
ref: 14

RACE,STEERING OUTER LWR

€ 10.00

15

5153039141291
ref: 15

BRACKET, HEADLAMP RH (BLACK)

€ 35.50

16

5154039141291
ref: 16

BRACKET, HEADLAMP LH (BLACK)

€ 35.50

17

5155339140
ref: 17

GASKET (NAS)

€ 4.00

18

5131039141291
ref: 18

HEAD, STEERING STEM (BLACK)

€ 54.50

19

5135143010
ref: 19

CAP

€ 15.00

20-2

5135239220
ref: 20-2

BOLT

€ 4.00

21-2

5621129320291
ref: 21-2

HOLDER,HANDLE(BLACK)

€ 12.00

22-2

0120408557
ref: 22-2

BOLT

€ 2.50

23

0832121088
ref: 23

LOCK WASHER

€ 2.00

24

5114841310
ref: 24

GASKET (NAS)

€ 2.50

25

5114716510
ref: 25

BOLT,FORK CYLINDER(10X25)

€ 3.50

26

5145208010
ref: 26

CLIP,SPEEDOMETER CABLE

€ 3.00

27

0110710308
ref: 27

BOLT 10X30

€ 3.00

28

0832121108
ref: 28

LOCK WASHER

€ 2.00
