GEAR SHIFTING

GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

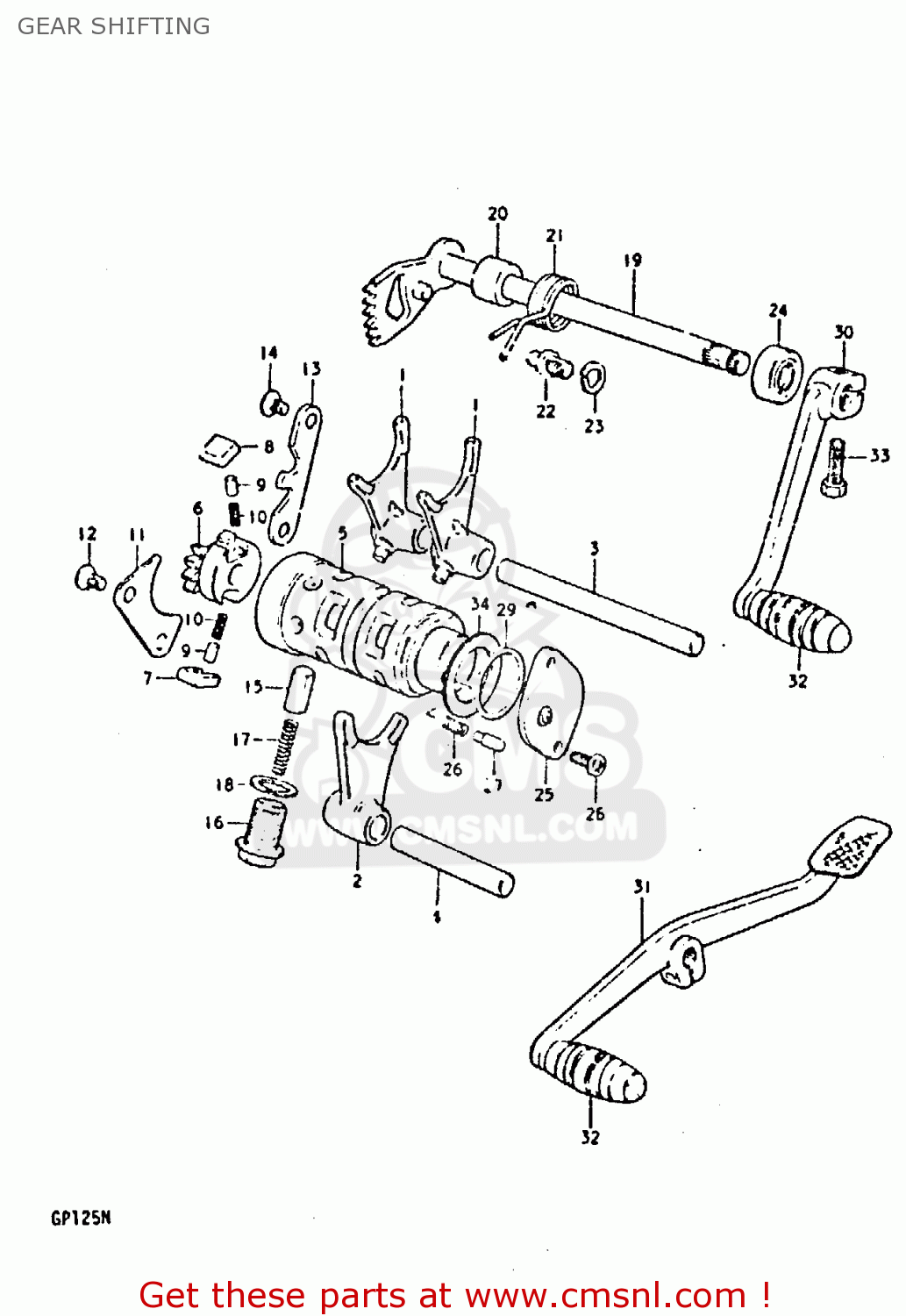

Gear shifting diagram GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41

GEAR SHIFTING GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
GEAR SHIFTING GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
GEAR SHIFTING GP125 1979 (N) (E01 E02 E04 E06 E13 E17 E18 E21 E22 E24 30 35 41
prices are in EUR
ref
part #
description
quantity
1
2521148001
ref: 1
FORK,GEAR SHIFT NO.1
2521148001
€ 71.50
2
2522141301
ref: 2
FORK,GEAR SHIFT NO.2
2522141301
€ 71.50
3
2541148000
ref: 3
SHAFT,GEAR SHIFT FORK
€ 15.00
4
2542148000
ref: 4
SHAFT,GEAR SHIFT FORK
€ 19.00
5-1
2531039100
ref: 5-1
CAM,GEAR SHIFT
€ 288.50
5-2
NOTUSED
ref: 5-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
6
2532211000
ref: 6
RETAINER,GEAR SHIFT CAM
2532211000
€ 14.50
7
2532311000
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532411000
ref: 8
PAWL,GEAR SHIFT NO.2
2532411000
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
0926105003
€ 1.50
10
0944004003
ref: 10
SPRING
0944004003
€ 1.50
11
2533130000
ref: 11
LIFTER,GEAR SHIFT PAWL
2533130000
€ 3.50
12
0212206108
ref: 12
SCREW
0212206108
€ 1.50
13
2534139100
ref: 13
GUIDE,GEAR SHIFT CAM
€ 8.50
14
0212206108
ref: 14
SCREW
0212206108
€ 1.50
15
2535118000
ref: 15
STOPPER,GEAR SHIFTING
2535118000
€ 5.00
16
2535211000
ref: 16
BOLT,GEAR SHAFT CAM STOPPER
2535211000
€ 4.50
17
0944005009
ref: 17
SPRING
0944005009
€ 2.00
18
0916814004
ref: 18
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
19
2551039100
ref: 19
SHAFT,GEAR SHIFT
2551039100
€ 60.50
20
0918012068
ref: 20
SPACER(12X20X15.3)
0918012068
€ 3.00
21
0944426017
ref: 21
SPRING
0944426017
€ 5.00
22
2567101000
ref: 22
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
23-1
0832121088
ref: 23-1
LOCK WASHER
0832121088
€ 2.00
24
0928512002
ref: 24
OIL SEAL
0928512002
€ 7.00
25
3772029350
ref: 25
BODY,GEAR SHIFT SWITCH
3772029350
€ 10.50
26
0944004010
ref: 26
SPRING
0944004010
€ 1.50
27
0920905011
ref: 27
PIN(5X15.5)
0920905011
€ 2.00
28
0211205128
ref: 28
SCREW
€ 2.50
29
0928026003
ref: 29
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
30
2560039101
ref: 30
LEVER ASSY,GEAR SHIFT
2560039101
€ 71.00
32
2565216500
ref: 32
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
33
0910006091
ref: 33
BOLT
€ 2.00
